XTPPIX40BH-W1000 177172 Y7-177172 EATON ELECTRIC Partition horizontal IZMX
XTPPIX40BH-W1000
177172
Y7-177172
EATON-MOELLER
Partition horizontal IZMX
XTPPIX40BH-W1000

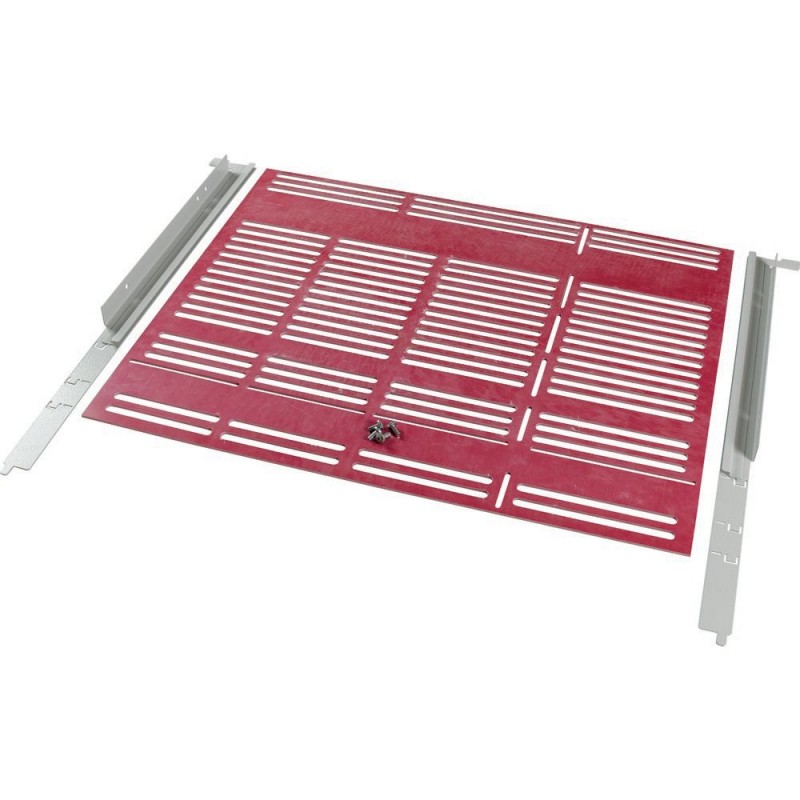

Eaton xEnergy Main LV systems LV switchgear. Partition set, IZMX40/Busbar area, horizontal, W=1000mm
horizontal partition behind the IZMX40 switch; 3-pole; section width 1000 mm; for separating the cabling box and connection space; GFRP material; ventilated; insulating
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 2b
Internal separation form 3b
Internal separation form 4b
Internal separation form 3a
Internal separation form 4a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 856 mm |
| Height (EF000040) | 33 mm |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XTPPIX40BH-W1000 Y7-177172 177172 EN_177172.pdf | 186 Kbytes |
|
