XPRCCH03508 184646 Y7-184646 EATON ELECTRIC xEnergy No Description
XPRCCH03508
184646
Y7-184646
EATON-MOELLER
xEnergy - No Description
XPRCCH03508

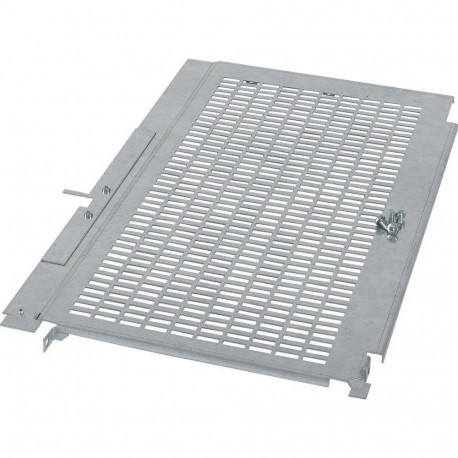

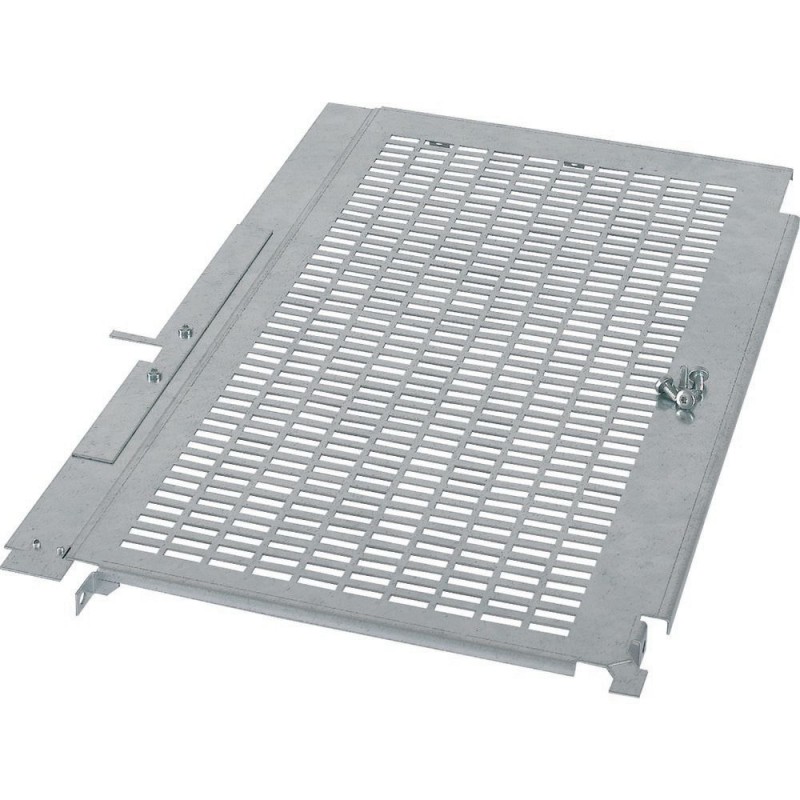

Eaton xEnergy Main LV systems LV switchgear. Horizontal partition, XR-MCCB, cabling box partition, depth: 800 mm
Horizontal partition, XR-MCCB, cabling box partition, 2 partitions required per module. If 2 modules are adjacent to each other, only 3 partitions are required, depth: 800 mm
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 550 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 380 mm |
| Height (EF000040) | 32 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | No |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPRCCH03508 Y7-184646 184646 EN_184646.pdf | 231 Kbytes |
|
