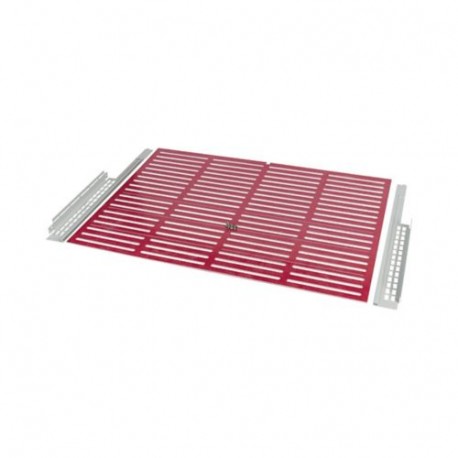

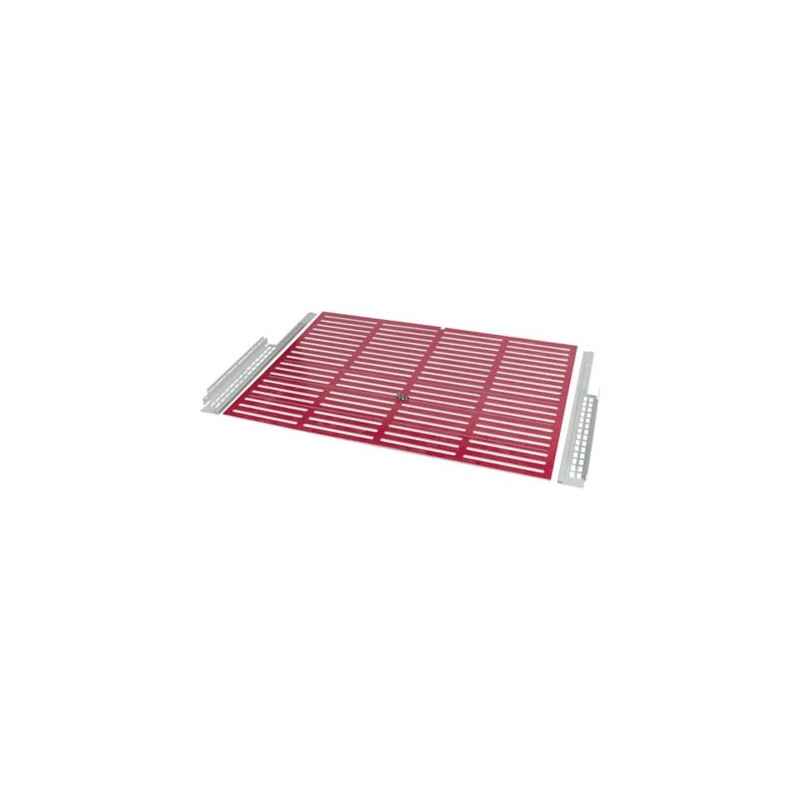

XPIXBCB-H-1004 174566 EATON ELECTRIC Horizontal partition, 2x IZMX16, width 1000 mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

XPIXBCB-H-1004 174566 EATON ELECTRIC Horizontal partition, 2x IZMX16, width 1000 mm

XPIXBCB-H-1004

174566

EATON-MOELLER

Horizontal partition, 2x IZMX16, width = 1000 mm

XPIXBCB-H-1004

Horizontal partition, 2x IZMX16, W=1000mm

More details


Enclosures

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $522.10
Unit price: $522.10

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Horizontal partition, 2x IZMX16, W=1000mm
Horizontal partition for EVEN connection type (connection on same side), partition between feeder copper conductor and connection copper conductor on main busbar when using IZMX16 shape 4, section width 1000 mm, section depth 800 mm

Technical data ETIM 7.0

Cabinet enclosures (EG000011) / Divider panel (switchgear cabinet) (EC002525)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Panel (electrical cabinet) / Divider panel (electrical cabinet) ([email protected] [AKE424014])
Modular spacing
12.5 mm
Suitable for enclosure building width
1000 mm
Suitable for enclosure building depth
600 mm
Width
950 mm
Height
550 mm
Material
Plastic
Surface finishing
Untreated
Colour
Red
RAL-number
0
With cable entry
No
Number of height units
0
With lock
No
Construction type
Assembly kit
For internal separation form 2a
No
For internal separation form 2b
No
For internal separation form 3a
No
For internal separation form 3b
No
For internal separation form 4a
Yes
For internal separation form 4b
Yes

Datasheet - PDF

▲
Title: Size: Type:
XPIXBCB-H-1004 174566 EN_174566.pdf 188 Kbytes XPIXBCB-H-1004 174566 EN_174566.pdf
