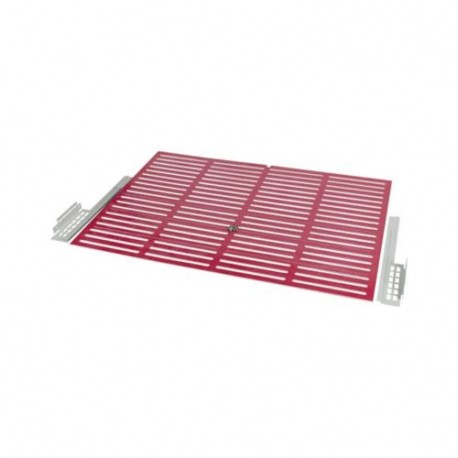

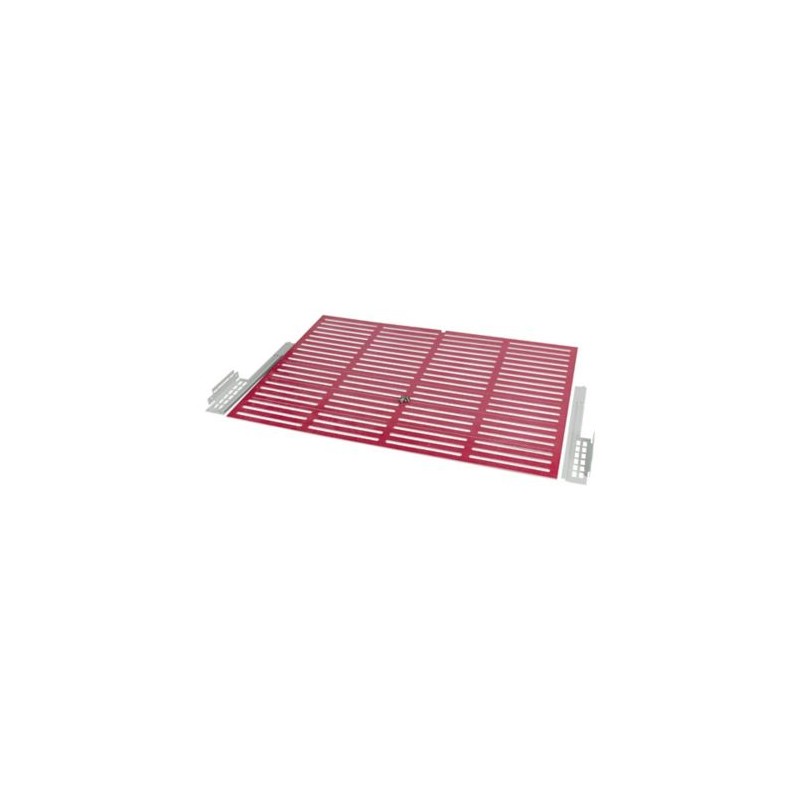

XPIXBCB-H-1002 174564 Y7-174564 EATON ELECTRIC Horizontal partition, 2x IZMX16, width 1000 mm
XPIXBCB-H-1002
174564
Y7-174564
EATON-MOELLER
Horizontal partition, 2x IZMX16, width = 1000 mm
XPIXBCB-H-1002
Eaton xEnergy Main LV systems LV switchgear. Horizontal partition, 2x IZMX16, W=1000mm, D=600mm
Horizontal partition for EVEN connection type (connection on same side), partition between feeder copper conductor and connection copper conductor on main busbar when using IZMX16 shape 4, section width 1000 mm, section depth 600 mm
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 860 mm |
| Height (EF000040) | 40 mm |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Assembly kit |
| For internal separation form 2a (EF009586) | No |
| For internal separation form 2b (EF009587) | No |
| For internal separation form 3a (EF009588) | No |
| For internal separation form 3b (EF009589) | No |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPIXBCB-H-1002 Y7-174564 174564 EN_174564.pdf | 179 Kbytes |
|
