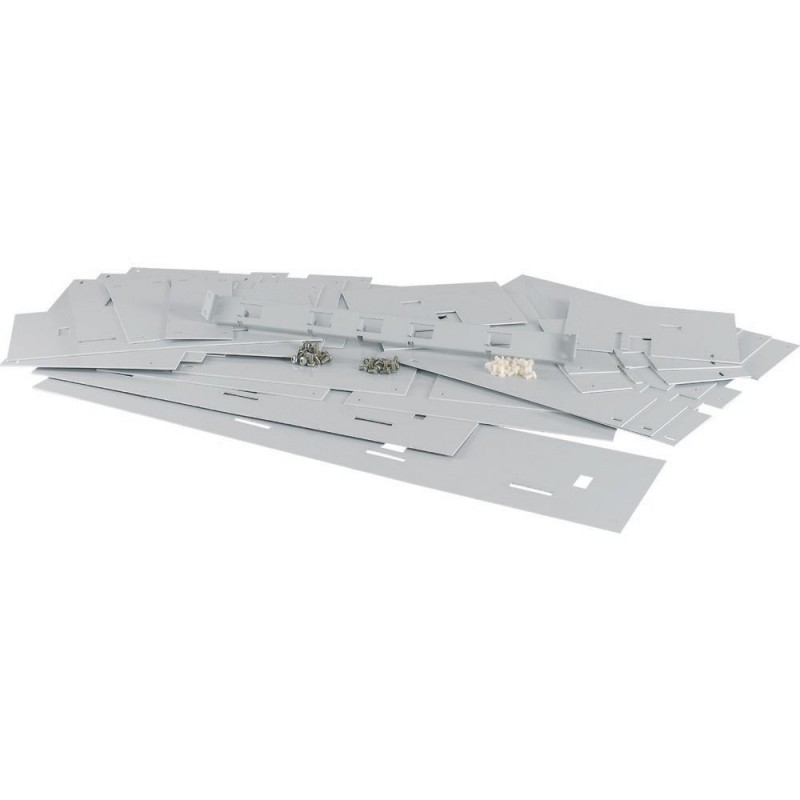

XPIX40BV3PN 178074 Y7-178074 EATON ELECTRIC Partition, connection-/BB area, IZMX40
XPIX40BV3PN
178074
Y7-178074
EATON-MOELLER
Partition, connection-/BB area, IZMX40
XPIX40BV3PN
Eaton xEnergy Main LV systems LV switchgear. Partition set, IZMX40/busbar, vertical, 3P+N
Separation for IZMX40, glass-fibre reinforced insulated material, red, vertical, 3 pole + neutral conductor
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 2a
Internal separation form 2b
Internal separation form 3a
Internal separation form 4a
Internal separation form 3b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 135 mm |
| Suitable for enclosure building depth (EF000327) | 182 mm |
| Width (EF000008) | 135 mm |
| Height (EF000040) | 333 mm |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Red |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | Yes |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPIX40BV3PN Y7-178074 178074 EN_178074.pdf | 130 Kbytes |
|
