XPIX40BCB-H-1002 180582 Y7-180582 EATON ELECTRIC Partition, connection-/BB area, IZMX40, horizontal, WxP 100..
XPIX40BCB-H-1002
180582
Y7-180582
EATON-MOELLER

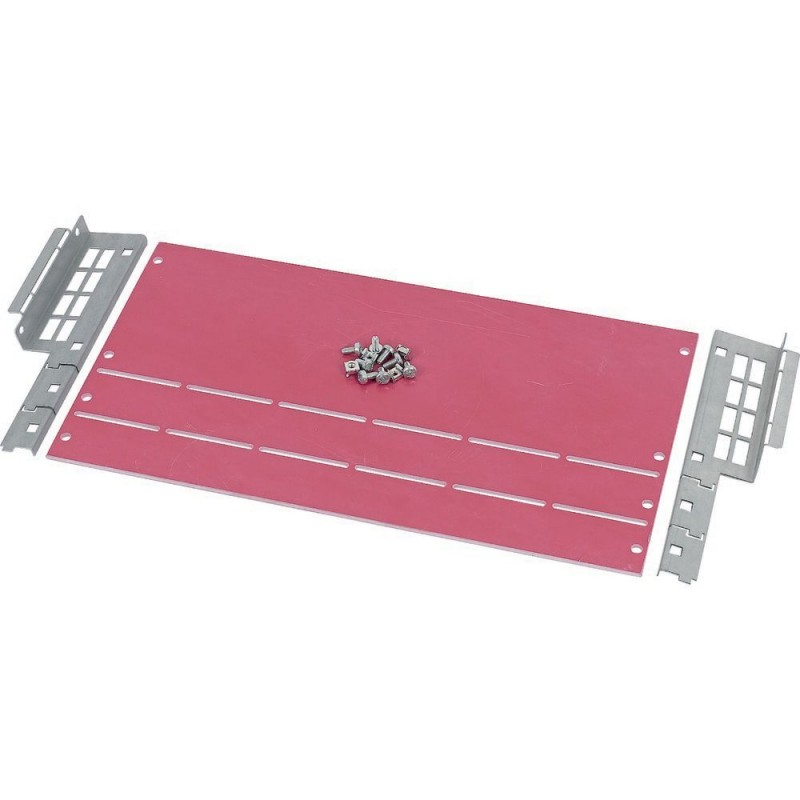

Partition, connection-/BB area, IZMX40, horizontal, WxP=1000x600mm
XPIX40BCB-H-1002
Eaton xEnergy Main LV systems LV switchgear. Partition, connection-/busbar rear area, IZMX40, horizontal, for WxD=1000x600mm
Accessory for XP sections, internal Partitions, busbar area/cable connection area partition (for IZMX40), section depth 600 mm, form 2/4, section width 1000 mm
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 2a
Internal separation form 2b
Internal separation form 3b
Internal separation form 4b
Internal separation form 3a
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 600 mm |
| Width (EF000008) | 856 mm |
| Height (EF000040) | 40 mm |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Other |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPIX40BCB-H-1002 Y7-180582 180582 EN_180582.pdf | 145 Kbytes |
|
