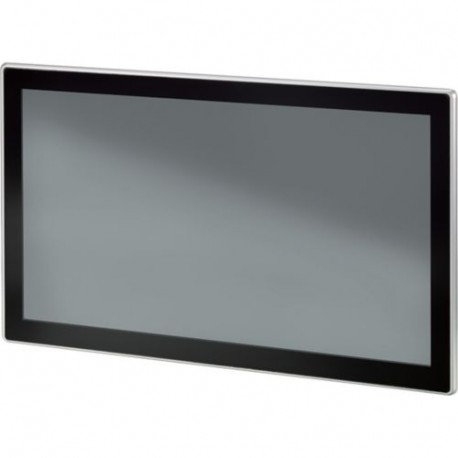

XP-503-21-A10-A00-1V 174479 EATON ELECTRIC 21 5" panel PC Multi-Touch capacitive (PCT) 2xEthernet 2xUSB3.0 1..
XP-503-21-A10-A00-1V
174479
EATON-MOELLER
21; 5" panel PC Multi-Touch capacitive (PCT); 2xEthernet; 2xUSB3.0; 1xRS232; 1xRS485; License Visual Designer included
Capacitive Multi-Touch Panel PC; 21.5"; 2 x Ethernet; 2 x USB 3.0; RS232; RS485; Licensed under Runtime Visual Designer
Panel PC with capacitive multi-touch (PCT), 21. 5", 2xEthernet, 2xUSB3.0, 1xRS232, 1xRS485, Visual Designer Runtime
The XP500 series from Eaton, developed specifically for the needs of the machine building and plant engineering industries, enhances the field of automation with the contemporary and familiar control interfaces and operating controls that are now prevalent in consumer electronics. Projected Capacitive Touch (PCT) technology provides intuitive ease of use, and the multitouch functionality allows users to press functional buttons on the screen either with multiple fingers on one hand or using two hands. Just like on modern touchpads and smartphones , the operator can zoom into and scroll across elements and documents from the integrated help system using two fingers. The high-precision sensors prevent unintended commands or machine starts. For example, critical functions can only be activated by pressing multiple control fields at the same time, significantly enhancing system safety in comparison to single-touch panels. XP500 Panel PCs run on Windows Embedded 7. The devices are available with the following three widescreen display sizes: 10.1z, 15.6z, and 21.5z. Their slim design, featuring a non-reflective glass front, delivers a modern look. Thanks to the rugged , scratch-resistant front and open device concept on the Panel PCs make them suitable for use in almost all branches of industry involved in mechanical and plant engineering.
PLC's > Panel PC
HMI Touch Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Features & Fuctions
General
MODBUS
EtherNet/IP
Climatic environmental conditions
Electrical rating
Display
System
| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 18 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of HW-interfaces industrial Ethernet (EF003020) | 2 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 1 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 2 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces other (EF003027) | 1 |
| Number of HW-interfaces SCSI (EF003138) | 0 |
| Number of HW-interfaces PS2 (EF003139) | 0 |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| Type of display (EF008244) | TFT |
| Screen diagonal (EF002032) | 21.5 inch |
| Number of pixels, horizontal (EF003099) | 1920 |
| Number of pixels, vertical (EF003100) | 1080 |
| Preinstalled operating system (EF007535) | Embedded Windows XP |
| Max. main memory (EF003123) | 4000 MB |
| Integrated keyboard (EF003141) | No |
| Number of function buttons (EF003142) | 0 |
| Number of buttons with LED (EF009259) | 0 |
| Number of system buttons (EF009260) | 0 |
| With touch screen (EF003102) | Yes |
| Mouse-cursor control integrated (EF003143) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Operating temperature (EF002393) | 0 °C |
| With hard disc (EF002000) | No |
| With optical drive (EF012515) | No |
| With floppy disc drive (EF003128) | No |
| With other storage media (EF003129) | No |
| Customer individual configuration (EF003132) | Yes |
| Number of free AGP-slots (EF003133) | 0 |
| Number of free PCI-slots (EF003134) | 0 |
| Number of free ISA-slots (EF003135) | 0 |
| Number of free PCMCIA-slots (EF003136) | 0 |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | Yes |
| Rack-assembly possible (EF007018) | No |
| Mounting type, table foot (EF007019) | No |
| Mounting type, gallows mounting (EF007017) | No |
| Suitable for safety functions (EF001597) | No |
| Width of the front (EF003651) | 536 mm |
| Height of the front (EF003652) | 328 mm |
| Built-in depth (EF000218) | 75.5 mm |
