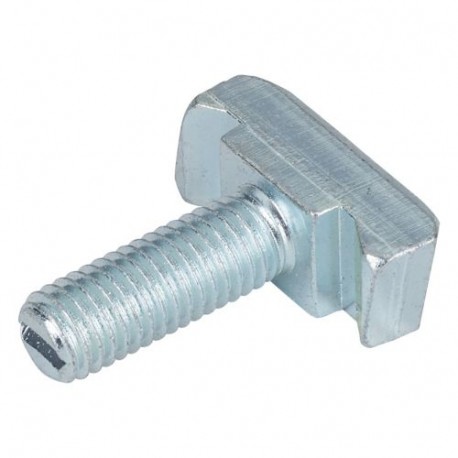

XNNHLF-M10X30 177088 Y7-177088 EATON ELECTRIC xEnergy No Description
XNNHLF-M10X30
177088
Y7-177088
EATON-MOELLER
50
xEnergy - No Description
XNNHLF-M10X30

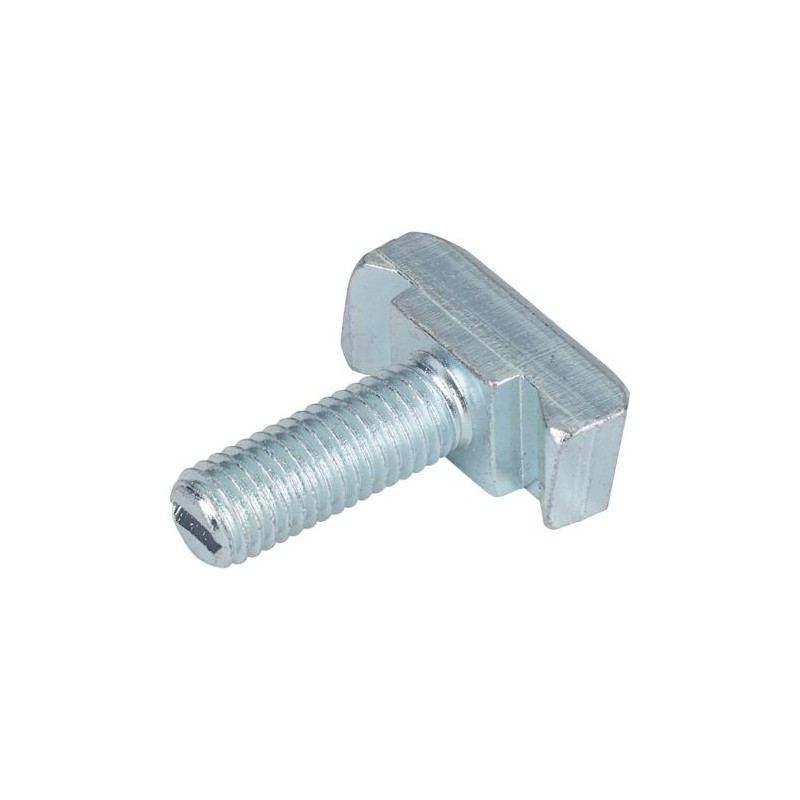

Eaton xEnergy Main LV systems LV switchgear. Screw for for anchoring rail M10x30
Screw for for anchoring rail M10x30
Fasteners and anchoring systems > Bolt
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Other
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Material quality (EF001257) | 8.8 (steel) |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Head form (EF000012) | Flat head |
| Countersunk head (EF013941) | No |
| Dimension square neck bolt (EF015588) | 0 mm |
| Thread size (metric) (EF003563) | 10 |
| Thread size (imperial) (EF003715) | Other |
| Length to bottom side head (EF013623) | 38 mm |
| Thread length (EF000368) | 38 mm |
| Full thread (EF009106) | No |
| Screwing system (EF000013) | Other |
| Wrench width (EF000177) | 0 mm |
| Pitch thread (EF003712) | 1 mm |
| Thread per inch (EF012132) | 0 |
| Thread type (EF001758) | Metric |
| Left-handed thread (EF022707) | No |
| Head diameter (EF001001) | 0 mm |
| Head height (EF025409) | 0 mm |
| With flange (EF005729) | No |
| With nut (EF005059) | No |
| With washer (EF005076) | No |
| Self-locking (EF006319) | No |
| RAL-number (EF000116) | 7035 |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XNNHLF-M10X30 Y7-177088 177088 EN_177088.pdf | 133 Kbytes |
|
