XNNGFS-M5X8 177621 Y7-177621 EATON ELECTRIC Lens head screw M5x8 TORX25 DIN7500, form C, zinc plated
XNNGFS-M5X8
177621
Y7-177621
EATON-MOELLER

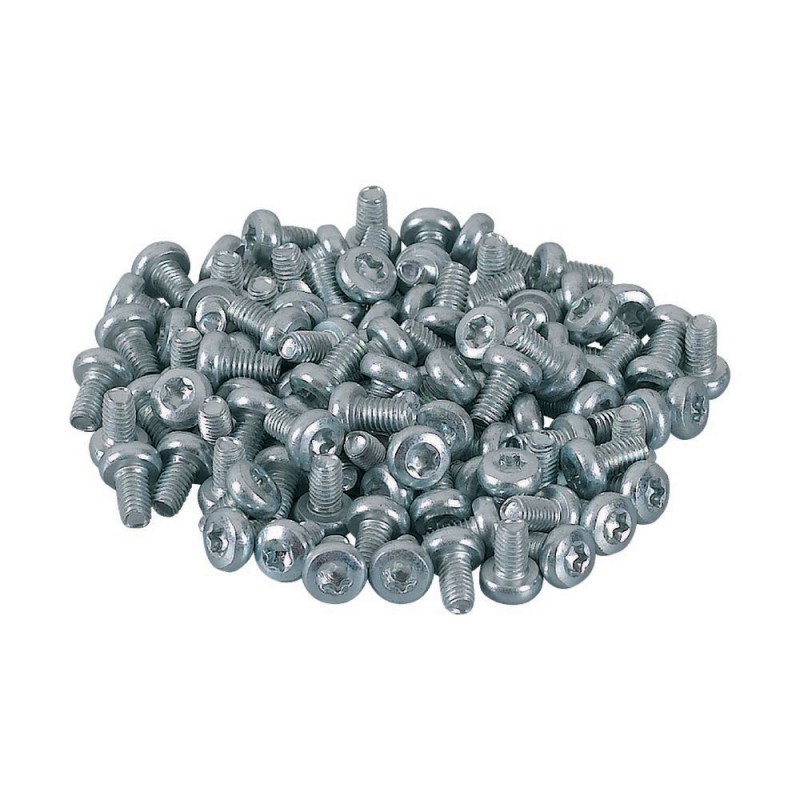

Lens head screw M5x8 TORX25 DIN7500, form C, zinc plated
XNNGFS-M5X8
Eaton xEnergy Main LV systems LV switchgear. Lens head screw M5x8 TORX25 DIN7500, form C, zinc plated
Fixing screws for the xEnergy power distribution system. Screw, self-tapping, rounded head, TORX, form C, zinc coated, M5x8, standard pack 100 pcs.
Fasteners and anchoring systems > Bolt
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
#5
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Material quality (EF001257) | Other |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Head form (EF000012) | Rounded head |
| Countersunk head (EF013941) | No |
| Dimension square neck bolt (EF015588) | 0 mm |
| Thread size (metric) (EF003563) | 5 |
| Thread size (imperial) (EF003715) | #5 |
| Length to bottom side head (EF013623) | 10 mm |
| Thread length (EF000368) | 10 mm |
| Full thread (EF009106) | No |
| Screwing system (EF000013) | Torx |
| Wrench width (EF000177) | 0 mm |
| Pitch thread (EF003712) | 1 mm |
| Thread per inch (EF012132) | 0 |
| Thread type (EF001758) | Metric |
| Left-handed thread (EF022707) | No |
| Head diameter (EF001001) | 0 mm |
| Head height (EF025409) | 0 mm |
| With flange (EF005729) | No |
| With nut (EF005059) | No |
| With washer (EF005076) | No |
| Self-locking (EF006319) | No |
| RAL-number (EF000116) | 7035 |
| Colour (EF000007) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XNNGFS-M5X8 Y7-177621 177621 EN_177621.pdf | 201 Kbytes |
|
