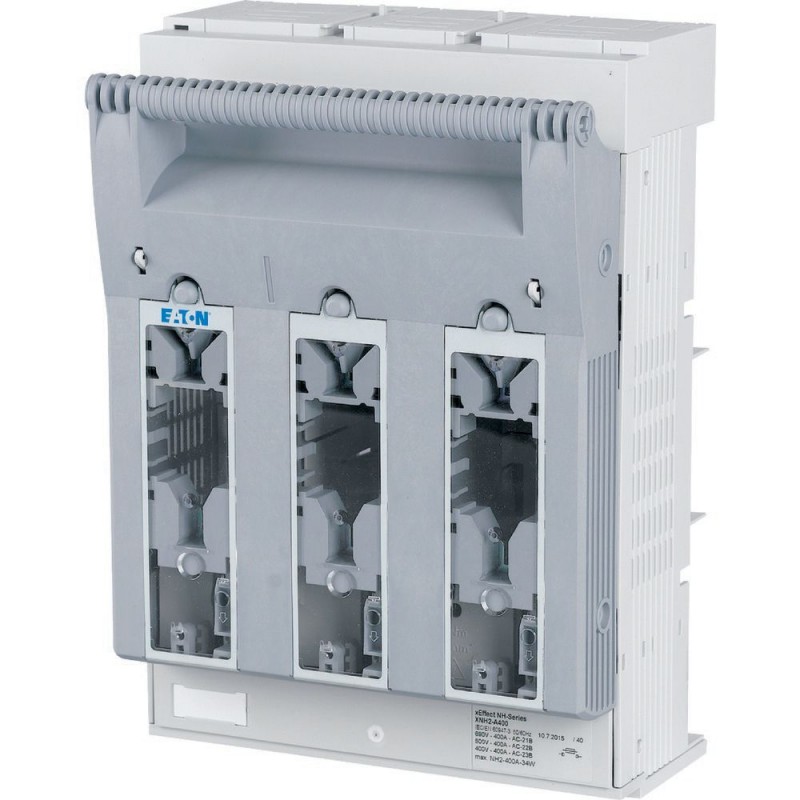

XNH2-A400 183057 1624032 EATON ELECTRIC NH fuse-switch 3p flange connection M10 max. 240 mm² mounting plate ..
XNH2-A400
183057
1624032
EATON-MOELLER
NH fuse-switch 3p flange connection M10 max. 240 mm²; mounting plate; NH2
XNH2-A400
Low-voltage industrial components > Fuse switch disconnector
Industrial Fuse Bases
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲NH fuse-switch 3p flange connection M10 max. 240 mm²; mounting plate; NH2
NH fuse switch-disconnector 3 pole with M10 flat terminal max. 240 mm²; mounting plate; for NH2 fuse-links; optionally lockable with XNH-XLOCK and padlock
General specifications
Product name
Eaton xEffect XNH device for mounting plate
Part no.
XNH2-A400
EAN
4015081779840
Product Length/Depth
306 millimetre
Product height
134 millimetre
Product width
210 millimetre
Product weight
3.205 kilogram
Compliances
RoHS conform
Certifications
IEC/EN 60947-3
Product Tradename
xEffect
Product Type
XNH device for mounting plate
Product Sub Type
None
Delivery program
Type
Basic device
Color
Gray
Number of poles
Three-pole
Actuator type
Cover grip
Technical Data - Electrical
Voltage test
Yes, sliding inspection windows
Voltage rating at AC
400 V (AC-23B)
500 V (AC-22B)
690 V (AC-21B)
500 V (AC-22B)
690 V (AC-21B)
Voltage rating at DC
440 V (DC-22B)
Rated operating voltage (Ue) at AC - max
690 V
Rated insulation voltage (Ui)
800 V AC
Rated impulse withstand voltage (Uimp)
8 kV
Rated uninterrupted current (Iu)
400 A
Rated conditional short-circuit current (Iq)
120 kA
Rated operation current (Ie)
400 A
Rated operational current
400 A (AC-23B)
400 A (AC-21B)
400 A (AC-22B)
400 A (DC-22B)
400 A (AC-21B)
400 A (AC-22B)
400 A (DC-22B)
Rated short-time withstand current (Icw)
3 kA
Rated conditional short-circuit rating
120 kA (500 V)
100 kA (690 V)
100 kA (690 V)
Conditioned rated short-circuit current Iq
120 kA
Frequency rating
40 Hz - 60 Hz
Frequency rating of contacts
40 Hz - 60 Hz
Creepage resistance
CTI 600
Power rating at AC-23, 400 V
0 kW
Rated operation power at AC-23, 400 V
0 kW
Permitted power loss per fuse link - max
34 W
Electrical connection type of main circuit
Screw connection
Operating altitude without derating - max
2000 mm
Overvoltage category
III
Pollution degree
3
Direction of incoming supply
As required
Lifespan, electrical
200 operations
Technical Data - Mechanical
Activation type
Dependent manual activation
Actuator position
Front side
Size
NH2 fuse
Mounting method
Mounting plate
DIN rail
DIN rail
Mounting position
Vertical or horizontal
Material
Polyamide
Degree of protection
IP2XC (contact protection, XNH installed)
IP20 (operating status, XNH installed)
IP10 (handle cover open, XNH installed)
IP20 (operating status, XNH installed)
IP10 (handle cover open, XNH installed)
Degree of protection (front side)
Other
Connection type
Flat connection
Terminal capacity (copper band)
10 mm x 16 mm x 0.8 mm (10x) at box terminal
Terminal capacity (copper busbar)
40 mm x 10 mm
Bolt diameter at flange connection: M10
Max. 48 mm cable lug width at flange connection
Bolt diameter at flange connection: M10
Max. 48 mm cable lug width at flange connection
Terminal capacity (copper strip)
16 mm x 0.8 mm (6x) - 32 mm x 1 mm (10x) at box terminal
Terminal capacity (stranded cable)
120 mm² - 240 mm² at clamp-type terminal
95 mm² - 300 mm² (1x) at box terminal
120 mm² - 150 mm² (2x) at double clamp-type terminal
25 mm² - 240 mm² at box terminal
95 mm² - 300 mm² (1x) at box terminal
120 mm² - 150 mm² (2x) at double clamp-type terminal
25 mm² - 240 mm² at box terminal
Cable entry type
Other
Locking facility
Yes, optional
Suitable for fuses
NH2
Lifespan, mechanical
800 operations
Design verification as per IEC/EN 61439 - technical data
Rated operational current for specified heat dissipation (In)
400 A
Equipment heat dissipation, current-dependent
22 W
Heat dissipation per pole, current-dependent
7.3 W
Heat dissipation at 80% without fuses
17.8 W
Ambient operating temperature details
Ambient temperature range: -25 °C - 55 °C
Heat deflection temperature
125 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Is the panel builder's responsibility.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Ui = 800 V AC
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features
Standard sealable
Halogen free
Halogen free
Flammability characteristics (UL)
Self-extinguishing (UL 94)
Special features
Current paths of electrolytic copper, silver-plated
Permanent operation (rated operating mode)
Permanent operation (rated operating mode)
Suitable for
Ground mounting
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector (ecl@ss13-27-37-14-01 [AKF058018])
Version as main switch
No
Version as safety switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
400 A
Rated operation power at AC-23, 400 V
0 kW
Conditioned rated short-circuit current Iq
120 kA
Rated short-time withstand current lcw
3 kA
Suitable for fuses
NH2
Number of poles
3
With error protection
No
Type of electrical connection of main circuit
Screw connection
Cable entry
Other
Equipped with connectors
No
Suitable for floor mounting
Yes
Suitable for front mounting
No
Suitable for busbar mounting
No
Type of control element
Cover grip
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
Other
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| XNH2-A400 1624032 183057 EN_183057.pdf | 119 Kbytes |
 |
