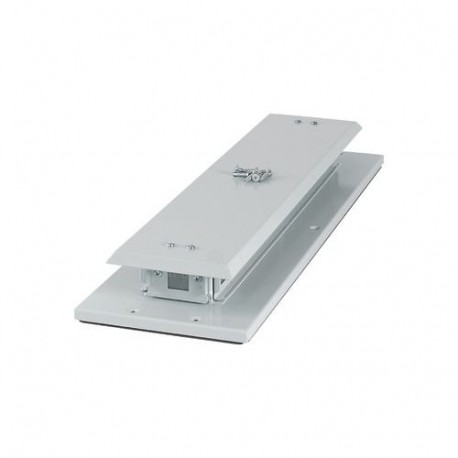

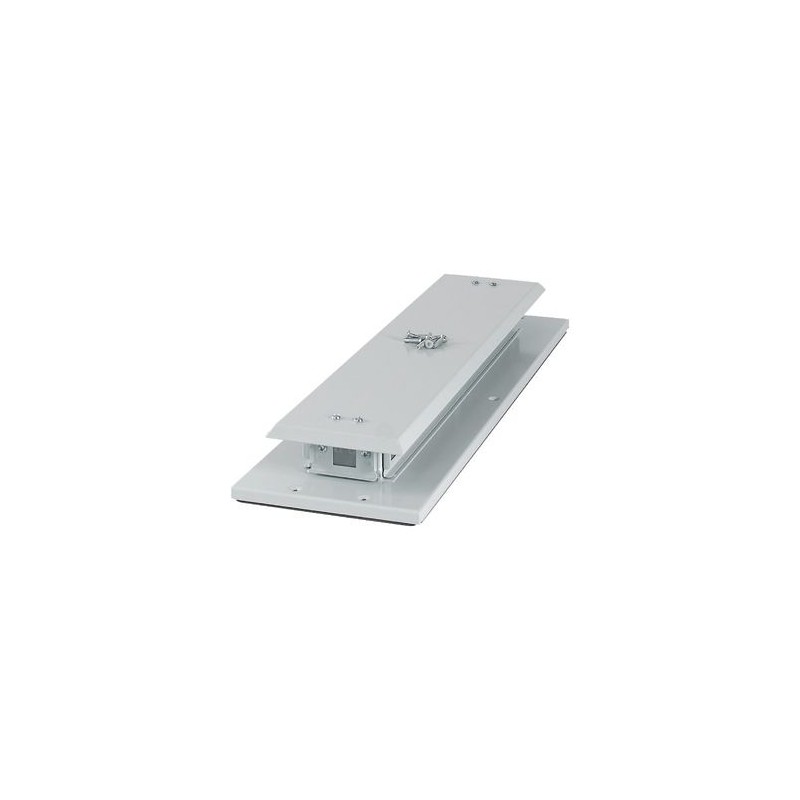

XLST4854 196149 Y7-196149 EATON ELECTRIC ceiling panel, IP42, for WxD 850 x 400mm, grey
XLST4854
196149
Y7-196149
EATON-MOELLER
ceiling panel, IP42, for WxD = 850 x 400mm, grey
XLST4854
Eaton xEnergy Light LV systems LV switchgear. Top Panel, IP42, for WxD = 850 x 400mm, grey
Canopy, ventilated with offset screen frame, two piece, including mounting material, steel plate, powder-spray painted in RAL 7035 structure finish, width 850mm, depth 400mm
Cabinet enclosures > Top-/floor cover element (enclosure/switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Bottom planking
| Feature Name | Feature Value |
|---|---|
| Suitable for roof planking (EF009584) | Yes |
| Suitable for bottom planking (EF009585) | Yes |
| Width (EF000008) | 757 mm |
| Height (EF000040) | 282 mm |
| Depth (EF000049) | 81 mm |
| Suitable for enclosure building width (EF000326) | 850 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Powder coated |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| With de-aeration (EF001161) | Yes |
| Suitable for outdoor set-up (EF005774) | No |
| With cable entry (EF000325) | No |
