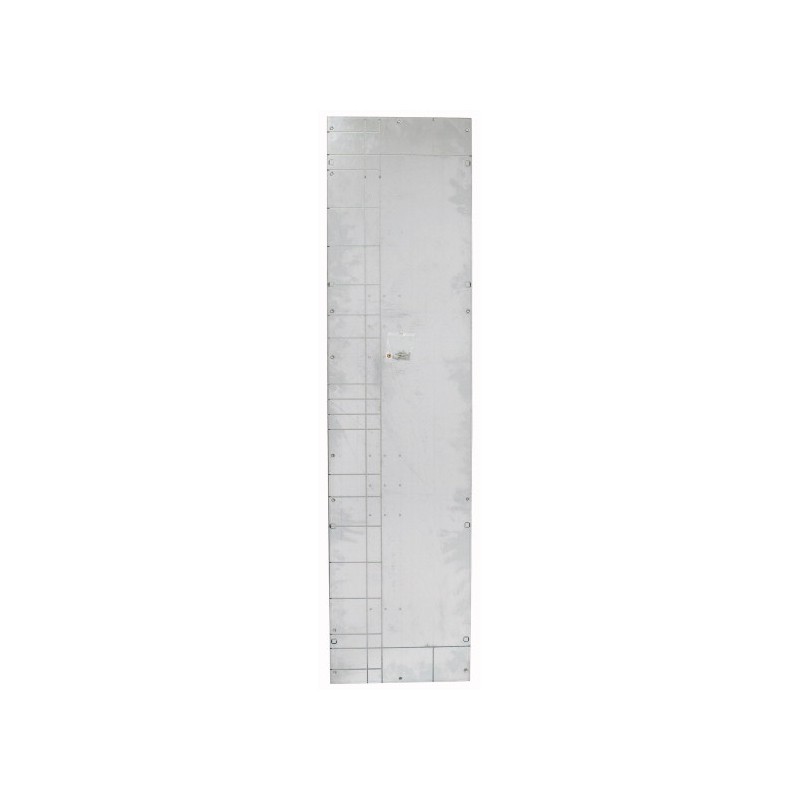

XLSPP144 188022 Y7-188022 EATON ELECTRIC Partition side wall for HxP 1400 x 400mm, IP20, galvanized
XLSPP144
188022
Y7-188022
EATON-MOELLER
Partition side wall for HxP = 1400 x 400mm, IP20, galvanized
XLSPP144
Partition side wall suitable for section height 1400mm, depth 400mm, material thickness 1.5 mm, IP20, galvanized
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Technical data ETIM 7.0
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 400 mm |
| Suitable for enclosure building depth (EF000327) | 400 mm |
| Width (EF000008) | 282 mm |
| Height (EF000040) | 1307 mm |
| Material (EF002169) | Steel |
| Surface finishing (EF006569) | Galvanised |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XLSPP144 Y7-188022 188022 EN_188022.pdf | 120 Kbytes |
|
