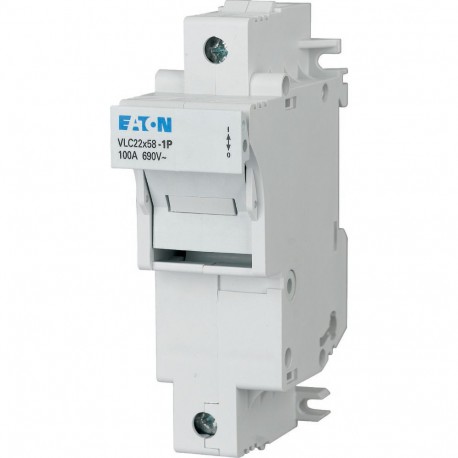

VLC22-1P 285366 EATON ELECTRIC Base fuses, 100A, 1P 22x58
VLC22-1P
285366
EATON-MOELLER
Base fuses, 100A, 1P 22x58
The flash function indicates the blowing of fuse link. rated operating voltage 690 VAC, suitable for cylindrical fuse links with utilization class gG (gL), aM, can be sealed, double conductor run possible on both sides
Low-voltage industrial components > Fuse switch disconnector
Modular Switchgear – Others and Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | No |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 100 A |
| Rated short-time withstand current lcw (EF007050) | 1.2 kA |
| Number of poles (EF001391) | 1 |
| With error protection (EF007384) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Equipped with connectors (EF011696) | No |
| Suitable for floor mounting (EF007243) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | No |
| Type of control element (EF006976) | Rocker lever |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
| Degree of protection (IP), front side (EF003118) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
