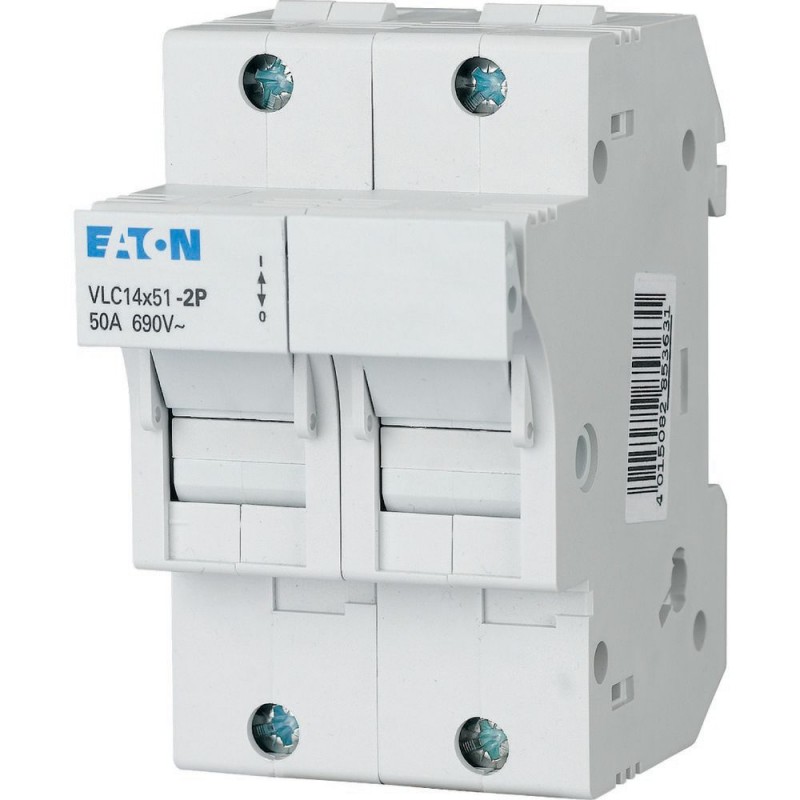

VLC14-2P 285363 EATON ELECTRIC Fuse switch-disconnector, 50A, 2p, 14x51 size View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VLC14-2P 285363 EATON ELECTRIC Fuse switch-disconnector, 50A, 2p, 14x51 size

VLC14-2P

285363

EATON-MOELLER

Fuse switch-disconnector, 50A, 2p, 14x51 size

The flash function indicates the blowing of fuse link. rated operating voltage 690 VAC, suitable for cylindrical fuse links with utilization class gG (gL), aM, can be sealed, double conductor run possible on both sides

More details


Low-voltage industrial components > Fuse switch disconnector

Modular Switchgear – Others and Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Fuse switch-disconnector, 50A, 2p, 14x51 size
The flash function indicates the blowing of fuse link. rated operating voltage 690 VAC, suitable for cylindrical fuse links with utilization class gG (gL), aM, can be sealed, double conductor run possible on both sides
[

Delivery program

For cylindrical fuses
Up to 50 A
Without flashing function
Size
14 x 51
Number of poles
2 pole
,

Technical data

Electrical
Number of poles
1P
1P+N
2P
3P
3P+N
Rated operating voltage [Ue]
690 V AC
Rated operational current [Ie]
50 A
Rated conditional short-circuit current [Ie]
100
Rated frequency [f]
50 Hz
Utilization category
AC 22 B
Rated impulse withstand voltage [Uimp]
8 kV
Fuse
gG: 5, aM: 3 W
Mechanical
Standard front dimension
45 mm
Enclosure height
94 mm
Mounting width
27/per pole mm
Weight
1P 100
1P+N 222
2P 201
3P 308
3P+N 437 g
Mounting
Quick attachment for top-hat rail IEC/EN 60715
Degree of protectionIntegrated
IP20
Terminals
Lift terminals
Terminal capacitiesSolid
1.5 - 35 mm2
Temperature range
-25 … +60 °C
Specified tightening torque for terminal screwsTightening torque
max. 2 Nm
Overvoltage category/pollution degree
-/1
Track resistance
CTI 400
,

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
50 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
10 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
0
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Fuse switch disconnector (EC001040)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Off-load switch, circuit breaker, control switch / Fuse switch disconnector ([email protected] [AKF058013])
Version as main switch
No
Version as safety switch
Yes
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
50 A
Rated operation power at AC-23, 400 V
0 kW
Conditioned rated short-circuit current Iq
100 kA
Rated short-time withstand current lcw
0.6 kA
Suitable for fuses
Number of poles
2
With error protection
No
Type of electrical connection of main circuit
Screw connection
Cable entry
Equipped with connectors
Suitable for ground mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for busbar mounting
No
Type of control element
Rocker lever
Position control element
Front side
Motor drive optional
No
Motor drive integrated
No
Version as emergency stop installation
No
Degree of protection (IP), front side
IP20
,

Dimensions

]

ETIM for 285363 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 50 A
Rated short-time withstand current lcw (EF007050) 0.6 kA
Number of poles (EF001391) 2
With error protection (EF007384) No
Type of electrical connection of main circuit (EF006819) Screw connection
Equipped with connectors (EF011696) No
Suitable for floor mounting (EF007243) Yes
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) No
Type of control element (EF006976) Rocker lever
Position control element (EF009410) Front
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No
Degree of protection (IP), front side (EF003118) IP20

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
VLC14-2P 285363 285363_EN.pdf 192 Kbytes VLC14-2P 285363 285363_EN.pdf
