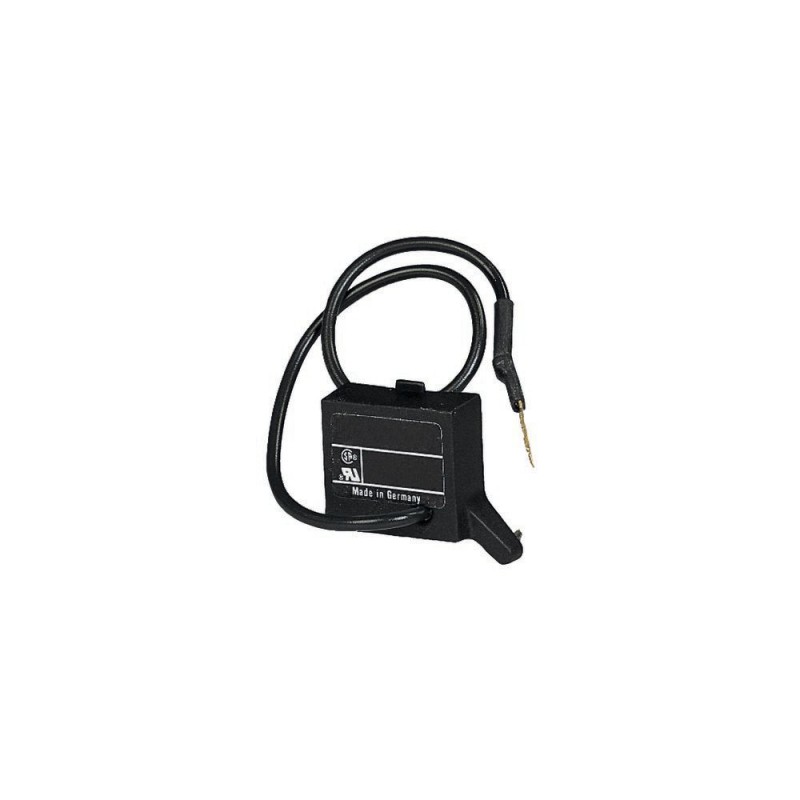

VGDILE250-C 230266 XTMCXVSCB EATON ELECTRIC Varistor suppressor, 250VAC, for DILE, spring clamp connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

VGDILE250-C 230266 XTMCXVSCB EATON ELECTRIC Varistor suppressor, 250VAC, for DILE, spring clamp connection

VGDILE250-C

230266

XTMCXVSCB

EATON-MOELLER

10

Varistor suppressor, 250VAC, for DILE, spring clamp connection

Varistor suppressor module; 250 V AC; Snap-in connection; For DILE contactor...

Varistor suppressor circuit, Accessories: Suppressor circuit, Description: Varistor suppressor, Actuating voltage: Us 110 - 250 AC V, For use with: DILE…-C

More details


Low-voltage industrial components > Surge protection module

KDIL Accessories

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete.

Go to successor article: RCDILE250-C 230268

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Varistor suppressor, 250VAC, for DILE, spring clamp connection
Alternate Catalog No.
XTMCXVSCB
Varistor suppressor circuit, Accessories: Suppressor circuit, Description: Varistor suppressor, Actuating voltage: Us 110 - 250 AC V, For use with: DILE…-C
[

Delivery program

Accessories
Suppressor circuit
Description
Varistor suppressor
Actuating voltage [Us]
110 - 250 AC V
Contact sequence
For use with
DILE…-C
Instructions
For AC operation contactors 50 - 60 Hz.
The suppressor is fitted as standard in DC operated contactor relays.
Note drop-out delay
,

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+50 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Surge protection module (EC000683)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Contactor (LV) / Component for protective circuit ([email protected] [AKF019013])
Function
Varistor (voltage-sensitive resistor)
Rated control supply voltage Us at AC 50HZ
250 - 250 V
Rated control supply voltage Us at AC 60HZ
250 - 250 V
Rated control supply voltage Us at DC
0 - 0 V
Voltage type for actuating
AC
With LED indication
No
,

Approvals

Product Standards
IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.
E29096
UL Category Control No.
NLDX
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Specially designed for North America
No
,

Dimensions

DILE-... + VGDILE...
]

ETIM for 230266 Low-voltage industrial controls and switchgear (EC000683)
Feature Name Feature Value
