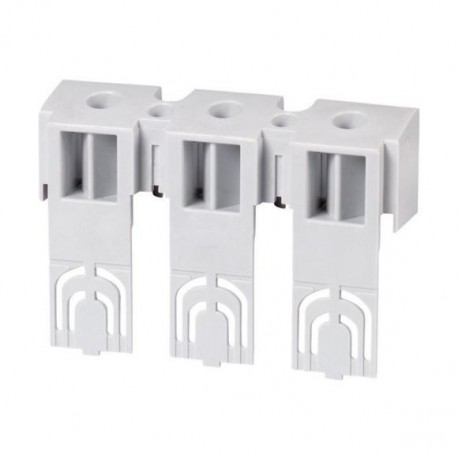

+NZM2-XKSFAO 108269 EATON ELECTRIC Terminal cover, top 3p, knockout
+NZM2-XKSFAO
108269
EATON-MOELLER
Terminal cover, top 3p, knockout. Can only be sold assembled.
+NZM2-XKSFAO
Terminal cover, top 3p, knockout
Circuit Breakers NZM Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Terminal cover, top 3p, knockout
General specifications
Product name
Eaton Moeller series NZM connection type
Part no.
+NZM2-XKSFAO
EAN
4015081079056
Product Length/Depth
72 millimetre
Product height
25 millimetre
Product width
102 millimetre
Product weight
0.036 kilogram
Compliances
IEC
RoHS conform
RoHS conform
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Connection type
Delivery program
Type
AccessoryTerminalTerminal cover
Number of poles
Three-pole
Frame
NZM2
Used with
DS7-34…SX200…
NZM2, PN2, N(S)2
DS7-34…SX160…
DS6-340-75K…110K
DS7-34…SX135…
NZM2, PN2, N(S)2
DS7-34…SX160…
DS6-340-75K…110K
DS7-34…SX135…
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
