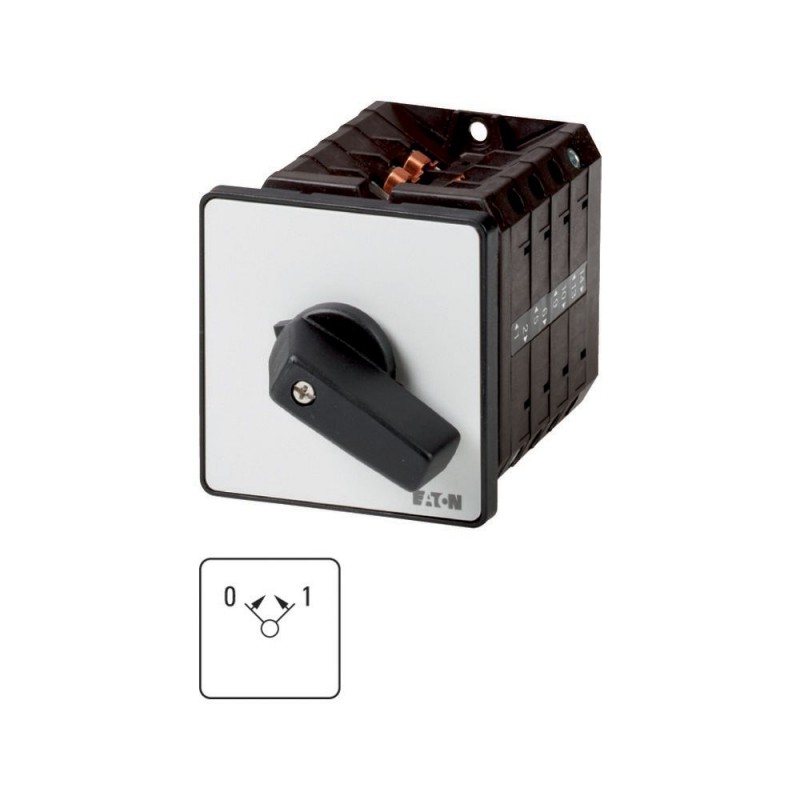

T5B-1-8/E 094301 Y7-94301 EATON ELECTRIC ON-OFF button, Contacts: 2, 63 A, front plate: 0 1, 45 °, momentary..
T5B-1-8/E
094301
Y7-94301
EATON-MOELLER
ON-OFF button, Contacts: 2, 63 A, front plate: 0><1, 45 °, momentary, flush mounting
Push-button switch ON-OFF; 2-pole; 63; Plate indicator: 0><1; 45 °; Return; flush Mount
Eaton Moeller® series T5B ON-OFF button, T5B, 63 A, flush mounting, 1 contact unit(s), Contacts: 2, 45 °, momentary, With 0 (Off) position, with spring-return from both directions, 0><1, Design number 8
ON OFF button, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5B, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: momentary, With 0 (Off) position, with spring-return from both directions, 1 contact unit(s), Rated uninterrupted current: Iu= 63 A, front plate: 0><1
Low-voltage industrial components > Control switch
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
CSA-C22.2 No. 94
IEC/EN 60947
VDE 0660
CSA-C22.2 No. 60947-4-1-14
CSA File No.: 012528
IEC/EN 60947-3
CSA
UL File No.: E36332
CE
UL
UL 60947-4-1
CSA Class No.: 3211-07
IEC/EN 60204
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | On/Off switch |
| Number of poles (EF001391) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Number of switch positions (EF000231) | 1 |
| With zero (off) position (EF001416) | Yes |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 88x88 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| T5B-1-8/E Y7-94301 094301 EN_096876.pdf | 1 Mbytes |
|
