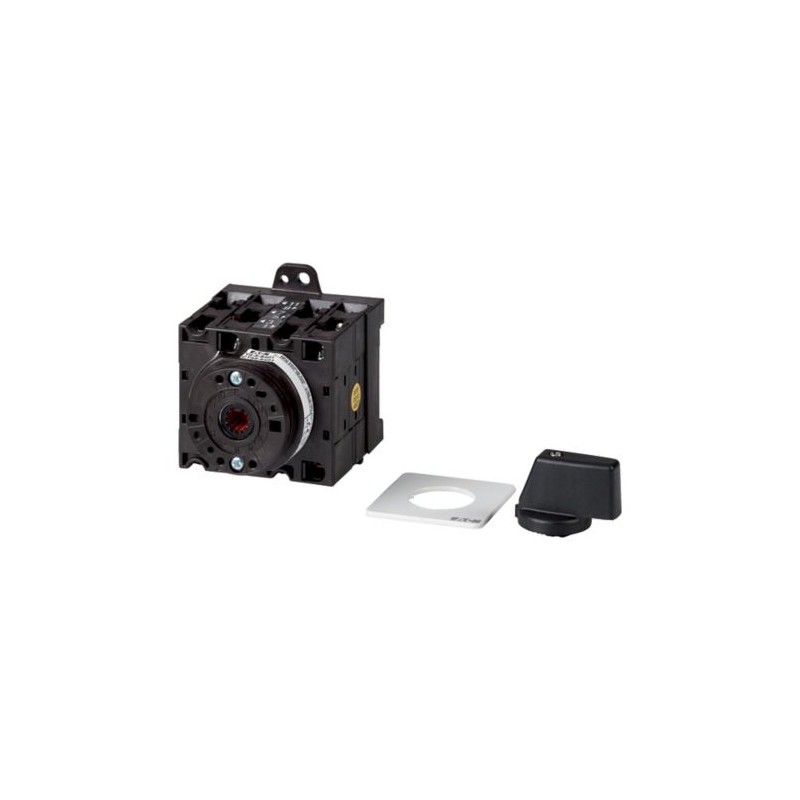

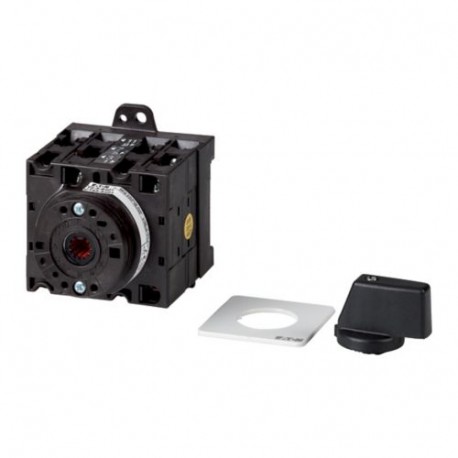

T3-10-SOND*/XZ 907911 Y7-907911 EATON ELECTRIC Non-standard switch, T3, 32 A, rear mounting, Basic switch, 1..
T3-10-SOND*/XZ
907911
Y7-907911
EATON-MOELLER
Non-standard switch, T3, 32 A, rear mounting, Basic switch, 10 contact unit(s)
T3-10-SOND*/XZ
Eaton Moeller® series T3 Non-standard switch, T3, 32 A, rear mounting, Basic switch, 10 contact unit(s)
Non-standard switch, Product range: Non-standard switch, Part group reference: T3, Notes: customized version according to form, Design: rear mounting, Basic switch, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 10 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3
Low-voltage industrial components > Switch disconnector
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | false |
| Version as maintenance-/service switch (EF006986) | false |
| Version as safety switch (EF006985) | false |
| Version as emergency stop installation (EF006959) | false |
| Version as reversing switch (EF009408) | false |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 32 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Rated operation power at AC-3, 400 V (EF001364) | 11 kW |
| Rated short-time withstand current lcw (EF007050) | 0.65 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 15 kW |
| Switching power at 400 V (EF009166) | 15 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 1 kA |
| Number of poles (EF001391) | |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | false |
| Motor drive integrated (EF006697) | false |
| Voltage release optional (EF007491) | false |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | false |
| Suitable for front mounting centre (EF007248) | false |
| Suitable for distribution board installation (EF007262) | false |
| Suitable for intermediate mounting (EF007264) | true |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Short thumb-grip |
| Interlockable (EF006281) | false |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | false |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
| Width (EF000008) | 61 mm |
| Height (EF000040) | 54 mm |
| Depth (EF000049) | 155 mm |
| Width in number of modular spacings (EF002950) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| T3-10-SOND*/XZ Y7-907911 907911 ES_014091.pdf | 1 Mbytes |
|
