T0-6-8034/E 015624 Y7-15624 EATON ELECTRIC Voltage current measuring switch, Contacts: 11, 20 A, 3 converter..
T0-6-8034/E
015624
Y7-15624
EATON-MOELLER

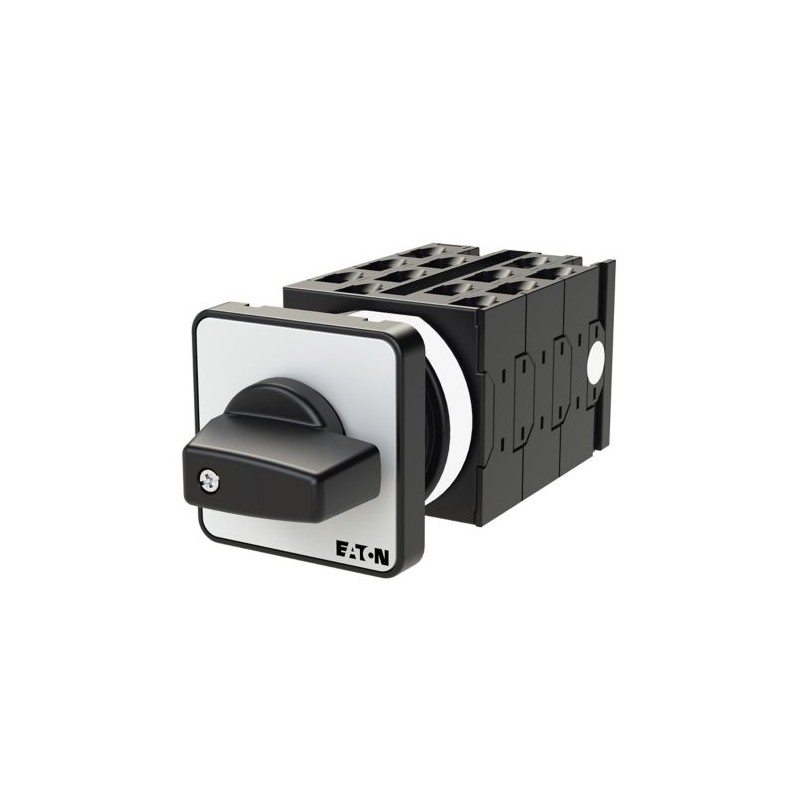

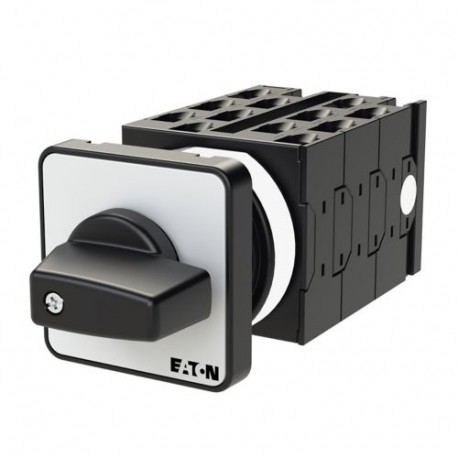

Voltage current measuring switch, Contacts: 11, 20 A, 3 converters, front plate: 1-2-3-4, 90 °, maintained, flush mounting
Switch for measurement of voltage and current, Contacts: 11, 20, 3 converters, front plate: 1-2-3-4, 90 °, maintained, flush mounting
Eaton Moeller® series T0 Voltage current measuring switch, T0, 20 A, flush mounting, 6 contact unit(s), Contacts: 11, 90 °, maintained, Without 0 (Off) position, 1-2-3-4, Design number 8034
Cam switch according to IEC/EN60947, size T0, installation form, front plate 48x48, degree of protection Front IP65 with black thumb grip, rated uninterrupted current Iu 20A, rated operating voltage Ue 690V, deliverable accessories according to catalog information cam switch T. General designs: insulation-material add-on housing, flush mounting, center mounting, rear mounting IVS service distribution board mounting.
Low-voltage industrial components > Voltmeter selector switch
Disconnectors and Cam Switches
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60947-3
CSA
CSA Class No.: 3211-05
IEC/EN 60947
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
VDE 0660
UL 60947-4-1
UL Category Control No.: NLRV
CSA File No.: 012528
CSA-C22.2 No. 94
UL
IEC/EN 60204
| Feature Name | Feature Value |
|---|---|
| Measurement between phases possible (EF001145) | Yes |
| Measurement between phase and neutral conductor possible (EF001144) | Yes |
| With zero (off) position (EF001416) | No |
| Device construction (EF008240) | Front installation |
| Modular version (EF001126) | No |
| With control element (EF001538) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SAFE SWITCHING EN.pdf | 935 Kbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| T0-6-8034/E Y7-15624 015624 ES_009128.pdf | 980 Kbytes |
|
