T0-3-15683/I2H/MBS/SVB-SW 182434 Y7-182434 EATON ELECTRIC Main switch, 3p+2S+1Ö,20A,controlled stop function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

T0-3-15683/I2H/MBS/SVB-SW 182434 Y7-182434 EATON ELECTRIC Main switch, 3p+2S+1Ö,20A,controlled stop function..

T0-3-15683/I2H/MBS/SVB-SW

182434

Y7-182434

EATON-MOELLER

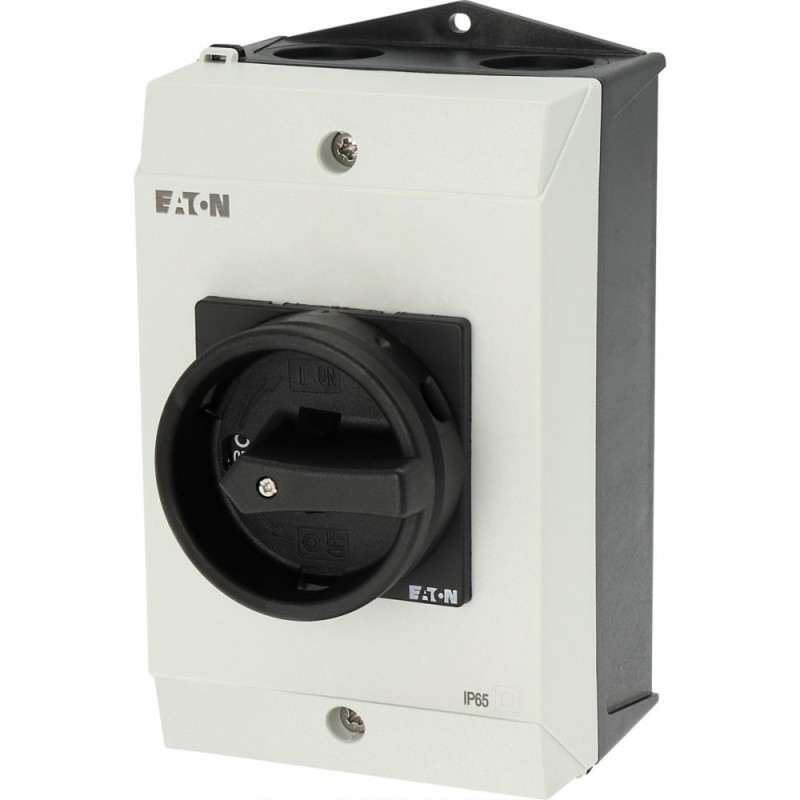

Main switch, 3p+2S+1Ö,20A,controlled stop function,90 °,lockable in the 0 (Off) position,surface mount.,hard knockout version,with mounting plate scr.

T0-3-15683/I2H/MBS/SVB-SW

Main switch, T0, 20 A, surface mounting, 3 contact unit(s), 3 pole, 2 N/O, 1 N/C, STOP function, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen

Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: hard knockout version, with assembly sheet screen, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

More details


Low-voltage industrial components > Switch disconnector

Disconnectors and Cam Switches

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $124.28
Unit price: $124.28
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Main switch, T0, 20 A, surface mounting, 3 contact unit(s), 3 pole, 2 N/O, 1 N/C, STOP function, Lockable in the 0 (Off) position, hard knockout version, with assembly sheet screen
Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T0, Stop Function: STOP function, With black rotary handle and locking ring, Notes: hard knockout version, with assembly sheet screen, 3 pole, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 5.5 kW, Rated uninterrupted current: Iu = 20 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Delivery program

Product range
Main switch
maintenance switch
Repair switch
Part group reference
T0
Stop Function
STOP function
With black rotary handle and locking ring
Notes
hard knockout version
with assembly sheet screen
Number of poles
3 pole
Auxiliary contacts
2 N/O
1 N/C
Locking facility
Lockable in the 0 (Off) position
Degree of Protection
IP65
000Z083
Design
surface mounting
000Z428
Contact sequence
115S015-2
Switching angle
90 °
Function
1150SPC-194
Motor rating AC-23A, 50 - 60 Hz [P]
400 V [P]
5.5 kW
Rated uninterrupted current [Iu]
20 A
Note on rated uninterrupted current !u
Rated uninterrupted current Iuis specified for max. cross-section.
Number of contact units
3 contact unit(s)

Technical data

General
Standards
IEC/EN 60947, VDE 0660, IEC/EN 60204
Switch-disconnector according to IEC/EN 60947-3
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30
Ambient temperatureEnclosed
-20 - +40 °C
Overvoltage category/pollution degree
III/3
Rated impulse withstand voltage [Uimp]
6000 V AC
Mechanical shock resistance
15 g
Mounting position
As required
Contacts
Mechanical variablesNumber of poles
3 pole
Mechanical variablesAuxiliary contacts
2 N/O
Mechanical variablesAuxiliary contacts
1 N/C
Electrical characteristicsRated operational voltage [Ue]
690 V AC
Electrical characteristicsRated uninterrupted current [Iu]
20 A
Electrical characteristicsNote on rated uninterrupted current !u
Rated uninterrupted current Iuis specified for max. cross-section.
Load rating with intermittent operation, class 12AB 25 % DF
2 x Ie
Load rating with intermittent operation, class 12AB 40 % DF
1.6 x Ie
Load rating with intermittent operation, class 12AB 60 % DF
1.3 x Ie
Short-circuit ratingFuse
20 A gG/gL
Rated short-time withstand current (1 s current) [Icw]
320 Arms
Note on rated short-time withstand current lcw
Current for a time of 1 second
Rated conditional short-circuit current [Iq]
6 kA
Switching capacity
cos ϕ rated making capacity as per IEC 60947-3
130 A
Rated breaking capacity cos ϕ to IEC 60947-3230 V
100 A
Rated breaking capacity cos ϕ to IEC 60947-3400/415 V
110 A
Rated breaking capacity cos ϕ to IEC 60947-3500 V
80 A
Rated breaking capacity cos ϕ to IEC 60947-3690 V
60 A
Safe isolation to EN 61140between the contacts
440 V AC
Safe isolation to EN 61140Current heat loss per contact at Ie
0.6 W
Safe isolation to EN 61140Current heat loss per auxiliary circuit at Ie(AC-15/230 V)
0.6 CO
Lifespan, mechanical [Operations]
> 0.4 x 106
Maximum operating frequency [Operations/h]
1200
ACAC-3Rating, motor load switch [P]220 V 230 V [P]
3 kW
ACAC-3Rating, motor load switch [P]230 V Star-delta [P]
5.5 kW
ACAC-3Rating, motor load switch [P]400 V 415 V [P]
5.5 kW
ACAC-3Rating, motor load switch [P]400 V Star-delta [P]
7.5 kW
ACAC-3Rating, motor load switch [P]500 V [P]
5.5 kW
ACAC-3Rating, motor load switch [P]500 V Star-delta [P]
7.5 kW
ACAC-3Rating, motor load switch [P]690 V [P]
4 kW
ACAC-3Rating, motor load switch [P]690 V Star-delta [P]
5.5 kW
ACAC-3Rated operational current motor load switch230 V [Ie]
11.5 A
ACAC-3Rated operational current motor load switch230 V star-delta [Ie]
20 A
ACAC-3Rated operational current motor load switch400V 415 V [Ie]
11.5 A
ACAC-3Rated operational current motor load switch400 V star-delta [Ie]
20 A
ACAC-3Rated operational current motor load switch500 V [Ie]
9 A
ACAC-3Rated operational current motor load switch500 V star-delta [Ie]
15.6 A
ACAC-3Rated operational current motor load switch690 V [Ie]
4.9 A
ACAC-3Rated operational current motor load switch690 V star-delta [Ie]
8.5 A
ACAC-21ARated operational current switch440 V [Ie]
20 A
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]230 V [P]
3 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]400 V 415 V [P]
5.5 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]500 V [P]
7.5 kW
ACAC-23AMotor rating AC-23A, 50 - 60 Hz [P]690 V [P]
5.5 kW
ACAC-23ARated operational current motor load switch230 V [Ie]
13.3 A
ACAC-23ARated operational current motor load switch400 V 415 V [Ie]
13.3 A
ACAC-23ARated operational current motor load switch500 V [Ie]
13.3 A
ACAC-23ARated operational current motor load switch690 V [Ie]
7.6 A
DCDC-1, Load-break switches L/R = 1 msRated operational current [Ie]
10 A
DCDC-1, Load-break switches L/R = 1 msVoltage per contact pair in series
60 V
DCDC-21A [Ie]Rated operational current [Ie]
1 A
DCDC-21A [Ie]Contacts
1 Quantity
DCDC-23A, motor load switchL/R = 15 ms24 VRated operational current [Ie]
10 A
DCDC-23A, motor load switchL/R = 15 ms24 VContacts
1 Quantity
DCDC-23A, motor load switchL/R = 15 ms48 VRated operational current [Ie]
10 A
DCDC-23A, motor load switchL/R = 15 ms48 VContacts
2 Quantity
DCDC-23A, motor load switchL/R = 15 ms60 VRated operational current [Ie]
10 A
DCDC-23A, motor load switchL/R = 15 ms60 VContacts
3 Quantity
DCDC-23A, motor load switchL/R = 15 ms120 VRated operational current [Ie]
5 A
DCDC-23A, motor load switchL/R = 15 ms120 VContacts
3 Quantity
DCDC-23A, motor load switchL/R = 15 ms240 VRated operational current [Ie]
5 A
DCDC-23A, motor load switchL/R = 15 ms240 VContacts
5 Quantity
DCDC-13, Control switches L/R = 50 msRated operational current [Ie]
10 A
DCDC-13, Control switches L/R = 50 msVoltage per contact pair in series
32 V
Control circuit reliability at 24 V DC, 10 mA [Fault probability]
< 10-5,< 1 failure in 100,000 switching operations HF
Terminal capacities
Solid or stranded
1 x (1 - 2,5)
2 x (1 - 2,5) mm2
Flexible with ferrules to DIN 46228
1 x (0.75 - 2.5)
2 x (0.75 - 2.5) mm2
Terminal screw
M3.5
Tightening torque for terminal screw
1 Nm
Technical safety parameters:
Notes
B10dvalues as per EN ISO 13849-1, table C1
Rating data for approved types
Terminal capacityTerminal screw
M3.5

Design verification as per IEC/EN 61439

Technical data for design verification
Intensidad asignada de empleo para disipación térmica específica [In]
20 A
Disipación térmica por polo, en función de la intensidad [Pvid]
0.6 W
Disipación térmica del equipo, en función de la intensidad [Pvid]
0 W
Disipación térmica estática, en función de la intensidad [Pvs]
0 W
Capacidad de disipación térmica [Pdiss]
0 W
Temperatura ambiente mínima de funcionamiento
-25 °C
Temperatura ambiente máxima de funcionamiento
+40 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Resistencia a la corrosión
Cumple con los requisitos de la norma del producto.
10.2 Strength of materials and parts10.2.3.1 Verificación de la estabilidad térmica de los armarios
Cumple con los requisitos de la norma del producto.
10.2 Strength of materials and parts10.2.3.2 Verificación de la resistencia de los materiales aislantes en condiciones de calor normales
Cumple con los requisitos de la norma del producto.
10.2 Strength of materials and parts10.2.3.3. Verificación de la resistencia de los materiales aislantes al calor excesivo y al fuego debido a los efectos eléctricos internos
Cumple con los requisitos de la norma del producto.
10.2 Strength of materials and parts10.2.4 Resistencia a radiación ultravioleta (UV)
UV resistance only in connection with protective shield.
10.2 Strength of materials and parts10.2.5 Elevación
No se aplica, ya que todo el equipo de conmutación debe ser evaluado.
10.2 Strength of materials and parts10.2.6 Impacto mecánico
No se aplica, ya que todo el equipo de conmutación debe ser evaluado.
10.2 Strength of materials and parts10.2.7 Inscripciones
Cumple con los requisitos de la norma del producto.
10.3 Grado de protección de montajes
No se aplica, ya que todo el equipo de conmutación debe ser evaluado.
10.4 Distancias de separación y fuga
Cumple con los requisitos de la norma del producto.
10.5 Protección contra descargas eléctricas
No se aplica, ya que todo el equipo de conmutación debe ser evaluado.
10.6 Incorporación de dispositivos y componentes de conmutación
No se aplica, ya que todo el equipo de conmutación debe ser evaluado.
10.7 Conexiones y circuitos eléctricos internos
Es responsabilidad del cuadrista.
10.8 Conexiones de conductores externos
Es responsabilidad del cuadrista.
10.9 Insulation properties10.9.2 Resistencia eléctrica de frecuencia de alimentación
Es responsabilidad del cuadrista.
10.9 Insulation properties10.9.3 Tensión de impulso soportada
Es responsabilidad del cuadrista.
10.9 Insulation properties10.9.4 Pruebas de armarios hechos de material aislante
Es responsabilidad del cuadrista.
10.10 Aumento de la temperatura
El cuadrista es responsable del cálculo del aumento de la temperatura. Eaton proporcionará datos de disipación de calor para los dispositivos.
10.11 Resistencia a los cortocircuitos
Es responsabilidad del cuadrista. Deben tenerse en cuenta las especificaciones de la aparamenta.
10.12 Compatibilidad electromagnética
Es responsabilidad del cuadrista. Deben tenerse en cuenta las especificaciones de la aparamenta.
10.13 Función mecánica
El dispositivo cumple los requisitos, siempre que se observe la información del folleto de instrucciones (IL).

Technical data ETIM 7.0

Conmutadores en baja tensión (EG000017) / Disyuntor (EC000216)
Tecnología electrónica, de automatización y de mando de procesos / Tecnología de conmutación de baja tensión / Conmutador de carga, seccionador de ruptura de carga, conmutador de control / Seccionador de ruptura de carga compacto ([email protected] [AKF060013])
Versión de interruptor principal
Versión de interruptor de mantenimiento/servicio
Versión de interruptor de seguridad
No
Versión de instalación de parada de emergencia
No
Número de conmutadores
1
Tensión de funcionamiento nominal máxima Ue CA
690 Volt
Tensión de funcionamiento nominal
690 - 690 Volt
Intensidad permanente nominal Iu
20 Ampere
Potencia de funcionamiento nominal en CA-3, 400 V
5.5 Kilowatt
Corriente no disruptiva de corta duración nominal lcw
0.32 kiloampere
Potencia de funcionamiento nominal a CA-23, 400 V
5.5 Kilowatt
Intensidad nominal condicionado de cortocircuito Iq
6 kiloampere
Número de polos
3
Número de contactos auxiliares como contacto normalmente cerrado
1
Número de contactos auxiliares como contacto normalmente abierto
2
Número de contactos auxiliares como contacto de intercambio
0
Accionamiento por motor opcional
No
Accionamiento por motor integrado
No
Liberación de tensión opcional
No
Construcción de dispositivo
Dispositivo completo en carcasa
Compatible para montaje en suelo
Compatible para montaje frontal
No
Compatible para centro de montaje frontal
No
Compatible para instalación de panel de distribución
No
Compatible para montaje intermedio
No
Elemento de control de color
Negro
Tipo de elemento de control
Dispositivo giratorio de acoplamiento a la puerta
Con capacidad de interbloqueo
Tipo de conexión del circuito de corriente principal
Conexión enroscada
Grado de protección (IP), lado delantero
IP65

Dimensions

1150DIM-174
115X070
≦ 3 padlocks

ETIM for 182434 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 20 A
Rated permanent current at AC-23, 400 V (EF011777) 13.3 A
Rated permanent current at AC-21, 400 V (EF009165) 20 A
Rated operation power at AC-3, 400 V (EF001364) 5.5 kW
Rated short-time withstand current lcw (EF007050) 0.32 kA
Rated operation power at AC-23, 400 V (EF007027) 5.5 kW
Switching power at 400 V (EF009166) 5.5 kW
Conditioned rated short-circuit current Iq (EF001444) 6 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 1
Number of auxiliary contacts as normally open contact (EF001376) 2
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Door coupling rotary drive
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 100 mm
Height (EF000040) 181 mm
Depth (EF000049) 136 mm

Datasheet - PDF

Reviews (0)

No customer reviews for the moment.

Add Review
hide form
Rating:
Name:
Email:
Subject:
Text:
  Captcha
  Add review

All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
