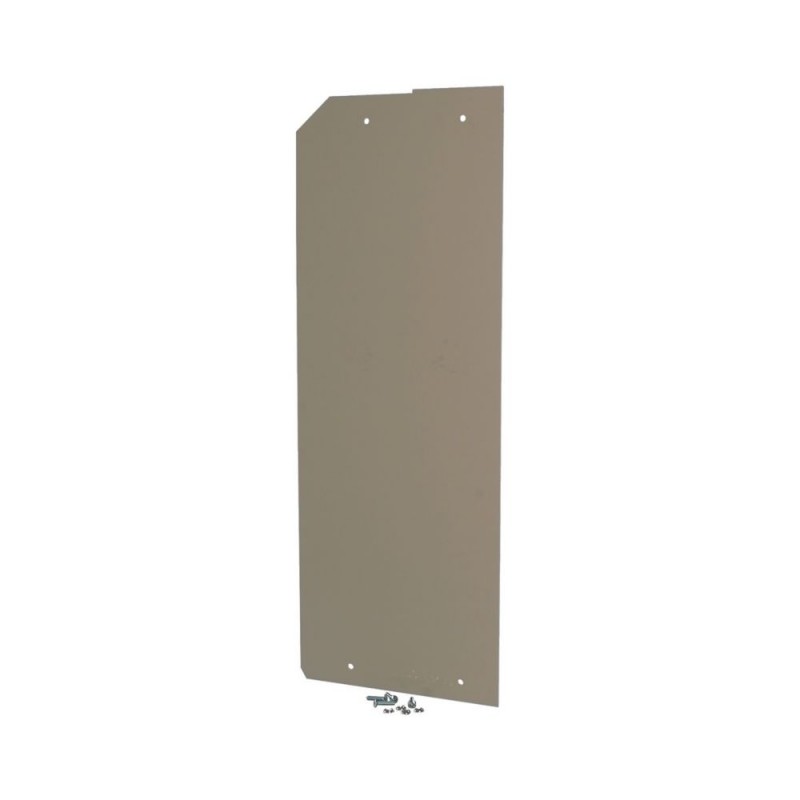

SWRL75-ID 020287 EATON ELECTRIC Side wall, for cabling box, H 750mm
SWRL75-ID
020287
EATON-MOELLER
Side wall, for cabling box, H=750mm
Cabinet enclosures > Base/base element (switchgear cabinet)
Insulating Enclosures
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
More info
▲Side wall, for cabling box, H=750mm
Enclosure side plate cable compartment cladding for CI floor standing distribution board, for fitting to left or right, H=750mm, material characteristic insulated material, including fixing material
General specifications
Product name
Eaton xEnergy Safety Ci cable compartment accessory
Part no.
SWRL75-ID
EAN
4015080202875
Product Length/Depth
10 millimetre
Product height
750 millimetre
Product width
300 millimetre
Product weight
3 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Safety Ci
Product Type
Accessories
Product Sub Type
Cable compartment accessory
Delivery program
Type
Accessory
CI insulated enclosure
Distribution board assembly
CI insulated enclosure
Distribution board assembly
Model
Base side set
Accessory/spare part type
Cable compartment cladding
Enclosure side plates
Enclosure side plates
Color
Gray
Technical Data - Mechanical
Material
Plastic
Load capacity - max
0 kg
Suitable for enclosure building length/depth
300 mm
Suitable for enclosure building width
0 mm
Additional information
Functions
Cover for external sides
Special features
Can be fitted to left or right
Suitable for
Outdoor set-up
Used with
Distribution board assembly
Accessory
CI insulated enclosure
Accessory
CI insulated enclosure
Technical data ETIM 8.0
Cabinet enclosures (EG000011) / Base/base element (enclosure/cabinet) (EC000721)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Base/plinth (electrical cabinet) / Base/base element (enclosure) ([email protected] [ACN612011])
Model
Base side set
Material
Plastic
Colour
Grey
Max. load capacity
0 kg
Width
300 mm
Height
750 mm
Depth
10 mm
Suitable for enclosure building width
0 mm
Suitable for enclosure building depth
300 mm
Suitable for aeration/de-aeration
No
Suitable for outdoor set-up
Yes
Suitable for cable patch
No
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| SWRL75-ID 020287 EN_020287.pdf | 132 Kbytes |
|
