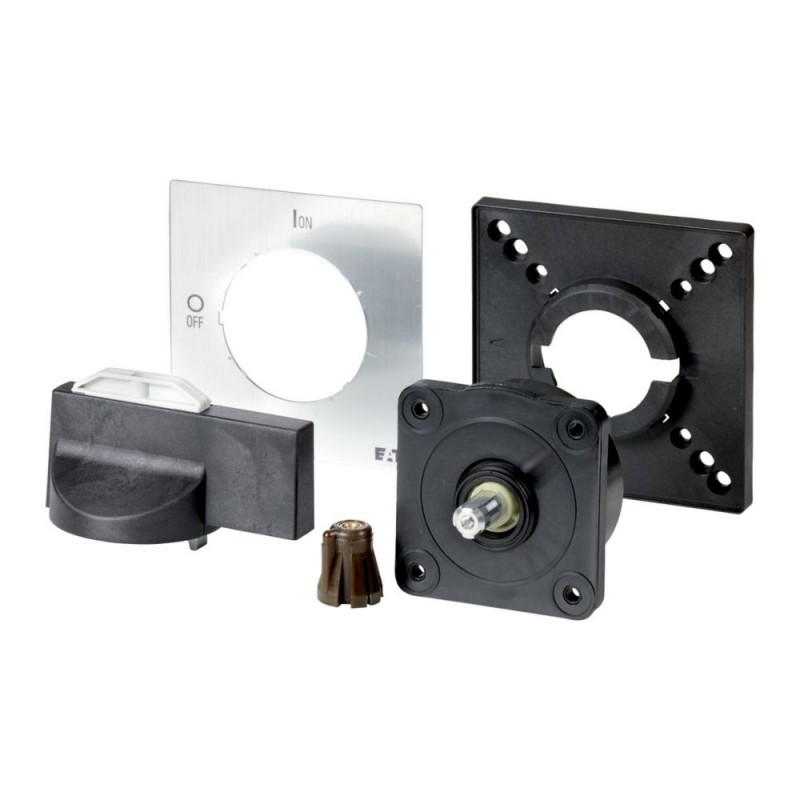

SVB-SW-T6-160 207611 Y7-207611 EATON ELECTRIC Locking handle, black, for T6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SVB-SW-T6-160 207611 Y7-207611 EATON ELECTRIC Locking handle, black, for T6

SVB-SW-T6-160

207611

Y7-207611

EATON-MOELLER

Locking handle, black, for T6

SVB-SW-T6-160

Handle, Basic function: Assembly kits, Function: main switch assembly kits, only for main switch, With padlocking feature, Switching angle: 90 °

More details


Low-voltage industrial components > Handle for power circuit breaker

Disconnectors and Cam Switches

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $104.59
Unit price: $104.59
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Locking handle, black, for T6
Handle, Basic function: Assembly kits, Function: main switch assembly kits, only for main switch, With padlocking feature, Switching angle: 90 °

General specifications
Product name
Eaton Moeller® series SVB Accessory Handle
Part no.
SVB-SW-T6-160
EAN
4015082076115
Product Length/Depth
89 millimetre
Product height
90 millimetre
Product width
89 millimetre
Product weight
0.243 kilogram
Compliances
CE
Product Tradename
SVB
Product Type
Accessory
Product Sub Type
Handle
Features & Functions
Color
Black
Features
Lockable
Fitted with:
Padlocking feature
General information
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Degree of protection
NEMA Other
Suitable for
Switch disconnector
Only for main switch
Switching angle
90 °
Type
Assembly kit
Main switch assembly kit
Design verification
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Handle for power circuit breaker (EC000229)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Handle for switch devices (ecl@ss13-27-37-04-14 [AKF012019])
With restart blockage
No
With key lock
No
Padlock locking
No
Colour
Black
Suitable for emergency stop
No
With extension shaft
No
Suitable for power circuit breaker
No
Suitable for switch disconnector
Yes
Degree of protection (NEMA)
Other

ETIM for 207611 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) No
Colour (EF000007) Black
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) No
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SAFE SWITCHING EN.pdf 935 Kbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SVB-SW-T6-160 Y7-207611 207611 EN_207611.pdf 110 Kbytes SVB-SW-T6-160 Y7-207611 207611 EN_207611.pdf
