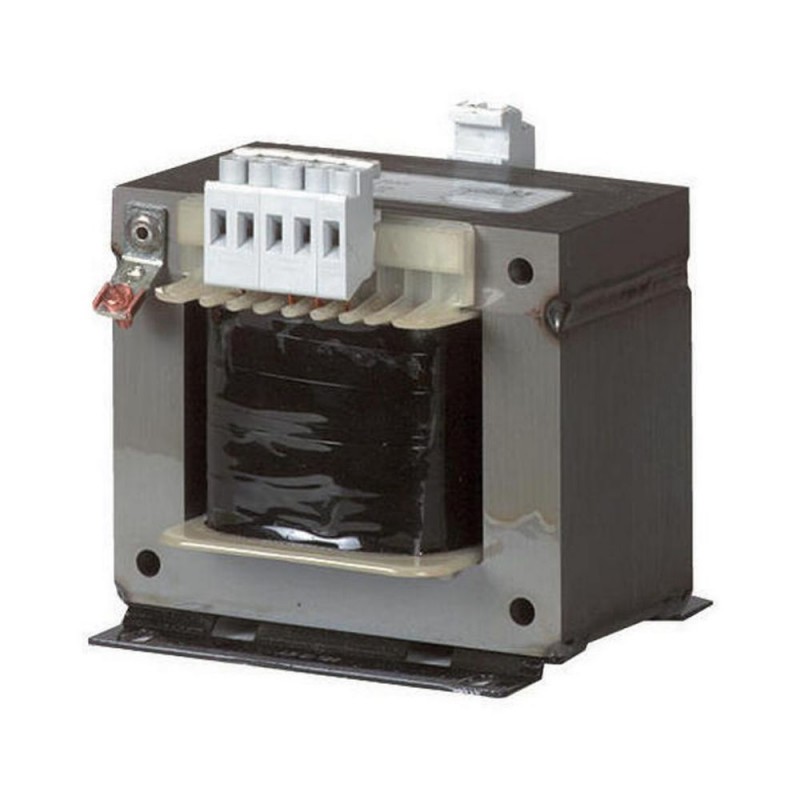

STN0,2(230/230) 204951 Y7-204951 EATON ELECTRIC Transformer, control 200 VA single Phase Primary 230 V AC Se.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

STN0,2(230/230) 204951 Y7-204951 EATON ELECTRIC Transformer, control 200 VA single Phase Primary 230 V AC Se..

STN0,2(230/230)

204951

Y7-204951

EATON-MOELLER

Transformer, control; 200 VA; single Phase; Primary 230 V AC; Secondary 230 V AC

STN0,2(230/230)

Eaton Moeller® series STN Control transformer, 230 V, 0.2 kVA

Control transformer, Product range: Single-phase control transformers ST..., Basic function: Single-phase STN control transformers, Rated output voltage: 0.0 V, Rated power: 0.2 kVA

More details


Low-voltage industrial components > One-phase control transformer

Transformers

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $117.90
Unit price: $117.90
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series STN Control transformer
Catalog Number
204951
Model Code
STN0,2(230/230)
EAN
4015082049515
Product Length/Depth
83 mm
Product Height
112 mm
Product Width
106 mm
Product Weight
2.996 kg
Compliances
CE
Catalog Notes
Electrical characteristics: all details for no-load loss, short-circuit loss (copper losses), short-circuit voltage and efficiency values relate to a temperature of 20 °C

Product specifications

Type
Single-phase STN control transformers
Features
Separate windings
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Apparent power
200 VA
Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
No-load losses
9 W
Primary voltage 1 - max
230 V
Primary voltage 1 - min
230 V
Primary voltage 10 - max
0 V
Primary voltage 10 - min
0 V
Primary voltage 2 - max
0 V
Primary voltage 2 - min
0 V
Primary voltage 3 - max
0 V
Primary voltage 3 - min
0 V
Primary voltage 4 - max
0 V
Primary voltage 4 - min
0 V
Primary voltage 5 - max
0 V
Primary voltage 5 - min
0 V
Primary voltage 6 - max
0 V
Conductor material
Copper
Degree of protection
IP00
Insulation material type (IEC 85)
B
Relative short-circuit voltage
6.8 %
Primary voltage 6 - min
0 V
Primary voltage 7 - max
0 V
Primary voltage 7 - min
0 V
Primary voltage 8 - max
0 V
Primary voltage 8 - min
0 V
Primary voltage 9 - max
0 V
Primary voltage 9 - min
0 V
Rated operational current for specified heat dissipation (In)
0 A
Rated power
0.2 VA
Secondary voltage 1 - max
230 V
Secondary voltage 1 - min
230 V
Secondary voltage 10 - max
0 V
Secondary voltage 10 - min
0 V
Secondary voltage 2 - max
0 V
Secondary voltage 2 - min
0 V
Secondary voltage 3 - max
0 V
Secondary voltage 3 - min
0 V
Secondary voltage 4 - max
0 V
Product category
Single-phase control transformers ST
Secondary voltage 4 - min
0 V
Secondary voltage 5 - max
0 V
Secondary voltage 5 - min
0 V
Secondary voltage 6 - max
0 V
Secondary voltage 6 - min
0 V
Secondary voltage 7 - max
0 V
Secondary voltage 7 - min
0 V
Secondary voltage 8 - max
0 V
Secondary voltage 8 - min
0 V
Secondary voltage 9 - max
0 V
Secondary voltage 9 - min
0 V
Short-circuit losses
19 W
Static heat dissipation, non-current-dependent Pvs
28 W
Power consumption in standby mode
15 W

ETIM for 204951 Low-voltage industrial controls and switchgear (EC002486)
Feature Name Feature Value
Built as safety transformer (EF007235) No
Built as isolating transformer (EF007238) No
Built as energy saving transformer (EF007005) No
Primary voltage 1 (EF006125) 230 V
Primary voltage 2 (EF006126) 0 V
Primary voltage 3 (EF006127) 0 V
Primary voltage 4 (EF007410) 0 V
Primary voltage 5 (EF007411) 0 V
Primary voltage 6 (EF007412) 0 V
Primary voltage 7 (EF007413) 0 V
Primary voltage 8 (EF007414) 0 V
Primary voltage 9 (EF007415) 0 V
Primary voltage 10 (EF007409) 0 V
Secondary voltage 1 (EF007472) 230 V
Secondary voltage 2 (EF007474) 0 V
Secondary voltage 3 (EF007475) 0 V
Secondary voltage 4 (EF007476) 0 V
Secondary voltage 5 (EF007477) 0 V
Secondary voltage 6 (EF007478) 0 V
Secondary voltage 7 (EF007479) 0 V
Secondary voltage 8 (EF007480) 0 V
Secondary voltage 9 (EF007481) 0 V
Secondary voltage 10 (EF007473) 0 V
Rated apparent power (EF008864) 200 VA
Power consumption in standby mode (EF012331) 15 W
Type of insulation material according to IEC 85 (EF007299) B
Short-circuit-proof (EF007332) No
Relative short circuit voltage (EF007452) 6.8 %
Width (EF000008) 106 mm
Height (EF000040) 112 mm
Depth (EF000049) 83 mm
Degree of protection (IP) (EF005474) IP00
Ring core (EF006170) No
Suitable for mounting on PCB (EF006157) No
Modular version (EF001126) No
Conductor material (EF001622) Copper

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON CONTROL TRANSFORMES EN.pdf 4 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
STN0,2(230/230) Y7-204951 204951 EN_204951.pdf 112 Kbytes STN0,2(230/230) Y7-204951 204951 EN_204951.pdf
