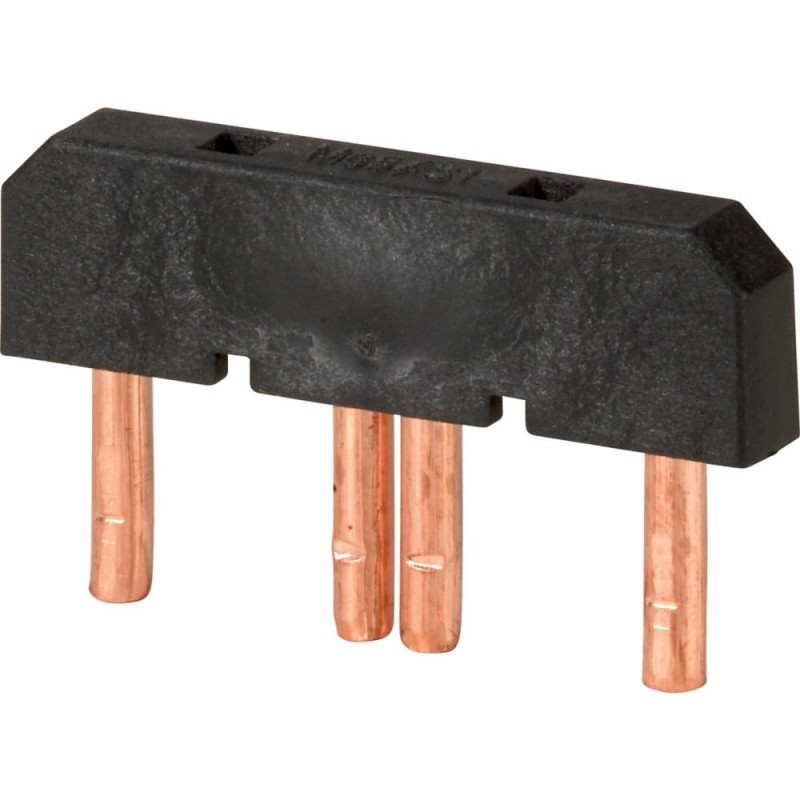

DILM65-XS1 281192 Y7-281192 EATON ELECTRIC Star-point bridge, for DILM3265 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DILM65-XS1 281192 Y7-281192 EATON ELECTRIC Star-point bridge, for DILM3265

DILM65-XS1

281192

Y7-281192

EATON-MOELLER

10

Star-point bridge, for DILM3265

DILM65-XS1

Eaton Moeller® series DILM Star-point bridge, For use with DILM40 - DILM72, DILMF40 - DILMF65

Star-point bridge, Product range: Accessories, Wiring accessories, For use with: DILM40 - DILM72, DILMF40 - DILMF65

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Contactors up to 170A

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $93.73
Unit price: $9.37
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Often bought together

▲

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series DILM star-point bridge
Catalog Number
281192
Model Code
DILM65-XS1
EAN
4015082811921
Product Length/Depth
6 mm
Product Height
27 mm
Product Width
47 mm
Product Weight
0.013 kg
Certifications
CSA
CSA-C22.2 No. 14-05
UL File No.: E36332
IEC/EN 60947-4-1
CSA Class No.: 3211-04
UL
UL 508
CE
CSA File No.: 012528
UL Category Control No.: NLRV

General

Accessory/spare part type
Connecting bridge
Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
60 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
98 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 281192 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Connecting bridge
Accessory (EF013236) Yes
Spare part (EF013237) No
