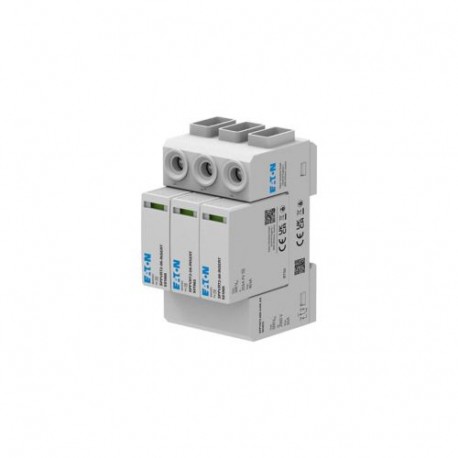

SPPVRT2-600-2+PE EP-501972 Y7-501972 EATON ELECTRIC PV-SPD, 600V, Class 2
SPPVRT2-600-2+PE
EP-501972
Y7-501972
EATON-MOELLER
PV-SPD, 600V, Class 2
PV-Surge protection device, 600V, class 2 tested
SPD for the protection of PV installations on the DC side, to be used in accordance with IEC/EN 60364-5-53
Earthing, lightning and surge protection > Surge protection device for power supply systems
Modular Switchgear – Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Technical data - electrical
Additional information
| Feature Name | Feature Value |
|---|---|
| System configuration DC (EF009926) | Yes |
| System configuration IT (EF009927) | No |
| System configuration TN (EF009928) | No |
| System configuration TN-C (EF009929) | No |
| System configuration TN-C-S (EF009933) | No |
| System configuration TN-S (EF009930) | No |
| System configuration TT (EF009931) | No |
| System configuration other (EF009932) | No |
| Number of conductors (without earthing) (EF001148) | 2 |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Max. discharge surge current (8/20) (EF012274) | 40 kA |
| Nominal voltage DC (EF004221) | 600 V |
| Max. continuous voltage DC (EF004777) | 600 V |
| Max. PV-voltage (EF008795) | 600 V |
| Voltage protection level (EF003525) | 2.5 kV |
| Short-circuit breaking capacity (Isccr) (EF012627) | 9 kA |
| Integrated short-circuit protection (EF016000) | No |
| Integrated backup fuse (EF008797) | No |
| Leakage-current free (EF016002) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 3 modular spacing |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
| With remote signalling contact (EF000422) | No |
| Signalling at the device (EF004241) | Optic |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
