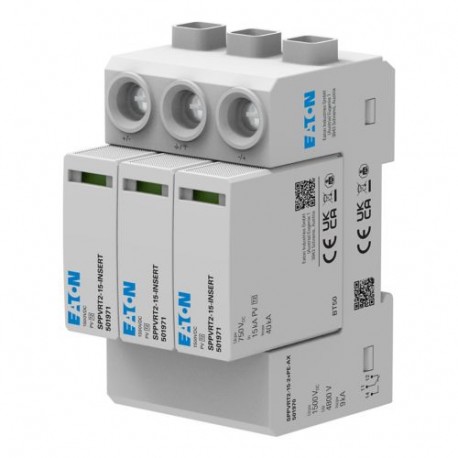

SPPVRT2-15-2+PE EP-501969 Y7-501969 EATON ELECTRIC PV-SPD, 1500V, Class 2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SPPVRT2-15-2+PE EP-501969 Y7-501969 EATON ELECTRIC PV-SPD, 1500V, Class 2

SPPVRT2-15-2+PE

EP-501969

Y7-501969

EATON-MOELLER

PV-SPD, 1500V, Class 2

PV-Surge protection device, 1500V, class 2 tested

More details


Modular Switchgear – Industrial

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $222.67
Unit price: $222.67
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton xPole SPPVR surge protection device
Catalog Number
EP-501969
Model Code
SPPVRT2-15-2+PE
EAN
9010653062905
Product Length/Depth
104 mm
Product Height
60 mm
Product Width
54 mm
Product Weight
0.302 kg
Certifications
CE

Product specifications

Features
Category type 2
Frame
3 modular spacing
Degree of protection
IP20
Mounting method
DIN rail (top hat rail) 35 mm
Signalling at the device
Optic
System configuration type
DC
Conductor cross section (flexible, fine-strand) - max
25 mm²
Conductor cross section (solid, solid-strand) - max
35 mm²
Continuous voltage at DC - max
1500 V
Discharge surge current (8/20) - max
40 kA
Nominal discharge surge current (8/20)
20 kA
Nominal voltage at DC
1500 V
Number of conductors without earthing
2
PV-voltage - max
1500 V
Short-circuit breaking capacity (ISCCR)
9 kA
Voltage protection level
4.8 KV

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf 8 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
SPPVRT2-15-2+PE Y7-501969 EP-501969 ES_EP-501965.pdf 736 Kbytes SPPVRT2-15-2+PE Y7-501969 EP-501969 ES_EP-501965.pdf
