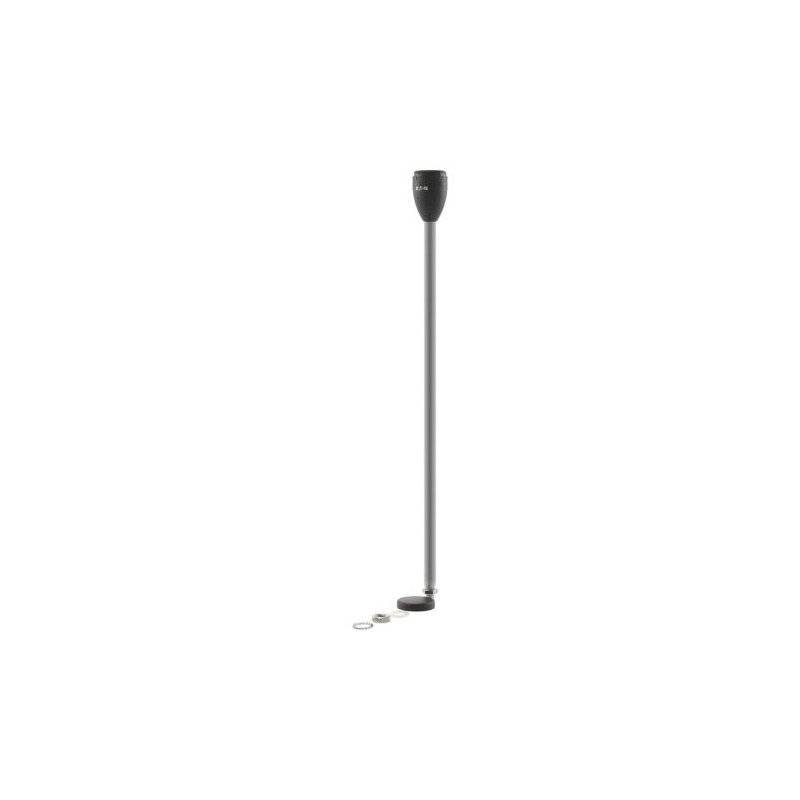

SL7-CB-T-800 178460 EATON ELECTRIC Base module 800 mm aluminum tube
SL7-CB-T-800
178460
Y7-178460
EATON-MOELLER
Base module; 800 mm aluminum tube
SL7-CB-T-800
Low-voltage industrial components > Connection module for signal tower
Auxiliary Control and Signalling Elements
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲Base module; 800 mm aluminum tube
Base module, Color black, Aluminum color tube, Product range: SL signal towers, Connection technique: Spring-loaded terminals, Mounting type: for horizontal mounting, Fitted with: Base with aluminum tube and banjo bolt, including cover, Tube length: 800 mm, Number of modules: max. 5 modules, For use with: SL7-L-…, SL7-BL-…, SL7-FL-…, SL7-AP-…, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1, IEC degree of protection: IP66, IEC/EN 60529, Protection type UL: Type 4, 4X, 13
General specifications
Product name
Eaton Moeller® series SL7 Base module
Part no.
SL7-CB-T-800
EAN
4015081737635
Product Length/Depth
73 millimetre
Product height
900 millimetre
Product width
73 millimetre
Product weight
0.8 kilogram
Certifications
IEC/EN 60947-5-1
IEC/EN 60529
IEC/EN 60529
Product Tradename
SL7
Product Type
Base module
Product Sub Type
None
Features & Functions
Color
Other
Fitted with:
Cover
Aluminum tube
Banjo bolt
Aluminum tube
Banjo bolt
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)
Max. 5
Max. 5 (with standard base)
Max. 5
General information
Connection to SmartWire-DT
No
Degree of protection
NEMA 4
NEMA 4X
NEMA 13
IP66
NEMA 4X
NEMA 13
IP66
Mounting Method
Bracket
Floor
Horizontal
Tube
Floor
Horizontal
Tube
Mounting position
Any position
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Mechanical, According to IEC/EN 60068-2-27
Tube length
800 mm
Type
Base module
Climatic environmental conditions
Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, cyclic, to IEC 60068-2-30
Damp heat, constant, to IEC 60068-2-78
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Terminal capacity (AWG)
24 - 14
Terminal capacity (flexible with ferrule and plastic collar)
0.25 - 1.5 mm²
Terminal capacity (solid/flexible)
0.13 - 2.5 mm²
Electrical rating
Rated insulation voltage (Ui)
250 V
Rated operational voltage
24 V AC/DC ± 10 %
110/120 V AC ± 10 %
230/240 V AC ± 10 %
110/120 V AC ± 10 %
230/240 V AC ± 10 %
Technical data ETIM 9.0
Low-voltage industrial components (EG000017) / Connection module for signal tower (EC001152)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Signal column element, connection module (ecl@ss13-27-37-12-32 [AKF050019])
Connection type auxiliary circuit
Spring clamp connection
Suitable for tube mounting
Yes
Suitable for angle mounting
Yes
Suitable for floor mounting
Yes
Colour
Other
Suitable for AS interface
No
Suitable for M12 connector
No
Suitable for IO link
No
