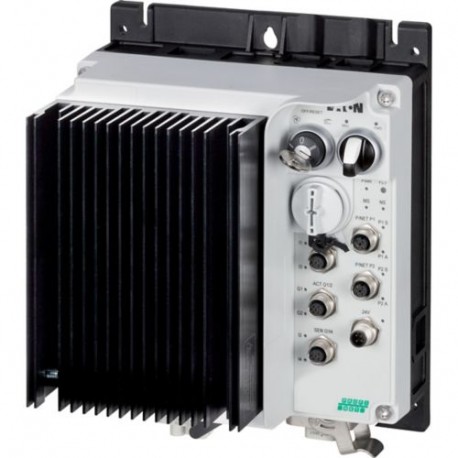

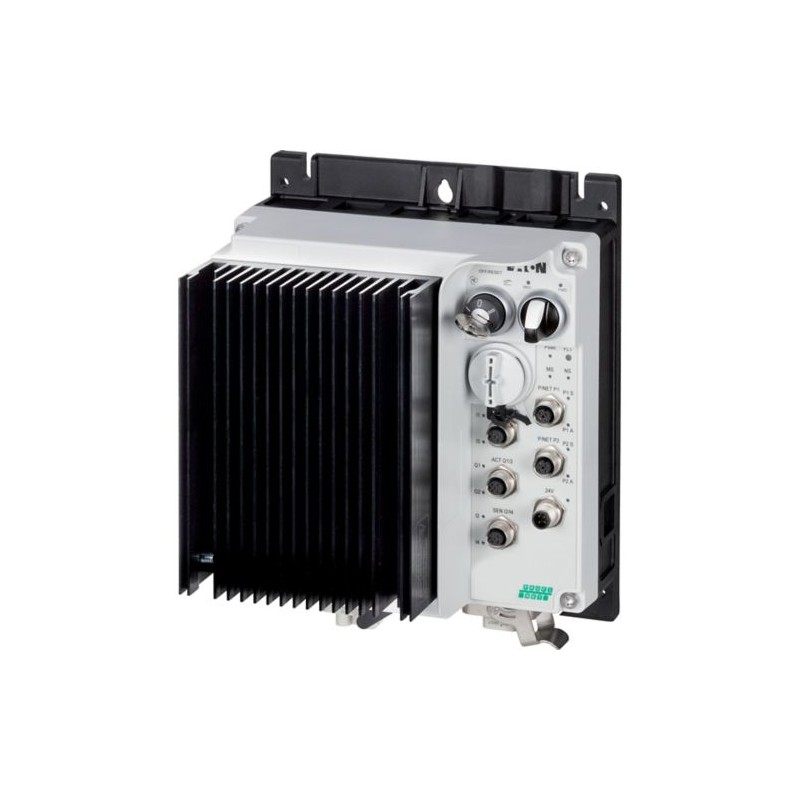

RASP5-2421PNT-4120000S1 198933 Y7-198933 EATON ELECTRIC RASP5-2421PNT-4120000S1
RASP5-2421PNT-4120000S1
198933
Y7-198933
EATON-MOELLER
RASP5-2421PNT-4120000S1
Speed controllers, 2.4 A, 0.75 kW, Sensor input 4, Actuator output 2, 180/207 V DC, PROFINET, HAN Q4/2
Low-voltage industrial components > Frequency converter less than 1 kV
Rapid Link Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲Speed controllers, 2.4 A, 0.75 kW, Sensor input 4, Actuator output 2, 180/207 V DC, PROFINET, HAN Q4/2
Delivery program
Product range
Speed controller
Rated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Output voltage with Ve[U2]
0 - ULN
Mains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
At 150% overload [Ie]
2.4 A
assigned motor rating P
Note
at 400 V, 50 Hz
150 % Overload [P]
0.75 kW
Note
at 480 V, 60 Hz
150 % Overload [P]
1 HP
Note
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Description
integrated PTC thermistor monitoring and Thermoclick with safe isolation
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
optional: 4 sensor inputs with M12-Y adapter for switchover to creep speed
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on the device and via PROFINET
with AUTO - OFF/RESET - HAND key switches
3 fixed speeds and 1 potentiometer speed
can be switched over from U/f to (vector) speed control
with selector switch REV - OFF - FWD
optional: Faster stop if external 24 V fails
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
optional: 4 sensor inputs with M12-Y adapter for switchover to creep speed
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on the device and via PROFINET
with AUTO - OFF/RESET - HAND key switches
3 fixed speeds and 1 potentiometer speed
can be switched over from U/f to (vector) speed control
with selector switch REV - OFF - FWD
optional: Faster stop if external 24 V fails
Sensor input
4 Number
Actuator output
2 Number
Control voltage external brake (50/60 Hz)
180/207 V DC V
Interface/field bus (built-in)
PROFINET
Plug arrangement
HAN Q4/2
Parameterization
Keypad
Fieldbus
drivesConnect
drivesConnect mobile (App)
Fieldbus
drivesConnect
drivesConnect mobile (App)
Instructions
for actuation of motors with mechanical brake
Technical data
General
Standards
IEC/EN 61800-5-1
UL 61800-5-1
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
UL 61800-5-1
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
Climatic proofing [ρw]
< 95%, non-condensing
IEC/EN 50178 %
IEC/EN 50178 %
Ambient temperatureOperating ambient temperature min.
-10 °C
Ambient temperatureOperating ambient temperature max.
+40 °C
Ambient temperature
-10 – +55 with derating
Ambient temperatureStorage [ϑ]
-40 - +70 °C
Overvoltage category
III
Rated impulse withstand voltage [Uimp]
2 kV
Radio interference levelRadio interference class (EMC)
C1 (for conducted emissions only), C2, C3, depending on the motor cable length, the connected load, and ambient conditions.
Radio interference levelEnvironment (EMC)
1st and 2nd environments as per EN 61800-3
Radio interference levelmaximum motor cable length [I]
C1 ≤ 1 m
C2 ≤ 5 m
C3 ≤ 25 m m
C2 ≤ 5 m
C3 ≤ 25 m m
Mechanical shock resistance
1000 shocks per shaft, semi-sinusoidal 15 g/11 ms
IEC/EN 60068-2-27 g
IEC/EN 60068-2-27 g
Vibration
Oscillation frequency: 10 - 150 Hz
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Mounting position
Vertical
Altitude
0 - 1000 m above sea level
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
Degree of Protection
IP65
NEMA12
NEMA12
Main circuit
SupplyRated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
SupplyMains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
SupplyInput current (150% overload) [ILN]
2.5 A
SupplySystem configuration
AC voltage
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
45–66 (± 0%) Hz
SupplyMains switch-on frequency
Maximum of one time every 60 seconds
SupplyMains current distortion [THD]
< 120 %
SupplyRated conditional short-circuit current [Iq]
< 10 kA
SupplyShort-circuit protection for output circuits, external
Type 1 coordination via the power bus' feeder unit
Power sectionFunction
Variable frequency drive with internal DC link and IGBT inverter
Power sectionOn-delay [tON]
< 10 ms
Power sectionOff-delay [tOFF]
< 10 ms
Power sectionOverload current (150% overload) [IL]
3.6 A
Power sectionNote regarding overload current
For 60 s every 600 s
at 40 °C
at 40 °C
Power sectionmax. starting current (High Overload) [IH]
200 %
Power sectionNote about max. starting current
at 40 °C
Power sectionOutput voltage with Ve[U2]
0 - ULN
Power sectionOutput Frequency [f2]
0 - 50/60 (max. 500) Hz
Power sectionSwitching frequency [fPWM]
8
adjustable 4 - 32 kHz
adjustable 4 - 32 kHz
Power sectionOperation Mode
U/f control
sensorless vector control (SLV)
PM and LSPM motors
Synchronous reluctance motors
BLDC motors
sensorless vector control (SLV)
PM and LSPM motors
Synchronous reluctance motors
BLDC motors
Power sectionFrequency resolution (setpoint value) [Δf]
0.1 Hz
Power sectionRated operational currentAt 150% overload [Ie]
2.4 A
Power sectionNote
Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40 °C
Power sectionMotor current limit [I]
0,2 - 2,4
adjustable A
adjustable A
Power sectionPower lossHeat dissipation at rated operational current Ie=150 % [PV]
32 W
Power sectionEfficiency [η]
97 %
Power sectionMaximum leakage current to ground (PE) without motor [IPE]
3.5 mA
Power sectionFitted with
without manual override switch
without fan
without braking resistance
without fan
without braking resistance
Motor feederNote
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Motor feederNote
at 400 V, 50 Hz
Motor feeder150 % Overload [P]
0.75 kW
Motor feederNote
at 480 V, 60 Hz
Motor feeder150 % Overload [P]
1 HP
Motor feederActuator for external motor brakeBreaking voltage [U]
280/207 V DC -15% / +10% V
Motor feederActuator for external motor brakeBraking current [I]
≤ 0.6 A
(max. 6 A for 120 ms) A
(max. 6 A for 120 ms) A
Motor feederBraking functionBraking torque [%]
≦ 30 I/Ie
Motor feederBraking functionDC braking [%]
≦ 100, adjustable I/Ie
Control section
External control voltage [Uc]
24 V DC - 15 % / + 20 % via AS-Interface®plug V
Interface/field bus (built-in)
PROFINET
AS-Interface®
max. total power consumption from AS-Interface® power supply unit (30 V): 250 mA
Specification: S-7.4
Number of slave addresses: 31
Specification: S-7.4
Number of slave addresses: 31
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-10 °C
Operating ambient temperature max.
+40 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Frequency converter =< 1 kV (EC001857)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter = < 1 kV ([email protected] [AKE177014])
Mains voltage
342 - 726 V
Mains frequency
50/60 Hz
Number of phases input
3
Number of phases output
3
Max. output frequency
500 Hz
Max. output voltage
500 V
Nominal output current I2N
2.4 A
Max. output at quadratic load at rated output voltage
0.75 kW
Max. output at linear load at rated output voltage
0.75 kW
Relative symmetric net frequency tolerance
10 %
Relative symmetric net voltage tolerance
10 %
Number of analogue outputs
0
Number of analogue inputs
0
Number of digital outputs
2
Number of digital inputs
4
With control unit
Yes
Application in industrial area permitted
Yes
Application in domestic- and commercial area permitted
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for BACnet
No
Supporting protocol for other bus systems
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
2
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
0
Number of HW-interfaces parallel
0
Number of HW-interfaces other
0
With optical interface
No
With PC connection
Yes
Integrated breaking resistance
No
4-quadrant operation possible
No
Type of converter
U converter
Degree of protection (IP)
IP65
Degree of protection (NEMA)
12
Height
270 mm
Width
220 mm
Depth
157 mm
Dimensions
| Feature Name | Feature Value |
|---|---|
| Mains voltage (EF006780) | 380 V |
| Mains frequency (EF006783) | 50/60 Hz |
| Number of phases input (EF007117) | 3 |
| Number of phases output (EF006998) | 3 |
| Max. output frequency (EF007350) | 500 Hz |
| Max. output voltage (EF009560) | 500 V |
| Nominal output current I2N (EF009561) | 2.4 A |
| Max. output at quadratic load at rated output voltage (EF007366) | 0.75 kW |
| Max. output at linear load at rated output voltage (EF007364) | 0.75 kW |
| Power consumption (EF000346) | 32 W |
| Relative symmetric net frequency tolerance (EF007454) | 10 % |
| Relative symmetric net voltage tolerance (EF007453) | 10 % |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 0 |
| Number of digital outputs (EF001993) | 2 |
| Number of digital inputs (EF001992) | 4 |
| With control element (EF001538) | true |
| Application in industrial area permitted (EF007294) | true |
| Application in domestic- and commercial area permitted (EF007295) | true |
| Supporting protocol for TCP/IP (EF003050) | false |
| Supporting protocol for PROFIBUS (EF003052) | false |
| Supporting protocol for CAN (EF003053) | false |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for Modbus (EF003057) | false |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for SUCONET (EF003060) | false |
| Supporting protocol for LON (EF003017) | false |
| Supporting protocol for PROFINET IO (EF007525) | true |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Supporting protocol for EtherNet/IP (EF007521) | false |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for PROFIsafe (EF007526) | false |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for BACnet (EF011944) | false |
| Supporting protocol for other bus systems (EF003062) | false |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 2 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 1 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | false |
| With PC connection (EF006107) | true |
| Integrated breaking resistance (EF007293) | false |
| 4-quadrant operation possible (EF006803) | false |
| Type of converter (EF006978) | U converter |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Height (EF000040) | 270 mm |
| Width (EF000008) | 220 mm |
| Depth (EF000049) | 157 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| RASP5-2421PNT-4120000S1 Y7-198933 198933 EN_198933.pdf | 359 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
