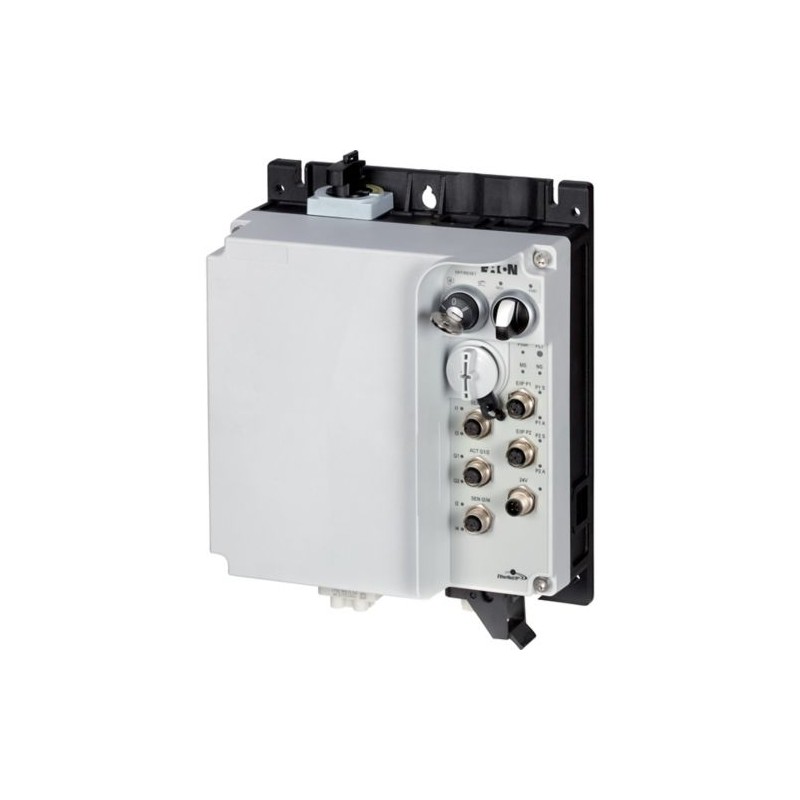

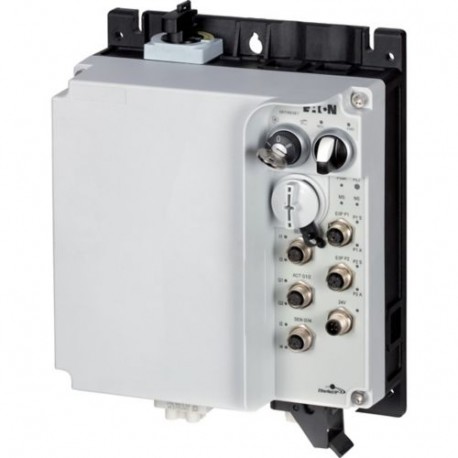

RAMO5-W420EIP-412RS1 199121 Y7-199121 EATON ELECTRIC RAMO5-W420EIP-412RS1
RAMO5-W420EIP-412RS1
199121
Y7-199121
EATON-MOELLER
RAMO5-W420EIP-412RS1
Eaton Moeller® series Rapid Link Reversing starter, 6.6 A, Sensor input 4, Actuator output 2, Ethernet IP, HAN Q4/2, with manual override switch
Reversing starter, 6.6 A, Sensor input 4, Actuator output 2, Ethernet IP, HAN Q4/2, with manual override switch
Low-voltage industrial components > Motor starter/Motor starter combination
Rapid Link Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
| Product Name | Eaton Rapid Link Reversing starter |
| Catalog Number | 199121 |
| Model Code | RAMO5-W420EIP-412RS1 |
| EAN | 4015081971794 |
| Product Length/Depth | 120 mm |
| Product Height | 270 mm |
| Product Width | 220 mm |
| Product Weight | 1.83 kg |
| Certifications | RoHS CE CCC IEC/EN 60947-4-2 UL 60947-4-2 UL approval |
| Catalog Notes | Assigned motor rating: for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm at 50 Hz or 1800 min at 60 Hz |
Features & Functions
| Features | Parameterization: drivesConnect Parameterization: Fieldbus Parameterization: Keypad Parameterization: drivesConnect mobile (App) |
| Fitted with: | Key switch position AUTO Thermo-click Key switch position OFF/RESET 2 Actuator outputs Electronic motor protection Key switch position HAND Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation Manual override switch Thermistor monitoring PTC Short-circuit release |
| Functions | External reset possible Temperature compensated overload protection |
General information
| Class | CLASS 10 A |
| Degree of protection | NEMA 12 IP65 |
| Electromagnetic compatibility | Class A |
| Lifespan, electrical | 10,000,000 Operations (at AC-3) |
| Lifespan, mechanical | 10,000,000 Operations (at AC-3) |
| Model | Reversing starter |
| Overload release current setting - min | 0.3 A |
| Overload release current setting - max | 6.6 A |
| Overvoltage category | III |
| Product category | Motor starter |
| Product category | Motor starter |
| Protocol | EtherNet/IP |
| Rated impulse withstand voltage (Uimp) | 4000 V |
| System configuration type | Phase-earthed AC supply systems are not permitted. AC voltage Center-point earthed star network (TN-S network) |
| Type | Reversing starter |
| Voltage type | DC |
Ambient conditions, mechanical
| Mounting position | Vertical |
| Shock resistance | 15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaft |
| Vibration | Resistance: 10 - 150 Hz, Oscillation frequency Resistance: 57 Hz, Amplitude transition frequency on acceleration Resistance: 6 Hz, Amplitude 0.15 mm Resistance: According to IEC/EN 60068-2-6 |
Climatic environmental conditions
| Altitude | Max. 1000 m Max. 2000 m Above 1000 m with 1 % performance reduction per 100 m |
| Ambient operating temperature - min | -10 °C |
| Ambient operating temperature - max | 55 °C |
| Ambient storage temperature - min | -40 °C |
| Ambient storage temperature - max | 70 °C |
| Climatic proofing | < 95 %, no condensation In accordance with IEC/EN 50178 |
Main circuit
| Current limitation | 0.3 - 6.6 A, motor, main circuit Adjustable, motor, main circuit |
| Input current | 6.6 A (at 150 % Overload) |
| Mains switch-on frequency | Maximum of one time every 60 seconds |
| Mains voltage tolerance | 380 - 480 V (-15 %/+10 %, at 50/60 Hz) |
| Off-delay | 20 - 35 ms |
| On-delay | 20 - 35 ms |
| Output frequency | 50/60 Hz |
| Overload cycle | AC-53a |
| Rated frequency - max | 63 Hz |
| Rated frequency - min | 47 Hz |
| Rated operational current (Ie) | 6.6 A |
| Rated operational current (Ie) at 150% overload | 6.6 A |
| Rated operational current (Ie) at AC-3, 380 V, 400 V, 415 V | 6.6 A |
| Rated operational power at 380/400 V, 50 Hz - max | 3 kW |
| Rated operational power at 380/400 V, 50 Hz - min | 0.09 kW |
| Rated operational power at AC-3, 380/400 V, 50 Hz | 3 kW |
| Rated operational voltage | 480 V AC, 3-phase 400 V AC, 3-phase |
| Supply frequency | 50/60 Hz, fLN, Main circuit |
Motor rating
| Assigned motor power at 460/480 V, 60 Hz, 3-phase | 3 HP |
Short-circuit rating
| Rated conditional short-circuit current (Iq) | 10 kA |
| Short-circuit protection (external output circuits) | Type 1 coordination via the power bus' feeder unit, Main circuit |
Control circuit
| Rated control voltage (Uc) | 24 V DC (-15 %/+20 %, external via AS-Interface® plug) |
Communication
| Connection | Connections pluggable in power section |
Contacts
| Number of auxiliary contacts (normally closed contacts) | 0 |
| Number of auxiliary contacts (normally open contacts) | 2 |
Cable
| Cable length | 10 m, Radio interference level, maximum motor cable length |
Design verification
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| 10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| Feature Name | Feature Value |
|---|---|
| Type of motor starter (EF009598) | Reversing starter |
| With short-circuit release (EF006691) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 0 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 0 kW |
| Rated operation power at AC-3, 400 V (EF001364) | 3 kW |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.238 kW |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | 0 kW |
| Rated operation current Ie (EF001443) | 6.6 A |
| Rated operation current at AC-3, 400 V (EF009602) | 6.6 A |
| Overload release current setting (EF002336) | 0.3 A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | 10000 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | 0 A |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 0 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 0 A |
| Power consumption (EF000346) | 8 W |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Ambient temperature, upper operating limit (EF009603) | 55 °C |
| Temperature compensated overload protection (EF009604) | Yes |
| Release class (EF006668) | CLASS 10 A |
| Type of electrical connection of main circuit (EF006819) | Plug-in connection |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Plug-in connection |
| Suitable for rail mounting (EF003972) | No |
| With transformer (EF000278) | No |
| Number of command positions (EF001372) | 2 |
| Suitable for emergency stop (EF001433) | No |
| Coordination class according to IEC 60947-4-3 (EF012390) | Class 1 |
| Number of indicator lights (EF001965) | 0 |
| External reset possible (EF003426) | Yes |
| With fuse (EF006693) | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | Yes |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Width (EF000008) | 220 mm |
| Height (EF000040) | 270 mm |
| Depth (EF000049) | 120 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| RAMO5-W420EIP-412RS1 Y7-199121 199121 EN_199121.pdf | 306 Kbytes |
|
