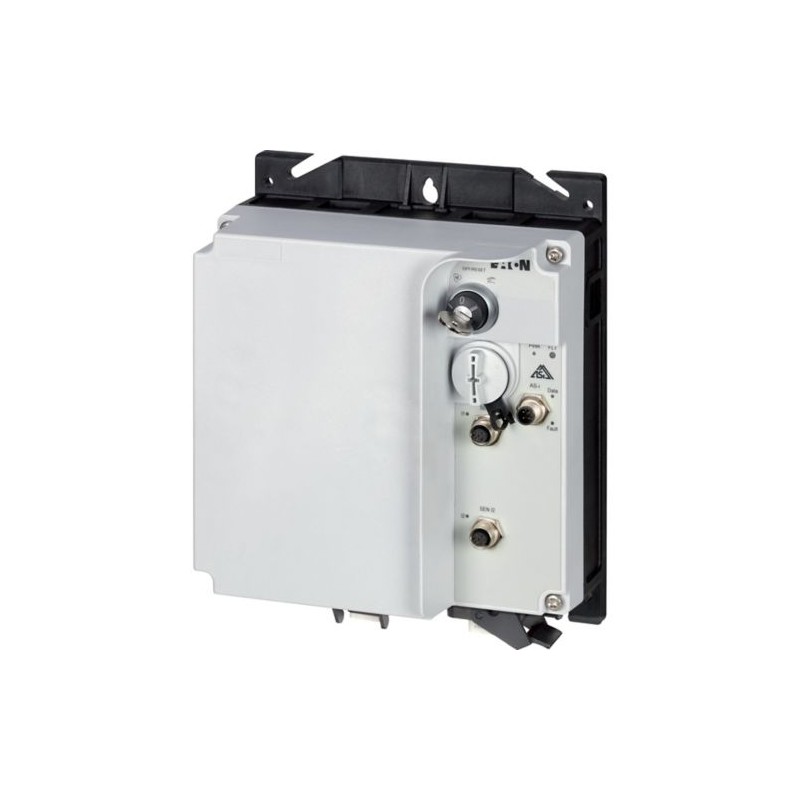

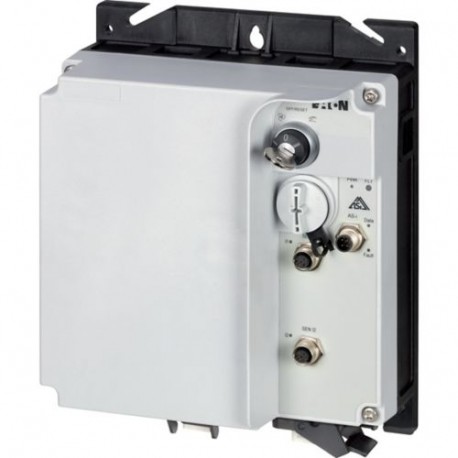

RAMO5-D204A32-5120S1 198525 Y7-198525 EATON ELECTRIC RAMO5-D204A32-5120S1
RAMO5-D204A32-5120S1
198525
Y7-198525
EATON-MOELLER
RAMO5-D204A32-5120S1
DOL starter, 6.6 A, Sensor input 2, 400/480 V AC, AS-Interface®, S-7.A.E. for 62 modules, HAN Q5
Low-voltage industrial components > Motor starter/Motor starter combination
Rapid Link Starters
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲DOL starter, 6.6 A, Sensor input 2, 400/480 V AC, AS-Interface®, S-7.A.E. for 62 modules, HAN Q5
Delivery program
Product range
Motor starter
Basic function
DOL starters
Rated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
Output voltage with Ve[U2]
= ULN
Mains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
At 150% overload [Ie]
6.6 A
assigned motor rating P
Note
at 400 V, 50 Hz
150 % Overload [P]
0,09 - 3 kW
Note
at 480 V, 60 Hz
150 % Overload [P]
0,125 - 3 HP
Note
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Description
Integrated thermistor monitoring PTC and thermo-click
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Connections pluggable in power section
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on device and via AS-Interface
with AUTO - OFF/RESET - HAND key switches
With electronic motor protection for allocated motor power from 0.09 – 3.0 kW (400 V)/0.125 – 3.0 HP (480 V)
Two sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation
Connections pluggable in power section
Connection of supply voltage via adapter cable on round or flexible busbar junction
Diagnostics and reset on device and via AS-Interface
with AUTO - OFF/RESET - HAND key switches
With electronic motor protection for allocated motor power from 0.09 – 3.0 kW (400 V)/0.125 – 3.0 HP (480 V)
Sensor input
2 Number
Control voltage external brake (50/60 Hz)
400/480 V AC V
Interface/field bus (built-in)
AS-Interface®
AS-Interface profile cable
S-7.A.E. for 62 modules
Plug arrangement
HAN Q5
Parameterization
Keypad
Fieldbus
drivesConnect
drivesConnect mobile (App)
Fieldbus
drivesConnect
drivesConnect mobile (App)
Instructions
for actuation of motors with mechanical brake
Technical data
General
Standards
IEC/EN 60947-4-2
UL 60947-4-2
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
CCC approval
UL 60947-4-2
Guideline 2011/65/EU (RoHS)
CE approval
UL approval
CCC approval
Climatic proofing [ρw]
< 95%, non-condensing
IEC/EN 50178 %
IEC/EN 50178 %
Ambient temperatureOperating ambient temperature min.
-10 °C
Ambient temperatureOperating ambient temperature max.
+55 °C
Ambient temperatureStorage [ϑ]
-40 - +70 °C
Overvoltage category
III
Rated impulse withstand voltage [Uimp]
4 kV
Radio interference levelEnvironment (EMC)
Device class A
Radio interference levelmaximum motor cable length [I]
10 m
Mechanical shock resistance
1000 shocks per shaft, semi-sinusoidal 15 g/11 ms
IEC/EN 60068-2-27 g
IEC/EN 60068-2-27 g
Vibration
Oscillation frequency: 10 - 150 Hz
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Amplitude 0.15 mm: 6 Hz
Amplitude transition frequency on acceleration: 57 Hz
IEC/EN 60068-2-6
Mounting position
Vertical
Altitude
0 - 1000 m above sea level
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
above 1000 m with 1 % performance reduction per 100 m
max. 2000 m m
Degree of Protection
IP65
NEMA12
NEMA12
Main circuit
SupplyRated operational voltage [Ue]
400 V AC, 3-phase
480 V AC, 3-phase
480 V AC, 3-phase
SupplyMains voltage (50/60Hz) [ULN]
380 (-15%) - 480 (+10%) V
SupplyInput current (150% overload) [ILN]
6.6 A
SupplySystem configuration
AC voltage
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
Center-point earthed star network (TN-S network)
Phase-earthed AC supply systems are not permitted.
SupplySupply frequency [fLN]
50/60 Hz
SupplyFrequency range [fLN]
47 - 63 Hz (± 0%) Hz
SupplyMains switch-on frequency
Maximum of one time every 60 seconds
SupplyRated conditional short-circuit current [Iq]
< 10 kA
SupplyShort-circuit protection for output circuits, external
Type 1 coordination via the power bus' feeder unit
Power sectionFunction
DOL starter with thyristors and bypass contacts, 2-phase
Power sectionOn-delay [tON]
20 - 35 ms
Power sectionOff-delay [tOFF]
20 - 35 ms
Power sectionLifespan, mechanical [Operations]
AC3: > 10.000.000
Power sectionLifespan, electrical [Operations]
AC3: > 10.000.000
Power sectionOverload cycle
AC-53a
Power sectionOutput voltage with Ve[U2]
= ULN
Power sectionOutput Frequency [f2]
= fLNHz
Power sectionRated operational currentAt 150% overload [Ie]
6.6 A
Power sectionMotor current limit [I]
0.3 - 6.6
adjustable A
adjustable A
Power sectionFitted with
without manual override switch
Motor feederNote
for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1at 50 Hz or 1800 min-1at 60 Hz
Motor feederNote
at 400 V, 50 Hz
Motor feederNote
at 480 V, 60 Hz
Motor feederActuator for external motor brakeBreaking voltage [U]
400/480 V AC -15% / +10% V
Motor feederActuator for external motor brakeBraking current [I]
≤ 0.6 A
(max. 6 A for 120 ms) A
(max. 6 A for 120 ms) A
Control section
External control voltage [Uc]
24 V DC - 15 % / + 20 % via AS-Interface®plug V
Interface/field bus (built-in)
AS-Interface®
AS-Interface®
max. total power consumption from AS-Interface® power supply unit (30 V): 190 mA
Specification: S-7.A.E.
Number of slave addresses: 62
Specification: S-7.A.E.
Number of slave addresses: 62
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-10 °C
Operating ambient temperature max.
+55 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Motor starter/Motor starter combination (EC001037)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Load breakout, motor breakout / Motor starter combination ([email protected] [AJZ718013])
Kind of motor starter
Direct starter
With short-circuit release
Yes
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
29 - 32 V
Voltage type for actuating
DC
Rated operation power at AC-3, 230 V, 3-phase
0 kW
Rated operation power at AC-3, 400 V
3 kW
Rated power, 460 V, 60 Hz, 3-phase
2.238 kW
Rated power, 575 V, 60 Hz, 3-phase
0 kW
Rated operation current Ie
6.6 A
Rated operation current at AC-3, 400 V
6.6 A
Overload release current setting
0.3 - 6.6 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
100000 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
0 A
Rated conditional short-circuit current, type 2, 230 V
0 A
Rated conditional short-circuit current, type 2, 400 V
0 A
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Ambient temperature, upper operating limit
55 °C
Temperature compensated overload protection
Yes
Release class
CLASS 10
Type of electrical connection of main circuit
Plug-in connection
Type of electrical connection for auxiliary- and control current circuit
Other
Rail mounting possible
No
With transformer
No
Number of command positions
1
Suitable for emergency stop
No
Coordination class according to IEC 60947-4-3
Class 1
Number of indicator lights
8
External reset possible
Yes
With fuse
No
Degree of protection (IP)
IP65
Degree of protection (NEMA)
12
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
Yes
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Width
220 mm
Height
270 mm
Depth
120 mm
Dimensions
| Feature Name | Feature Value |
|---|---|
| Type of motor starter (EF009598) | Direct starter |
| With short-circuit release (EF006691) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 0 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 0 V |
| Rated control supply voltage DC (EF003980) | 0 V |
| Voltage type for actuating (EF008242) | DC |
| Rated operation power at AC-3, 230 V, 3-phase (EF009599) | 0 kW |
| Rated operation power at AC-3, 400 V (EF001364) | 3 kW |
| Rated power, 460 V, 60 Hz, 3-phase (EF009600) | 2.238 kW |
| Rated power, 575 V, 60 Hz, 3-phase (EF009601) | 0 kW |
| Rated operation current Ie (EF001443) | 6.6 A |
| Rated operation current at AC-3, 400 V (EF009602) | 6.6 A |
| Overload release current setting (EF002336) | 0.3 A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V (EF009607) | 65000 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V (EF009608) | 0 A |
| Rated conditional short-circuit current, type 2, 230 V (EF009606) | 0 A |
| Rated conditional short-circuit current, type 2, 400 V (EF009605) | 0 A |
| Power consumption (EF000346) | 8 W |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Ambient temperature, upper operating limit (EF009603) | 55 °C |
| Temperature compensated overload protection (EF009604) | Yes |
| Release class (EF006668) | CLASS 10 A |
| Type of electrical connection of main circuit (EF006819) | Plug-in connection |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Plug-in connection |
| Suitable for rail mounting (EF003972) | No |
| With transformer (EF000278) | No |
| Number of command positions (EF001372) | 1 |
| Suitable for emergency stop (EF001433) | No |
| Coordination class according to IEC 60947-4-3 (EF012390) | Class 1 |
| Number of indicator lights (EF001965) | 0 |
| External reset possible (EF003426) | Yes |
| With fuse (EF006693) | No |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | Yes |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Width (EF000008) | 220 mm |
| Height (EF000040) | 270 mm |
| Depth (EF000049) | 120 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON STARTING CONTROLLING MOTORS EN.pdf | 37 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| RAMO5-D204A32-5120S1 Y7-198525 198525 EN_198525.pdf | 307 Kbytes |
|
Reviews (0) ▲
No customer reviews for the moment.
Add Review
hide form
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
