> >>RAMO-CM1-5M0 164283 ELECTRIC Motor cable, 5m, halogen free, for BOUQUET
Previous Product Next Product

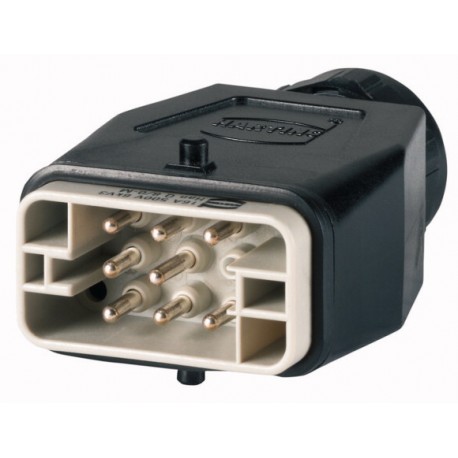

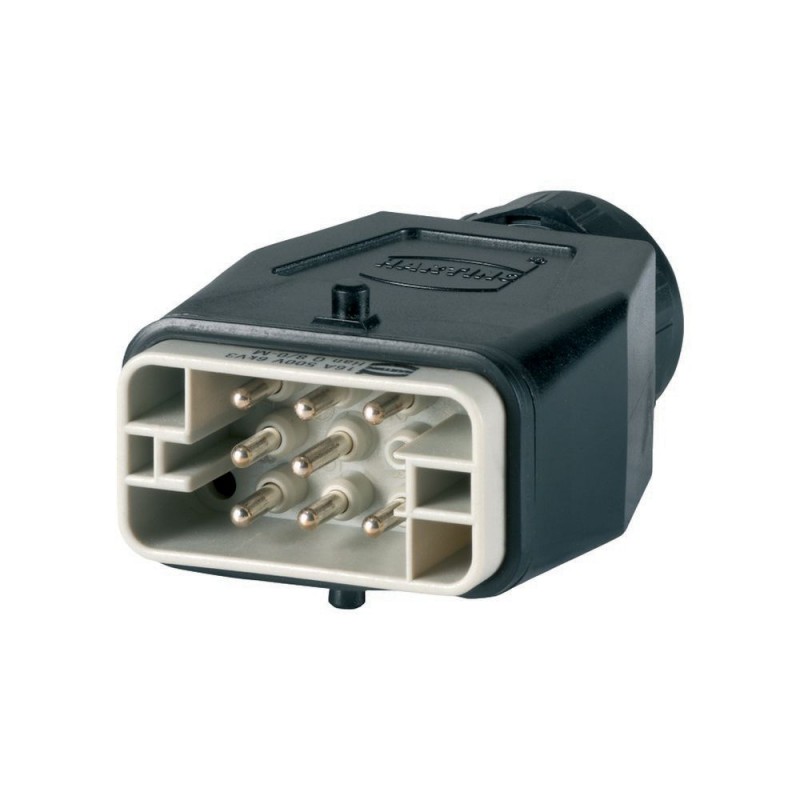

RAMO-CM1-5M0 164283 EATON ELECTRIC Motor cable, 5m, halogen free, for BOUQUET View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RAMO-CM1-5M0 164283 EATON ELECTRIC Motor cable, 5m, halogen free, for BOUQUET

RAMO-CM1-5M0

164283

EATON-MOELLER

Motor cable, 5m, halogen free, for BOUQUET

Motor cable, 5m, halogen free, for RAMO

More details


Low-voltage industrial components > Accessories/spare parts for frequency controller

Rapid Link Starters

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Motor cable, 5m, halogen free, for RAMO
Motor cable, halogen free, 8 x 1.5 mm2, plastic plug, Length: 5 m, Terminal capacities: 8 x 1.5 mm2

Delivery program

Product range
Motor feeder
Subrange
Motor cable
Basic function
for connecting the motor starter to the motor
Description
halogen free, 8 x 1.5 mm2, plastic plug
For use with
For use with
RAMO
Length
5 m

Technical data

General
Standards
EN 61684
DIN VDE 0110
Degree of Protection
IP65
IEC/EN 60529
Ambient temperatureOperation [ϑ]
-30 - +70 °C
Connection cable
Terminal capacities
8 x 1.5 mm2
Outer cable diameter
9 - 13 mm
Minimum bending radius
6 x outer cable diameter mm
Material
Outer casing halogen free
Cable: Cu flexible to VDE 0295 Class 5
Colour
Silver grey (RAL 7001)
Resistance to oils and acids
VDE 0472 Part 803 B
Flame retardance, fire propagation
EN 50265-2-1
Metal housing with plug-in connection
Conductor cross-section
Contact pins: 8 x 1.5 mm2
MaterialContacts
Polycarbonate
MaterialContact material
Silver-plated copper
MaterialHousing
Polycarbonate
MaterialLocking facility
Polyamide

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-30 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025)
Electric engineering, automation, process control engineering / Electrical drive / Static frequency converter / Static frequency converter (accessory) ([email protected] [AFR303003])
Type of accessory
Other

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 32 Mbytes
RAMO-CM1-5M0 RAMO-CM1-5M0 164283 EN_164283.pdf 167 Kbytes RAMO-CM1-5M0 RAMO-CM1-5M0 164283 EN_164283.pdf
