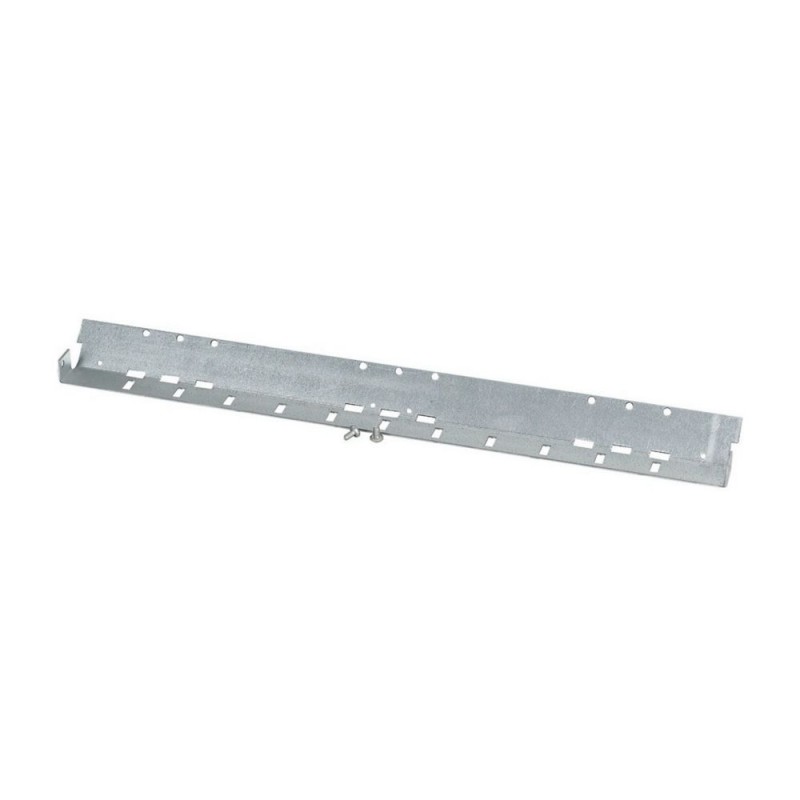

BPZ-TSB-600 106448 Y7-106448 EATON ELECTRIC Rail terminal support W 600 mm
BPZ-TSB-600
106448
Y7-106448
EATON-MOELLER
Rail terminal support W = 600 mm
BPZ-TSB-600
Eaton xEnergy Basic LV systems Low voltage switchgear. Rail terminal support W = 600 mm
Terminal support, BPZ-TSB, for mounting (KLV-)KL terminal bars, width 600 mm, for wall-mounting and floor standing distribution boards, mounted directly on BPZ-CTS corner tower kit. The PE conductor can be installed directly (conductive connection with distribution board), neutral conductor installation with KT terminal supports, material characteristic: sheet steel, zinc coated, equipment supplied: 1 terminal support rail, various mounting accessories
Energy distribution systems > Earthing rail for distribution board
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Delivery program
Technical data - mechanical
Floor standing distribution board
Horizontal
Additional information
| Feature Name | Feature Value |
|---|---|
| Number of connections (EF000126) | 0 |
| Rated current (EF000227) | 0 A |
| Material (EF002169) | Steel |
| Surface of the contact rail (EF004227) | Galvanised |
| Rail length (EF010935) | 0 mm |
| Rail width (EF003704) | 520 mm |
| Busbar thickness (EF002640) | 1.5 mm |
| Clearance from back plate (EF011973) | 50 mm |
| Mounting method (EF000003) | Direct mounting |
| Horizontal mounting (EF006051) | Yes |
| Vertical mounting (EF024092) | No |
| Insulated mounting (EF001588) | No |
| Max. tightening torque (EF011415) | 0 Nm |
| Connection size, connection facility (EF020294) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| BPZ-TSB-600 Y7-106448 106448 EN_106448.pdf | 107 Kbytes |
|
