> EATON - MOELLER>Rapid Link Starters>RA-C3/C1-1,5HF 290210 RA-C3-C1-1P5HF ELECTRIC Power incoming cable, flat cable, L 1.5 m
Previous Product Next Product

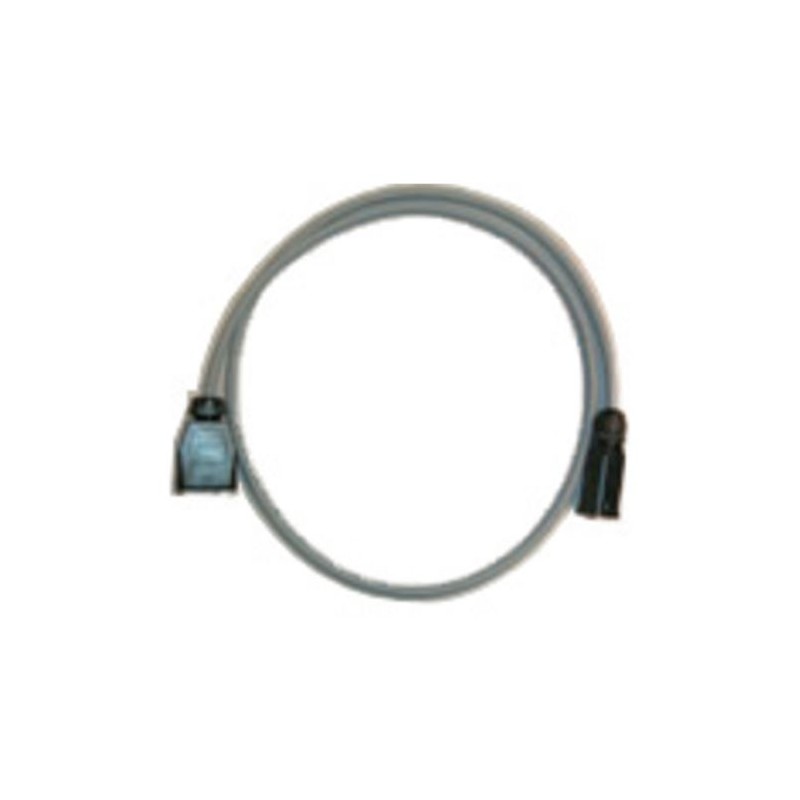

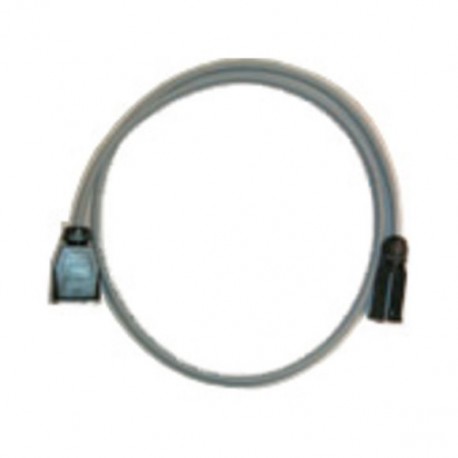

RA-C3/C1-1,5HF 290210 RA-C3-C1-1P5HF EATON ELECTRIC Power incoming cable, flat cable, L 1.5 m View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

RA-C3/C1-1,5HF 290210 RA-C3-C1-1P5HF EATON ELECTRIC Power incoming cable, flat cable, L 1.5 m

RA-C3/C1-1,5HF

290210

RA-C3-C1-1P5HF

EATON-MOELLER

Power incoming cable, flat cable, L=1.5 m

RA-C3/C1-1,5HF

More details


Batteries, chargers and power cords > Power cord

Rapid Link Starters

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Power incoming cable, flat cable, L=1.5m
For tool-less connection power adapter cable of rapid link power bus with the devices, can be plugged-in to device and flexible busbar junction

General specifications
Product name
Eaton Moeller® series Rapid Link Accessory Power adapter cable
Part no.
RA-C3/C1-1,5HF
EAN
4015082902100
Product Length/Depth
1.5 metre
Product height
50 millimetre
Product width
240 millimetre
Product weight
0.429 kilogram
Compliances
CE
Product Tradename
Rapid Link
Product Type
Accessory
Product Sub Type
Power adapter cable
Features & Functions
Color
Gray
Features
Connector system system-oriented
Oil resistant (acc. EN 60811-404)
Fitted with:
Power plug and plug for flexible busbar junction, halogen-free, 5 x 1.5 mm²
Protective conductor
Functions
For connecting the device with the 400 V AC flexible busbar junction
General information
Degree of protection
Other
Nominal current
6.6 A
Nominal voltage - min
480 V
Nominal voltage - max
480 V
Product category
Power supply
Climatic environmental conditions
Permissible ambient temperature - min
-10 °C
Permissible ambient temperature - max
55 °C
Cable
Outer diameter - approximate
10 mm
Outer sheath material
Other

Technical data ETIM 8.0

Batteries, chargers and power cords (EG000053) / Power cord (EC001576)
Electric engineering, automation, process control engineering / Cable, wire / Ready-made low-voltage line / Extension line (low-voltage line ) ([email protected] [AAB665013])
Connection 1
Other
Connection 2
Other
Connector system system-oriented
Yes
Number of cores
5
Nominal cross section conductor
1.5 mm²
Length
1.5 m
Material outer sheath
Other
Temperature resistance
-10 - 55 °C
Nominal current
6.6 A
Nominal voltage
480 - 480 V
Frequency
50 - 60 Hz
Colour outer sheath
Grey
Spiralized cable
No
With protective conductor
Yes
Degree of protection (IP)
Other
Oil resistant (according to EN 60811-404)
Yes
With cord switch
No
Outer diameter approx.
10 mm
Reaction-to-fire class according to EN 13501-6
None
Smoke development class according to EN 13501-6
None
Euro class flaming droplets/particles according to EN 13501-6
None
Euro class acidity according to EN 13501-6
None

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON STARTING CONTROLLING MOTORS EN.pdf 32 Mbytes
RA-C3/C1-1,5HF RA-C3-C1-1P5HF 290210 EN_290210.pdf 107 Kbytes RA-C3/C1-1,5HF RA-C3-C1-1P5HF 290210 EN_290210.pdf
