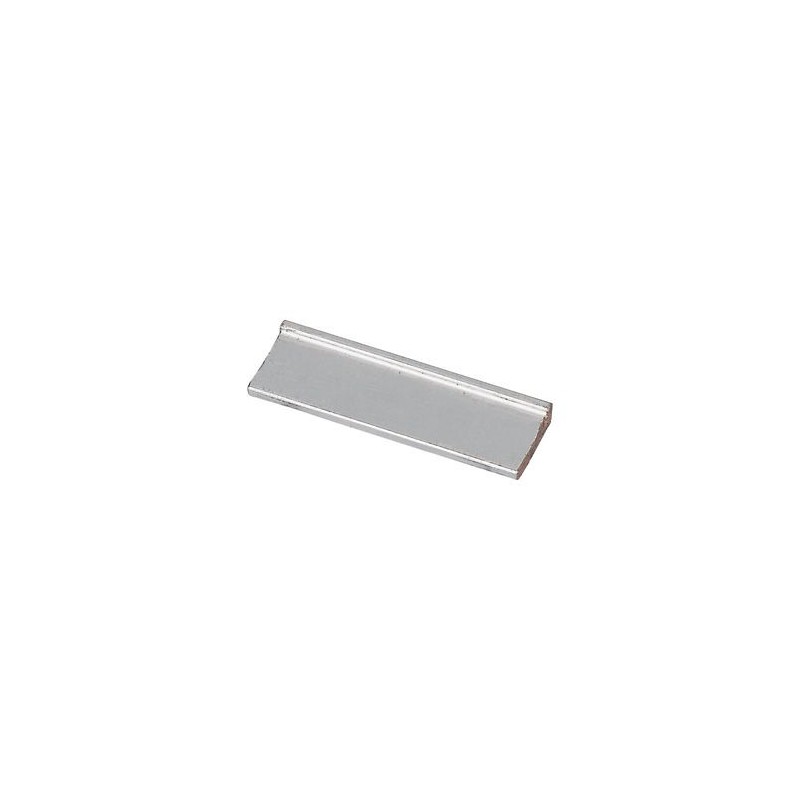

PXS24-BB/80A/12TE PXS24BB00012 EATON ELECTRIC PXS24BB00012 PXS24-BB/80A/12TE View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PXS24-BB/80A/12TE PXS24BB00012 EATON ELECTRIC PXS24BB00012 PXS24-BB/80A/12TE

PXS24-BB/80A/12TE

PXS24BB00012

PXS24BB00012

EATON-MOELLER

PXS24BB00012 PXS24-BB/80A/12TE

PXS24-BB/80A/12TE

Eaton Moeller series xEffect - PXS24 Electronic Protection Module. Busbar 12modules for PXS24 Electronic overcurrent protection for 24V DC

Reliable modular elektronic overcurrent protection for 24V DC systems, simple busbar solution, fixed or variable amperages, optionally with control input and tripped message output, plug-in terminals (+ 24V and 0V) for up to 3 loads, robust design, local and (optional) remote-controllable

More details


Low-voltage industrial components > Phase busbar

Electronic overcurrent protection

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $11.00
Unit price: $11.00
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series xEffect - PXS24 phase busbar
Catalog Number
PXS24BB00012
Model Code
PXS24-BB/80A/12TE
EAN
9010238036468
UPC
786689167400
Product Length/Depth
210 mm
Product Height
11.5 mm
Product Width
4 mm
Product Weight
0.049 kg
Compliances
RoHS conform
Certifications
EN45545-2
IEC 61373

Delivery program

Type
Automation engineering 24V
Amperage rating
80 A
Number of poles
Single-pole
Number of phases
0

Technical data - electrical

Voltage rating
24 V DC (15 V DC - 30 V DC)
Rated operational voltage (Ue) - max
30 V
Rated surge voltage
0 KV
Rated uninterrupted current (Iu)
80 A
Rated conditional short-circuit current (Iq)
0 kA
Rated short-time withstand current (Icw)
0 kA
Electric connection type
Other

Technical data - mechanical

Number of modular spacings
12
Color
Other
Mounting method
Can be snapped onto PXS24 modules
Cross section
16 mm²
Number of channels
0
Pitch dimensions
17.5 mm

Design verification as per IEC/EN 61439 - technical data

Ambient operating temperature details
-30 °C - 55 °C
Permitted storage and transport temperature - min
-40 °C
Permitted storage and transport temperature - max
100 °C

Design verification as per IEC/EN 61439

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Additional information

Functions
Automation engineering 24V
Protection
None
Suitable for
Devices with auxiliary switch
12 devices
Suitable for number of devices
12

ETIM for PXS24BB00012 Low-voltage industrial controls and switchgear (EC000215)
Feature Name Feature Value
Number of phases (EF000351) 0
Number of poles (EF001391) 1
Suitable for number of devices (EF007241) 12
Module width (EF007504) 17.5 mm
Cross section (EF000649) 16 mm²
Length (EF001438) 210 mm
Can be cut to size (EF015250) No
Width in number of modular spacings (EF002950) 12
Rated permanent current Iu (EF001389) 80 A
Type of electric connection (EF003961) Other
Insulated (EF000019) No
Rated surge voltage (EF002993) 0 kV
Conditioned rated short-circuit current Iq (EF001444) 0 kA
Max. rated operation voltage Ue (EF007357) 30 V
Rated short-time withstand current lcw (EF007050) 0 kA
Suitable for devices with N-conductor (EF007218) No
Suitable for devices with auxiliary switch (EF007217) Yes
Colour (EF000007) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
PXS24-BB/80A/12TE PXS24BB00012 PXS24BB00012 DE_PXS24ACC0001.pdf 1 Mbytes PXS24-BB/80A/12TE PXS24BB00012 PXS24BB00012 DE_PXS24ACC0001.pdf
