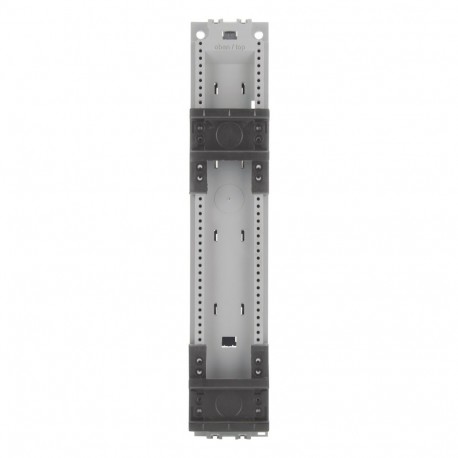

PKZM4-XC55/2 101054 Y7-101054 EATON ELECTRIC Top hat rail adapter plate, insulated material, B 55mm, for mot.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PKZM4-XC55/2 101054 Y7-101054 EATON ELECTRIC Top hat rail adapter plate, insulated material, B 55mm, for mot..

PKZM4-XC55/2

101054

Y7-101054

EATON-MOELLER

4

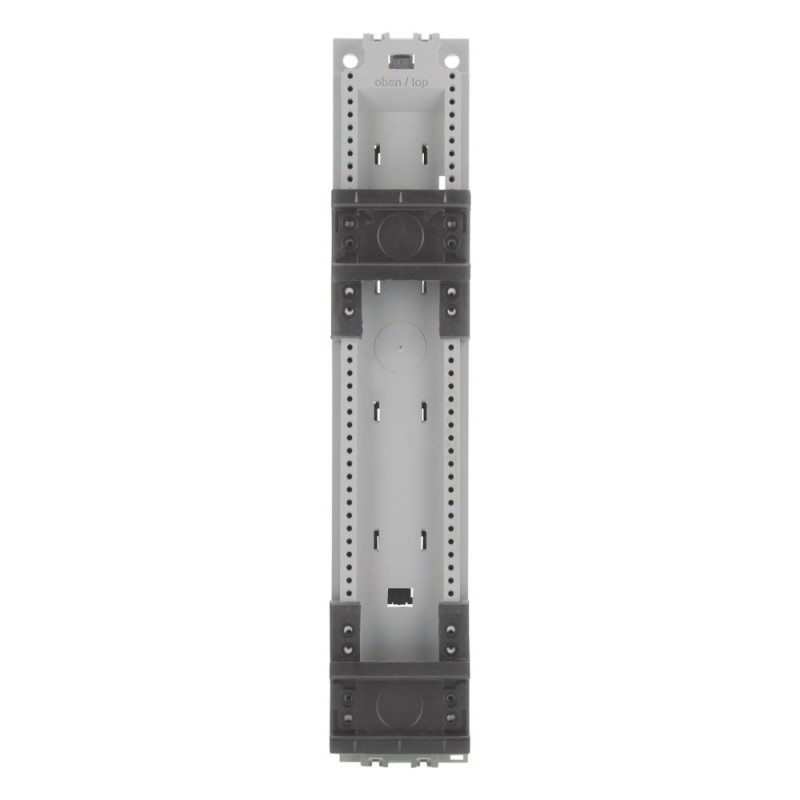

Top hat rail adapter plate, insulated material, B=55mm, for motor starter

PKZM4-XC55/2

Eaton Moeller® series PKZM4 Top hat rail adapter plate, insulated material, B=55mm, for motor starter

Top hat rail adapter plate consisting of 55 mm wide adapter plate, connection cam for additional plates, can be used for reversing and star-delta starters

More details


Low-voltage industrial components > DIN-rail adapter

Circuit Breakers PKZ

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $90.76
Unit price: $22.69
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller® series PKZM4 Accessory top hat rail adapter plate
Catalog Number
101054
Model Code
PKZM4-XC55/2
EAN
4015081009497
Product Length/Depth
30 mm
Product Height
283 mm
Product Width
54 mm
Product Weight
0.154 kg
Certifications
CSA Class No.: 3211-37
UL 508A
CSA
UL Recognized
CSA File No.: 232140
CSA-C22.2 No. 14
UL File No.: E300273
IEC60439-1
CE
UL Category Control No.: NMTR

Features & Functions

Material
Plastic

General

Product category
Accessories

Climatic environmental conditions

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 101054 Low-voltage industrial controls and switchgear (EC001024)
Feature Name Feature Value
Type of fastening (EF002442) DIN rail (top hat rail) 35 mm
Type of DIN-rail adapter (EF008236) Straight
Material (EF002169) Plastic

Datasheet - PDF

▲
Title: Size: Type:
PDF EATON SWITCHING PROTECTING MOTORS EN.pdf 35 Mbytes
PDF CATALOGUE EATON EN .pdf 38 Mbytes
