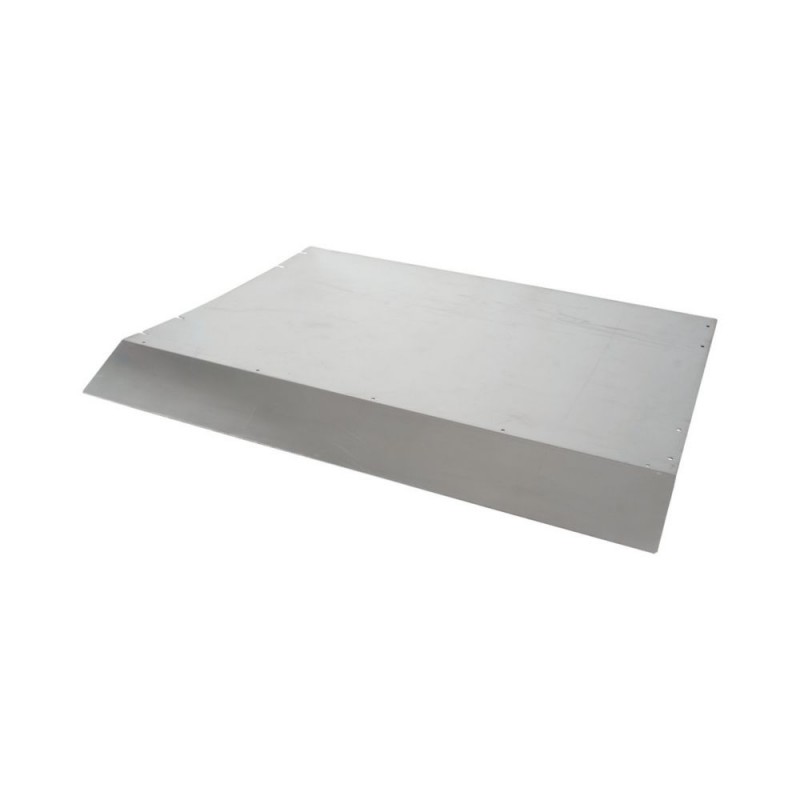

XPPBMV10 166741 Y7-166741 EATON ELECTRIC Partition, MBS-/devicearea, for W 1000mm
XPPBMV10
166741
Y7-166741
EATON-MOELLER
Partition, MBS-/devicearea, for W=1000mm
XPPBMV10
Eaton xEnergy Main LV systems LV switchgear. Partition, MBS-/devicearea, for W=1000mm
Partition for IZM/NZM4, additional partition between mounting plate and main busbar for the purpose of achieving optimum ventilation/cooling (stack effect), only for 4000-A XP sections, steel plate, width 1000 mm
Cabinet enclosures > Divider panel (switchgear cabinet)
Enclosures
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product specifications
Internal separation form 2b
Internal separation form 3b
Internal separation form 4a
Internal separation form 3a
Internal separation form 4b
| Feature Name | Feature Value |
|---|---|
| Modular spacing (EF000394) | 12.5 mm |
| Suitable for enclosure building width (EF000326) | 1000 mm |
| Suitable for enclosure building depth (EF000327) | 800 mm |
| Width (EF000008) | 902 mm |
| Height (EF000040) | 744.47 mm |
| Material (EF002169) | Aluminium |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Stainless steel |
| RAL-number (EF000116) | 0 |
| With cable entry (EF000325) | No |
| Number of height units (EF003561) | 0 |
| With lock (EF006306) | No |
| Construction type (EF000767) | Individual part |
| For internal separation form 2a (EF009586) | Yes |
| For internal separation form 2b (EF009587) | Yes |
| For internal separation form 3a (EF009588) | Yes |
| For internal separation form 3b (EF009589) | Yes |
| For internal separation form 4a (EF009590) | Yes |
| For internal separation form 4b (EF009591) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| XPPBMV10 Y7-166741 166741 EN_166741.pdf | 118 Kbytes |
|
