Type

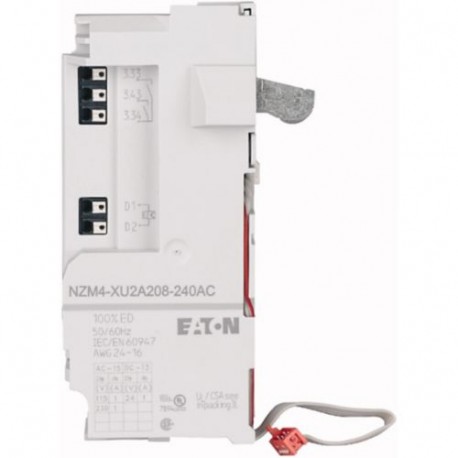

AccessoryUndervoltage releaseUndervoltage release with two relays
Special features
Instantaneous shut-off of the NZM circuit breaker when the control voltage drops below 35 - 70% UsFor use with emergency-stop devices in connection with an emergency-stop buttonFor signalizing commands or different states of the circuit-breakerTwo relays per unitThe activation criteria can be configured in the trip unitConfiguration via communication, circuit breaker display, front USB port and Eaton Power Xpert Protection ManagerWhen the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched onOnly for use with circuit-breakers with electronic tripsUnder-voltage trip relay modules cannot be installed simultaneously with make-before-break auxiliary contact NZM...-XHIV, under-voltage trip NZM...-XU... or shunt trip NZM...-XAPush-in clamp relay contacts for control wiringRelays can be used for controlling remote operator with Us=208-204 V ACCannot be used with the PXR10 NZM-AX electronic trip
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Minimum command time - max
Minimum command time - min
Number of contacts (normally open contacts)
Pick-up power consumption at AC (undervoltage release)
Pick-up power consumption at DC (undervoltage release)
Rated control supply voltage (Us) at AC, 50 Hz - max
Rated control supply voltage (Us) at AC, 50 Hz - min
Rated control supply voltage (Us) at AC, 60 Hz - max
Rated control supply voltage (Us) at AC, 60 Hz - min
Rated insulation voltage (Ui)
Strip length
8 mm (relay contact connection)
Switching capacity (reference value) - min
Rated impulse withstand voltage (Uimp)
Suitable for
Off-load switch
Motor safety switch
Drop-out voltage of undervoltage release AC/DC - max
Rated operational current
1 A (24 V AC-1, relay contacts)
1 A (230 V AC-1, relay contacts)
1 A (110 V AC-1, relay contacts)
1 A (24 V DC-1, relay contacts)
Drop-out voltage of undervoltage release AC/DC - min
Power consumption
3.6 VA (Sealing AC)
2.5 W (sealing DC)
Rated control supply voltage (Us) at DC - max
Rated control supply voltage (Us) at DC - min
Number of contacts (normally closed contacts)
Number of contacts (change-over contacts)
Undelayed short-circuit release - min
Undelayed short-circuit release - max
Terminal capacity (stranded cable)
0.25 mm² - 1.5 mm² (1x) for undervoltage release with insulated end sleeve in accordance with DIN46224 / 4
24 - 16 AWG (1x) at shunt release
0.25 mm² - 0.75 mm² (1x) for undervoltage release
0.25 mm² - 0.75 mm² (1x) for undervoltage release with uninsulated end sleeve in accordance with DIN46228 / 1
0.25 mm² - 1.5 mm² (1x) for undervoltage release
0.25 mm² - 1.5 mm² (1x) at shunt release
24 - 16 AWG (1x) for undervoltage release
Terminal capacity (solid cable)
0.2 mm² - 1.5 mm² (1x) at shunt release
0.2 mm² - 1.5 mm² (1x) for undervoltage release
Rated control voltage (relay contacts)
