> EATON - MOELLER>Circuit Breakers NZM >NZM4-XPS24DC 189824 Y7-189824 ELECTRIC NZM4-XPS24DC
ANUNCIAR
Previous Product Next Product

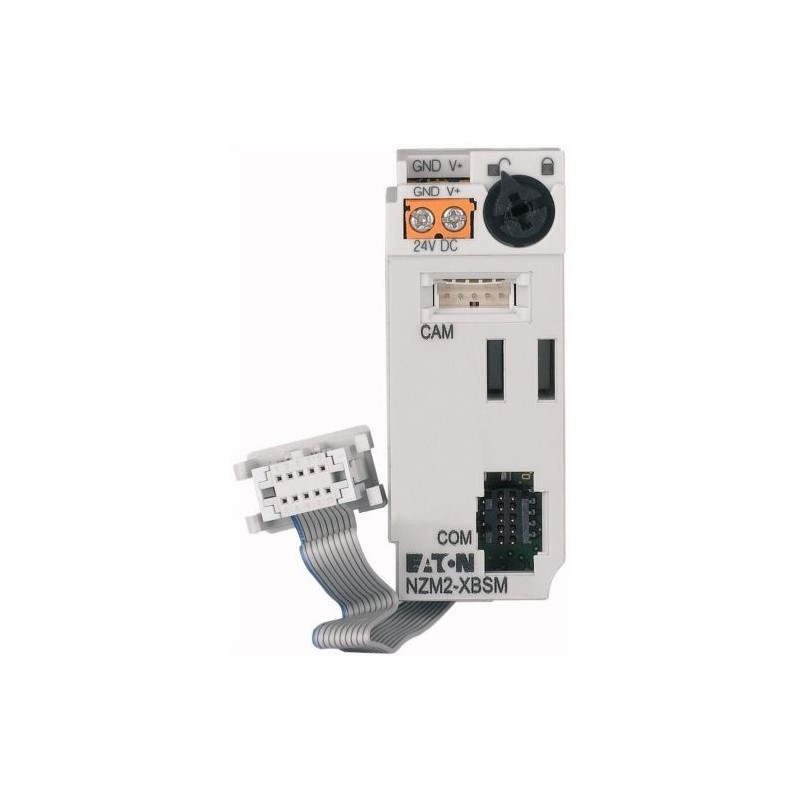

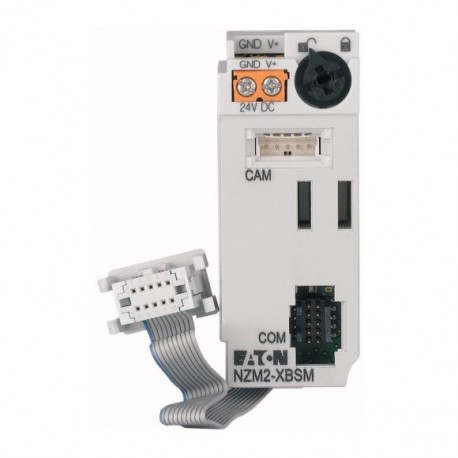

NZM4-XPS24DC 189824 Y7-189824 EATON ELECTRIC NZM4-XPS24DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM4-XPS24DC 189824 Y7-189824 EATON ELECTRIC NZM4-XPS24DC

NZM4-XPS24DC

189824

Y7-189824

EATON-MOELLER

NZM4-XPS24DC

NZM4-XPS24DC. Power supply module for NZM4, 24 VDC

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: Power supply modules - For 24 VDC power supply to the electronic trip unit. Auxiliary power supply connection for 2 x 24 V DC.

More details


Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $217.44
Unit price: $217.44
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM electronic accessory
Catalog Number
189824
Model Code
NZM4-XPS24DC
EAN
4015081878192
Product Length/Depth
52 mm
Product Height
33 mm
Product Width
22 mm
Product Weight
0.021 kg
Compliances
UL/CSA
IEC
RoHS conform

Product specifications

Used with
NZM4(-4)-VX(MX)…
Type
AccessoryPower supply module
Special features
24 V DC supply to the electronic trip.Mechanical pass-through of the switch's status (I, O) for use by the remote operator.
Voltage rating
24 V DC
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Accessory/spare part type
Power supply module
Other
Accessory
Connection type
With bolt connection
Screw terminal (supply connection, rated control voltage)
With push in terminal
Current consumption - max
100 mA
Strip length
5 mm (supply connection)
Degree of protection
Installation in the switch
Terminal capacity (stranded cable)
0.25 mm² - 0.75 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1)
0.25 mm² - 0.75 mm² (1x) at supply connection (insulated ferrule according to DIN46224 / 4)
0.2 mm² - 1.5 mm² (1x) at supply connection
24 - 16 AWG (1x) at supply connection
Terminal capacity (solid cable)
0.2 mm² - 1.5 mm² (1x) at supply connection
Tightening torque
≥ 0.22 Nm
≤ 0.25 Nm
Control voltage tolerance
+/- 20%

ETIM for 189824 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) Yes
Spare part (EF013237) No
