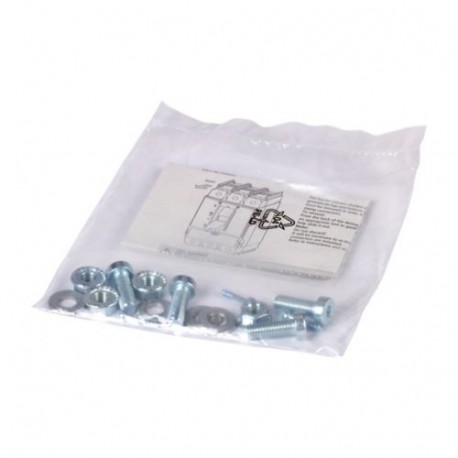

NZM4-XKS 127736 Y7-127736 EATON ELECTRIC Screw connection set, 3p, for 12-20mm, cu View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM4-XKS 127736 Y7-127736 EATON ELECTRIC Screw connection set, 3p, for 12-20mm, cu

NZM4-XKS

127736

Y7-127736

EATON-MOELLER

Screw connection set, 3p, for 12-20mm, cu

NZM4-XKS

Eaton Moeller series NZM - Molded Case Circuit Breaker. Screw connection set, 3p, for 12-20mm, cu

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: double hole fitting for M10 screws with 25 mm clearance. Use special cable lug narrow version. U e ≧ 525 V or terminal capacity > 185 mm 2: use of the NZM4(-4)-XKSA cover obligatory. Can be used for: NZM4, N(S)4

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $42.97
Unit price: $42.97
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM connection type
Catalog Number
127736
Model Code
NZM4-XKS
EAN
4015081251469
Product Length/Depth
70 mm
Product Height
60 mm
Product Width
40 mm
Product Weight
0.24 kg
Compliances
UL/CSA
IEC
RoHS conform

Product specifications

Used with
NZM4, N(S)4
Type
AccessoryScrew connectionTerminal
Special features
Two holes
Amperage Rating
1600 A
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Suitable for
Three-pole
Copper cable lugs
Number of poles
Three-pole
Terminal capacity (copper strip)
10 segments of 50 mm x 1 mm (2x)
Model
Other
Terminal capacity (stranded cable)
120 mm² - 185 mm² (1x)
50 mm² - 185 mm² (4x)
Max. 350 AWG/kcmil (4x)
250 - 350 AWG/kcmil (1x)
Terminal capacity (copper busbar)
50 mm x 10 mm (2x)

ETIM for 127736 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 3
Model (EF000010) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZM4-XKS Y7-127736 127736 EN_119860.pdf 627 Kbytes NZM4-XKS Y7-127736 127736 EN_119860.pdf
