> EATON - MOELLER>Circuit Breakers NZM >NZM4-4-XKSAV 132676 Y7-132676 ELECTRIC Cover, 4p, for connection width extension
ANUNCIAR
Previous Product Next Product

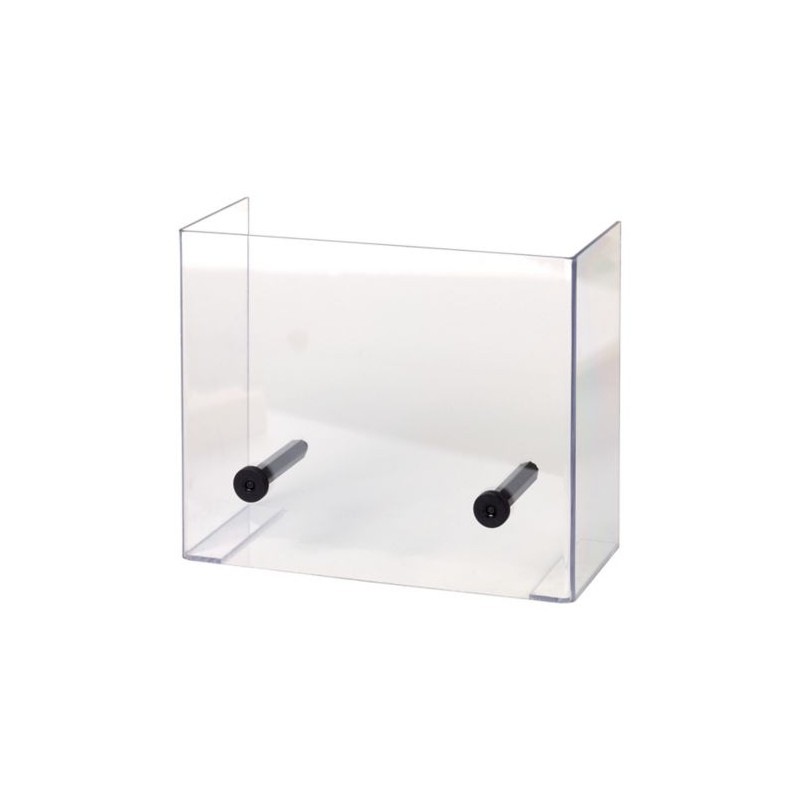

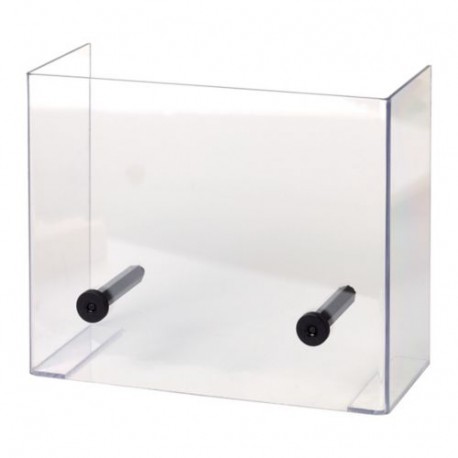

NZM4-4-XKSAV 132676 Y7-132676 EATON ELECTRIC Cover, 4p, for connection width extension View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM4-4-XKSAV 132676 Y7-132676 EATON ELECTRIC Cover, 4p, for connection width extension

NZM4-4-XKSAV

132676

Y7-132676

EATON-MOELLER

Cover, 4p, for connection width extension

NZM4-4-XKSAV

Eaton Moeller series NZM - Molded Case Circuit Breaker. Cover, 4p, for connection width extension, NZM4

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Busbar tag shroud for connecting cable lugs, busbar, flat cable terminals or tunnel terminals are used. With module plates , flat cable terminals and tunnel terminal included in a set. Front, side and rear, degree of protection IP4X, on the connection side when using insulated conductor material to IP1X . Can be used for: NZM4-4, N(S)4-4, NZM4-4-XKV95(KB)

More details


Low-voltage industrial components > Phase separation plate for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total: $197.87
Unit price: $197.87
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM connection type NA
Catalog Number
132676
Model Code
NZM4-4-XKSAV
EAN
4015081296149
Product Length/Depth
385 mm
Product Height
120 mm
Product Width
230 mm
Product Weight
0.57 kg
Compliances
IEC
RoHS conform

Product specifications

Used with
NZM4-4-XKV95(KB)
NZM4-4, N(S)4-4
Type
AccessoryTerminalTerminal cover
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM4
Number of poles
Four-pole
Phase separator type
Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
NZM4-4-XKSAV Y7-132676 132676 EN_119860.pdf 627 Kbytes NZM4-4-XKSAV Y7-132676 132676 EN_119860.pdf
