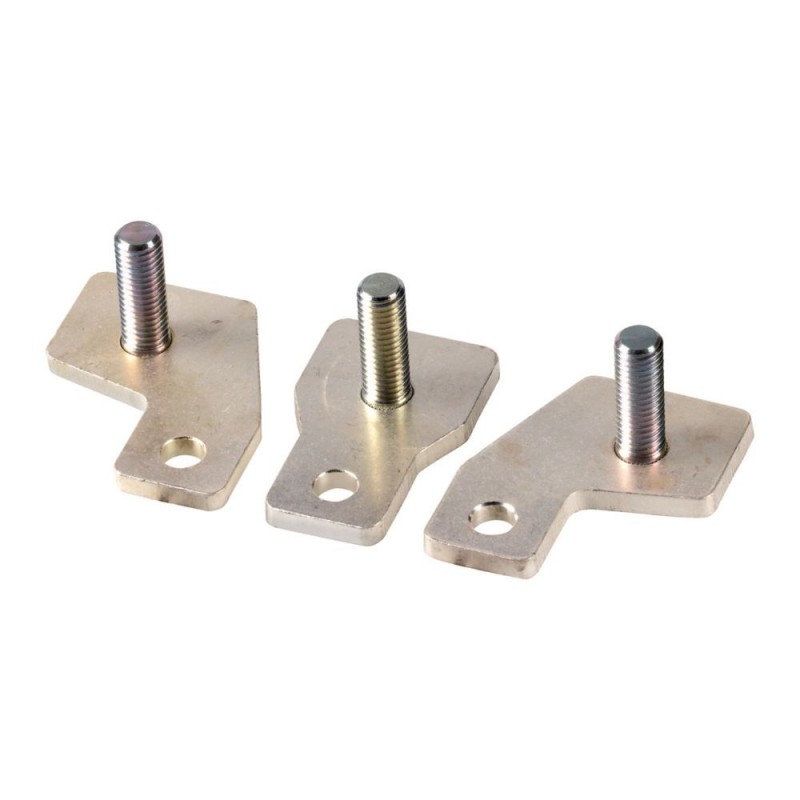

NZM3-XKV70KB 112884 EATON ELECTRIC Connection width extension, 3p, short View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM3-XKV70KB 112884 EATON ELECTRIC Connection width extension, 3p, short

NZM3-XKV70KB

112884

EATON-MOELLER

Connection width extension, 3p, short

NZM3-XKV70KB

More details


Low-voltage industrial components > Connection vane/phase spreader

Circuit Breakers NZM Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $310.96
Unit price: $310.96

Quantity Price
1+$310.96
2+$310.97
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Connection width extension, 3p, short
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 pole circuit-breakers. Threaded studs for cable lugs up to 2 x 300mm 2 Can be fitted to circuit-breaker with screw connection. Phase isolator, insulation plate and 2 control circuit terminals included as standard. can be used for: NZM3, PN3, N(S)3

General specifications
Product name
Eaton Moeller series NZM connection type
Part no.
NZM3-XKV70KB
EAN
4015081124299
Product Length/Depth
255 millimetre
Product height
36 millimetre
Product width
200 millimetre
Product weight
0.675 kilogram
Compliances
UL/CSA
IEC
RoHS conform
Certifications
Request filed for UL and CSA
CE marking
IEC60947
CSA-C22.2 No. 5-09
UL489
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Connection type
Delivery program
Type
AccessoryConnection width extensionTerminal
Number of poles
Three-pole
Amperage Rating
630 A
Special features
One M12 threaded stud
Frame
NZM3
Suitable for
Copper cable lugs
Three-pole
Used with
NZM3, PN3, N(S)3
Technical Data - Mechanical
Special features
One M12 threaded stud
Technical Data - Mechanical - Terminals
Terminal capacity (flexible cable)
500 AWG/kcmil (2x)
95 mm² - 300 mm² (2x)
Terminal capacity (copper busbar)
10 mm x 40 mm (2x)
Terminal capacity (copper strip)
10 segments of 32 mm x 1 mm (2x)
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Connection vane/phase spreader (EC002019)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Connection vane/phase spreader (ecl@ss13-27-37-13-05 [ACN990017])
Suitable for number of poles
3

Datasheet - PDF

▲
Title: Size: Type:
NZM3-XKV70KB 112884 EN_112884.pdf 109 Kbytes NZM3-XKV70KB 112884 EN_112884.pdf
