Type

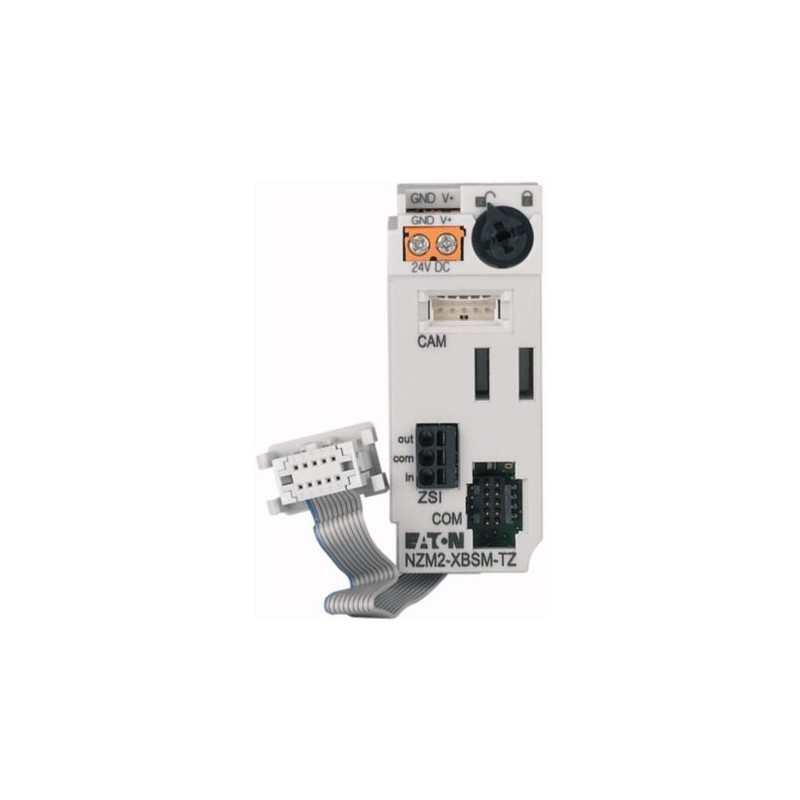

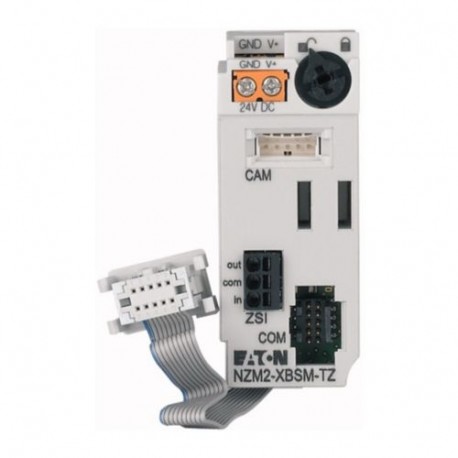

AccessoryInterface module
Special features
For universal connection of optional circuit breaker functions.Required for communicationThe connection types depend on the design of the interface module.Circuit breaker status detection (I, +, 0) for the electronic trip unit.The switch's status can be communicated.24 V DC auxiliary power connection.Connection for Communications Adapter Module (CAM).Optional CAM available for various Fieldbus communication systems (Profibus DP, SmartWire-DT, Ethernet-based Fieldbus).Connection to optional, internal Modbus RTU module.Connector for Logical Zone Selectivity (ZSI) function.Connection for maintenance mode (ARMS)Mechanical pass-through of the switch's status (I, O) for use by the remote operator.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Accessory/spare part type
Communication and measuring function
Interface module
Accessory
Connection type
With push in terminal
10-pin plug connector (internal COM connection)
Pre-wired cable to the Modbus module (internal COM connection)
5-pin plug connector (CAM connection)
Assembled CAM cable (Supply connection, Digital-input)
Push-in (Logical Zone Selectivity (ZSI) connection)
Screw terminal (supply connection, rated control voltage)
Cable (connection for maintenance mode (ARMS), digital output)
Cable (Logical Zone Selectivity (ZSI) connection, connection technique)
With bolt connection
Current consumption - max
Strip length
5 mm (supply connection), 6 mm (digital input), 6 mm (relay output)
Output voltage
3.3 V DC (connection for maintenance mode (ARMS), digital output)
Degree of protection
Installation in the switch
Number of maintenance connections
Terminal capacity (stranded cable)
0.2 mm² - 0.5 mm² (1x) at digital input of supply connection
0.2 mm² - 1.5 mm² (1x) at supply connection
0.25 mm² - 0.5 mm² (1x) at connection for maintenance mode with uninsulated ferrules according to DIN46228 / 1
0.25 mm² - 0.75 mm² (1x) at supply connection (insulated ferrule according to DIN46224 / 4)
0.2 mm² - 0.5 mm² (1x) at relay output of supply connection
0.25 mm² - 0.75 mm² (1x) at supply connection (uninsulated ferrule according to DIN46224 / 1)
0.25 mm² - 0.5 mm² (1x) at logical zone selectivity connection with uninsulated ferrule according to DIN46228 / 1
24 - 16 AWG (1x) at supply connection
Overload proof of digital semi-conductor outputs
Yes (Connection for maintenance mode (ARMS))
Terminal capacity (solid cable)
0.2 mm² - 0.5 mm² (1x) at logical zone selectivity (ZSI) connection
0.2 mm² - 0.5 mm² (1x) at relay outputs of supply connection
0.2 mm² - 1.5 mm² (1x) at supply connection
Control voltage tolerance
