> EATON - MOELLER>Circuit Breakers NZM Accessories >NZM3-4-XKVI1P-K 168598 ELECTRIC Link kit, +insulating plates +heat sinks, 4p, /1p
Previous Product Next Product

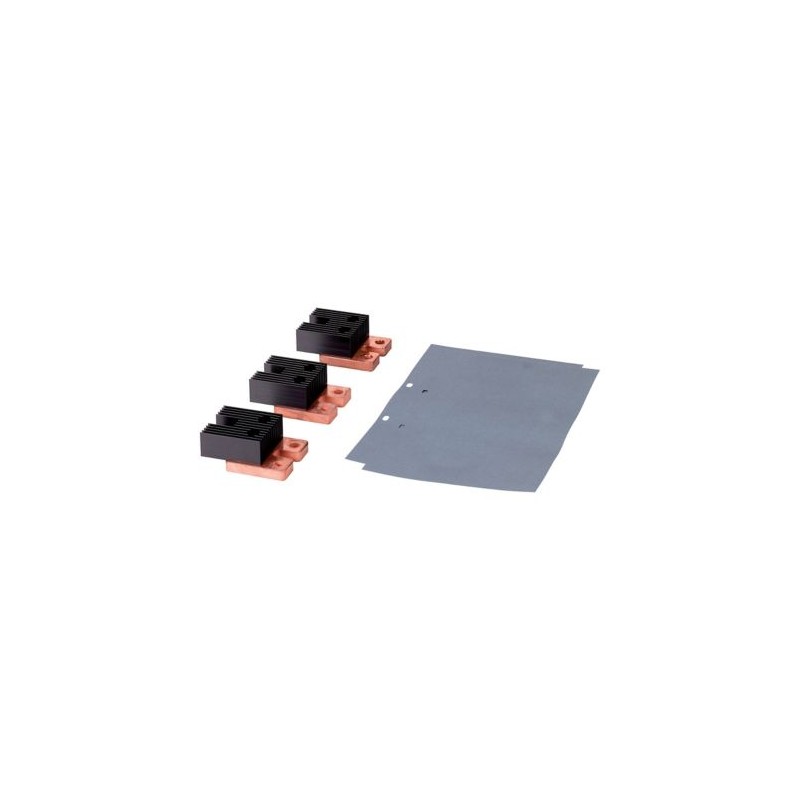

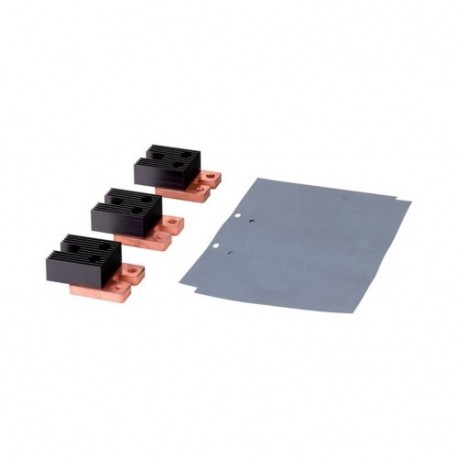

NZM3-4-XKVI1P-K 168598 EATON ELECTRIC Link kit, +insulating plates +heat sinks, 4p, /1p View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NZM3-4-XKVI1P-K 168598 EATON ELECTRIC Link kit, +insulating plates +heat sinks, 4p, /1p

NZM3-4-XKVI1P-K

168598

EATON-MOELLER

Link kit, +insulating plates +heat sinks, 4p, /1p

NZM3-4-XKVI1P-K

Eaton Moeller series NZM - Molded Case Circuit Breaker. Link kit, +insulating plates +heat sinks, 4p, /1p, 3

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM Accessories

* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

Total price: $451.38
Unit price: $451.38

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


General specifications

Product Name
Eaton Moeller series NZM link kit
Catalog Number
168598
Model Code
NZM3-4-XKVI1P-K
EAN
4015081650859
Product Length/Depth
215 mm
Product Height
154 mm
Product Width
112 mm
Product Weight
2.06 kg
Compliances
IEC
RoHS conform

Product specifications

Type
AccessoryDC link kitTerminal
Special features
Jumper kit with insulating plates, phase isolators IP00 and heat sinks
Amperage Rating
534 A (40 °C), 451 A (65 °C)
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Frame
NZM3
Used with
N3-4-…-S1(-S15)-DC
Suitable for
Four-pole
Number of poles
Single-pole
Model
Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN.pdf 51 Mbytes
NZM3-4-XKVI1P-K NZM3-4-XKVI1P-K 168598 ES_170118.pdf 4 Mbytes NZM3-4-XKVI1P-K NZM3-4-XKVI1P-K 168598 ES_170118.pdf
