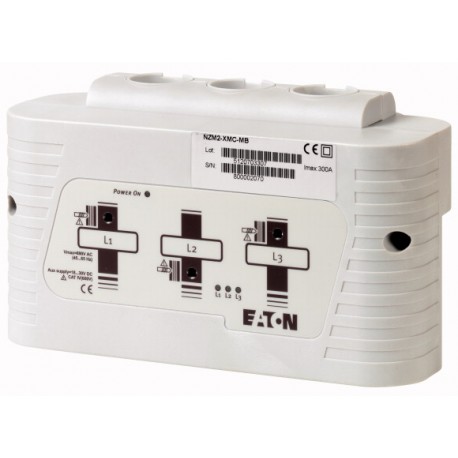

NZM2-XMC-MB 129961 EATON ELECTRIC Module communication and measurement, 300A, 3P
NZM2-XMC-MB
129961
EATON-MOELLER
Module communication and measurement, 300A, 3P
Optional accessories for circuit-breaker series NZM offers a comprehensive portfolio of application possibilities for worldwide use. Modular functional groups make mounting flexible and simple. Notes: for measuring current, voltage, power and energy. The module has three built-in current transformers and three voltage taps, which are contacted with self-tapping screws, which make contact by penetrating the cable insulation. Power supply 24 VDC, 2 SO pulse outputs, modbus interface (Slave). The total energy consumption value is permanently stored in the module. Display device NZM-XMC-DISP can be connected for local indication of the readings . Can be extended with up to two add-on modules +NZM-XMC. Can be expanded with up to two add-on modules +NZM-XMC-.. Can be used for: NZM 2 ≦ 300A
PLC's > Fieldbus, decentr. periphery - communication module
Circuit Breakers NZM Accessories
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Supply voltage AC 50 Hz (EF007532) | 0 V |
| Supply voltage AC 60 Hz (EF007533) | 0 V |
| Supply voltage DC (EF007534) | 24 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard eGPRS (EF009703) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard LTE (EF009709) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | Yes |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting/direct mounting (EF007020) | Yes |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Certified for UL hazardous location class I (EF017622) | No |
| Certified for UL hazardous location class II (EF017625) | No |
| Certified for UL hazardous location class III (EF017627) | No |
| Certified for UL hazardous location division 1 (EF017628) | No |
| Certified for UL hazardous location division 2 (EF017629) | No |
| Certified for UL hazardous location group A (acetylene) (EF017632) | No |
| Certified for UL hazardous location group B (hydrogen) (EF017633) | No |
| Certified for UL hazardous location group C (ethylene) (EF017635) | No |
| Certified for UL hazardous location group D (propane) (EF017636) | No |
| Certified for UL hazardous location group E (metal dusts) (EF017637) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) (EF017638) | No |
| Certified for UL hazardous location group G (non-conductive dusts) (EF017639) | No |
| Width (EF000008) | 132 mm |
| Height (EF000040) | 91 mm |
| Depth (EF000049) | 209 mm |
