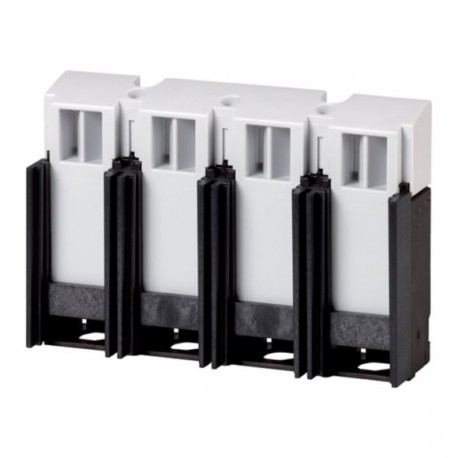

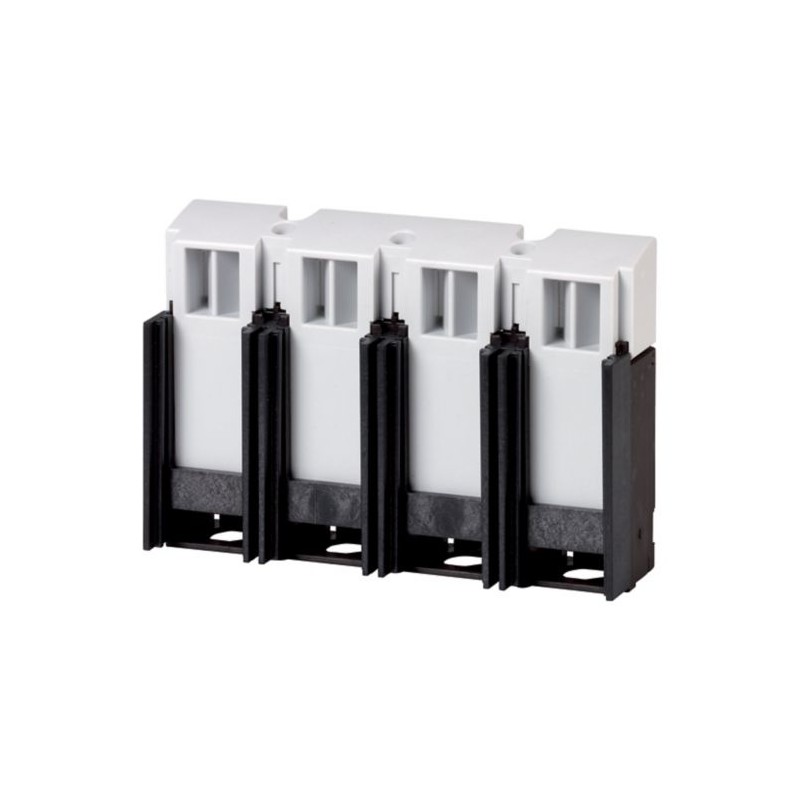

+NZM2-4-XKR4U

118906

Y7-118906

EATON-MOELLER

Connection block for component adapters bottom 4p, size 2. Can only be sold assembled.

+NZM2-4-XKR4U

Connection block for component adapters bottom 4p, size 2

Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. and part no. suffix include parts for one switch side at top or bottom (with NZM3 top only). Required with component adapter and switch with connection on rear. Can be used for NZM2-4, PN2-4, N(S)2-4

More details


Low-voltage industrial components > Wiring set for power circuit breaker

Circuit Breakers NZM

Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Connection block for component adapters bottom 4p, size 2
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. and part no. suffix include parts for one switch side at top or bottom (with NZM3 top only). Required with component adapter and switch with connection on rear. Can be used for NZM2-4, PN2-4, N(S)2-4

General specifications
Product name
Eaton Moeller series NZM multi-function device adapter
Part no.
+NZM2-4-XKR4U
EAN
4015081171057
Product Length/Depth
136 millimetre
Product height
35 millimetre
Product width
93 millimetre
Product weight
0.2 kilogram
Compliances
IEC
RoHS conform
Certifications
Specially designed for North America
CSA (File No. 22086)
IEC60947-2
CSA (Class No. 1432-01)
UL489
UL (Category Control Number DIVQ)
UL (File No. E31593)
UL listed
CE marking
CSA-C22.2 No. 5-09
CSA certified
Product Tradename
NZM
Product Type
Accessories
Product Sub Type
Multi-function device adapter
Delivery program
Type
60 mm systemAccessoryAccessory, multifunction component adapterConnection blockConnection block for component adapter
Number of poles
Four-pole
Amperage Rating
250 A
Special features
Current limiting circuit breakerFor NZM2 component adapter, connection on bottom
Frame
NZM2
Suitable for
Four-pole
Used with
Feeder circuits, branch circuits
NZM2-4
PN2-4
N(S)2-4
Technical Data - Electrical
Voltage rating (UL CSA 13)
Max. 480 Y / 277 V
Technical Data - Mechanical
Mounting position
Fitted at the bottom
Degree of protection
IP20
Special features
Current limiting circuit breakerFor NZM2 component adapter, connection on bottom
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Model
Other

Technical data ETIM 9.0

Low-voltage industrial components (EG000017) / Wiring set for power circuit breaker (EC002050)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Circuit breaker (LV < 1 kV) / Wiring set for circuit breaker (ecl@ss13-27-37-04-24 [ACN957016])
Suitable for number of poles
4
Model
Other

ETIM for 118906 Low-voltage industrial controls and switchgear (EC002050)
Feature Name Feature Value
Suitable for number of poles (EF001589) 4
Model (EF000010) Other

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE EATON EN .pdf 38 Mbytes
+NZM2-4-XKR4U Y7-118906 118906 EN_118906.pdf 111 Kbytes +NZM2-4-XKR4U Y7-118906 118906 EN_118906.pdf
