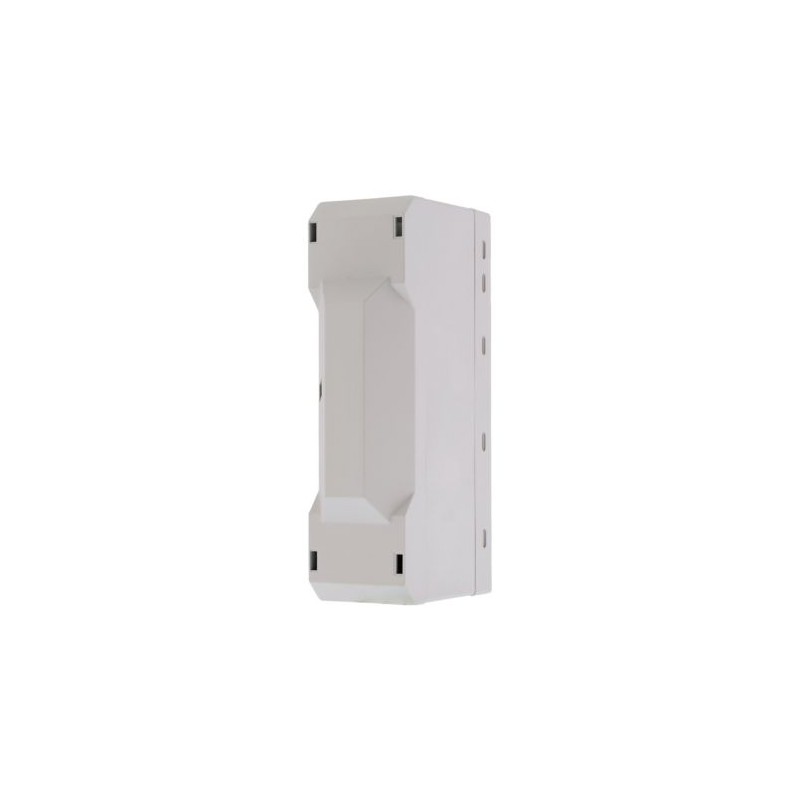

MSFI-125A 198258 Y7-198258 EATON ELECTRIC Feeder Module 3 poles 6-35mm 125 A
MSFI-125A
198258
Y7-198258
EATON-MOELLER
Feeder Module; 3 poles; 6-35mm; 125 A
MSFI-125A
Eaton Moeller® series MSF Incomer module, 3 pole, 6 - 35 (50) qmm, 125 A
Feeder module, range: accessories, material: halogen-free, self-extinguishing in accordance with UL 94, creepage resistance: CTI 600, temperature resistance: up to 125°C, terminal type: box terminal, width: 45 mm, poles: 3, rated operational current: Ie= 125 A, conductor: 6–35(50) mm², AWG 10–1
Low-voltage industrial components > Busbar terminal
Circuit Breakers PKZ
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
Features & Functions
General
Other
Ambient conditions, mechanical
Electrical rating
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 0 mm |
| Busbar width (EF007219) | 0 mm |
| Suitable for (EF000073) | Other |
| Width clamp (EF007092) | 45 mm |
| Max. conductor cross section (EF004969) | 50 mm² |
| Max. rated operation current Ie (EF007356) | 125 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON SWITCHING PROTECTING MOTORS EN.pdf | 35 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| MSFI-125A Y7-198258 198258 ES_198258.pdf | 2 Mbytes |
|
