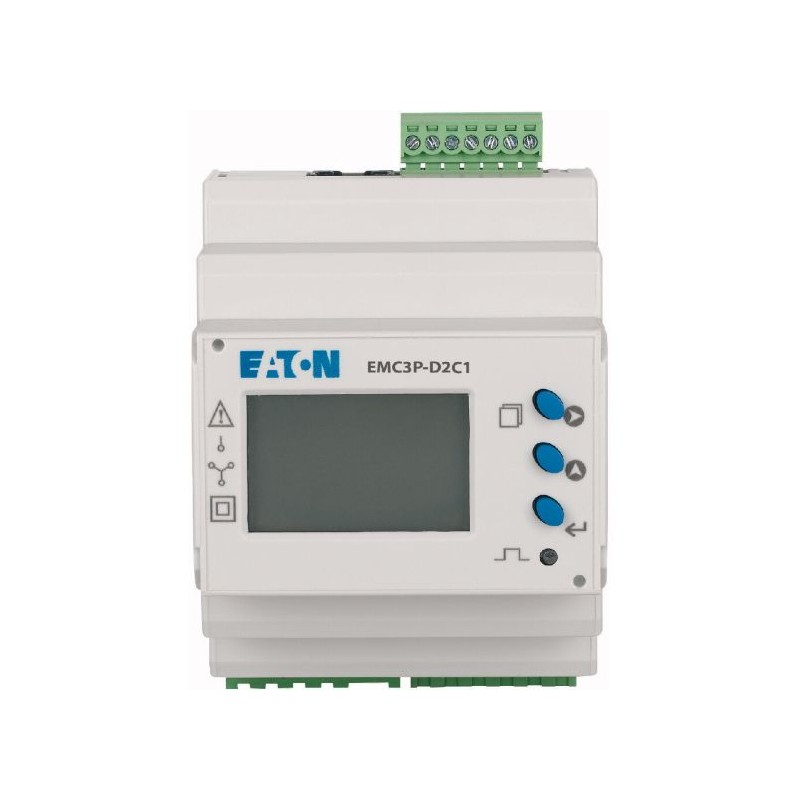

EMC3P-D2C1 Meter, 3P, DIN, ModB, 5A CT, MID EATON ELECTRIC EMC3P-D2C1
EMC3P-D2C1
Meter, 3P, DIN, ModB, 5A CT, MID
EATON-MOELLER
EMC3P-D2C1
Eaton Distribution parts. Multifunction Energy Meter - MID Certified
Modular Switchgear – Others and Accessories
* Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲General specifications
Product Name
Eaton Distribution parts
Catalog Number
EMC3P-D2C1
Model Code
EMC3P-D2C1
EAN
9010238044272
Product Length/Depth
66.3 mm
Product Height
90 mm
Product Width
70 mm
Product Weight
0.21 kg
Compliances
Measuring Instruments Directive
RoHS conform
RoHS conform
Product specifications
Fitted with:
Lock code
Indicator type
Digital
Accuracy class
A
Current (lmax) - max
6000 A
Frequency rating - max
63 Hz
Frequency rating - min
47 Hz
Nominal current
6000 A
Nominal voltage Un (L-L) - max
400 V
Nominal voltage Un (L-L) - min
400 V
Number of positions total (counter)
18
Model
Measurement transformer
Degree of protection
IP51
Nominal voltage Un (N-L) - max
230 V
Nominal voltage Un (N-L) - min
230 V
Width in number of modular spacings
4
Mounting method
DRA (DIN-rail adapter)
Energy type
Effective power and blind power
Meter type
Electronic
Interface type
Modbus
Pole type
Three conductor/four conductor
Suitable for
Purchase/supply
Pulse output
Electrical
Pulse rate - max
0 Imp/kWh (kvarh)
Pulse rate - min
0 Imp/kWh (kvarh)
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON XEFFECT SWITCHGEAR RANGE EN.pdf | 8 Mbytes |
|
| PDF CATALOGUE EATON EN.pdf | 51 Mbytes |
|
| EMC3P-D2C1 Meter, 3P, DIN, ModB, 5A CT, MID EMC3P-D2C1 EN_EMC3P-D2C1.pdf | 108 Kbytes |
|
