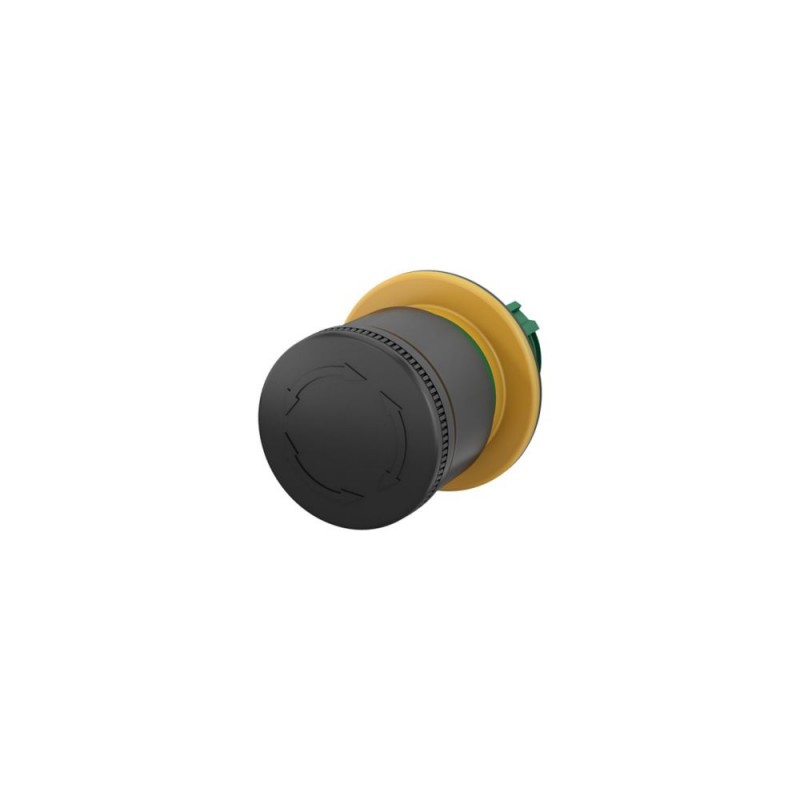

M30S-PVT30 197548 EATON ELECTRIC Minipulsador Parada Turning interlocking
M30S-PVT30
197548
EATON-MOELLER
Minipulsador Parada; Turning interlocking
HALT/STOP-Button, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 30 mm, Illumination: Non-illuminated, Turn-to-release function, Color Mushroom head: Black, Color Base: yellow, Color RAL Value: RAL 9005, Degree of Protection: IP65, IP66, IP69, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 35, Standards: EN 50581:2012, EN 60947-5-1:2017, EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017, EN ISO 13850:2015, 2006/42/EC Machinery Directive
Low-voltage industrial components > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Best sellers
▲More info
▲| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Black |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 30 mm |
| Hole diameter (EF000079) | 30.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Degree of protection (IP) (EF005474) | IP65 |
| Degree of protection (NEMA) (EF011959) | 4X |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | No |
| Unlocking method (EF001403) | Turn-release |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
