M30C-FWS3-MS2 197929 Y7-197929 EATON ELECTRIC M30C-FWS3-MS2
M30C-FWS3-MS2
197929
Y7-197929
EATON-MOELLER
M30C-FWS3-MS2

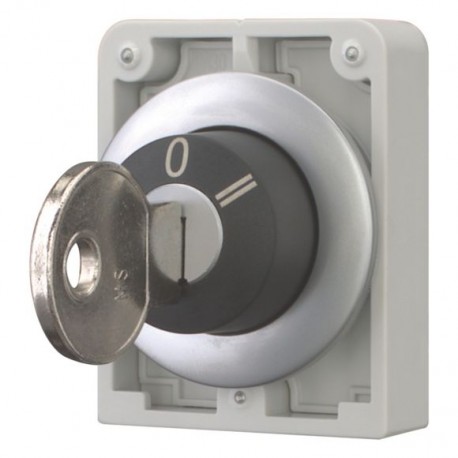

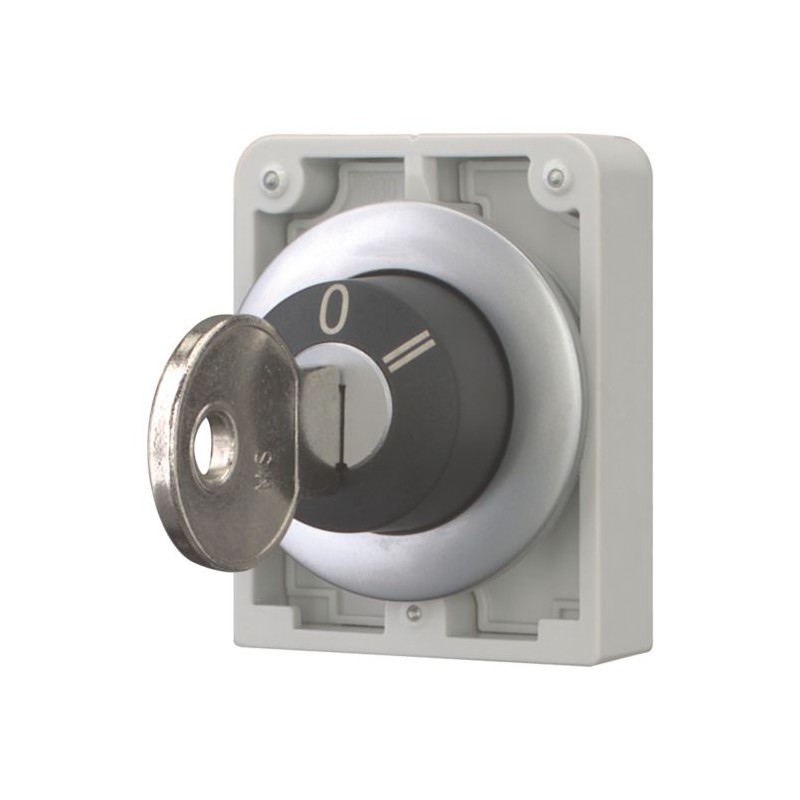

Eaton Moeller® series M30 Key-operated actuator, Flat Front, momentary, MS2, 3 positions 0, Metal bezel, Suitable for master key systems
Key-operated actuator, Flat Front, momentary, MS2, 3 positions 0, Metal bezel, Suitable for master key systems
Low-voltage industrial components > Front element for selector switch
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
| Product Name | Eaton Moeller® series M30 key-operated actuator |
| Catalog Number | 197929 |
| Model Code | M30C-FWS3-MS2 |
| EAN | 4015081955602 |
| Product Length/Depth | 36 mm |
| Product Height | 67 mm |
| Product Width | 46 mm |
| Product Weight | 0.06 kg |
| Compliances | CE |
Product specifications
| Actuator color | Other |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Pollution degree | 3 |
| Actuator type | Key |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 30.5 mm |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Bezel color | Titanium |
| Bezel material | Other |
| Overvoltage category | III |
| Degree of protection | NEMA Other |
| Degree of protection (front side) | IP65 |
| Indicator color | Other |
| Lens type | Round |
| Lifespan, mechanical | 100,000 Operations |
| Number of switch positions | 0 |
| Size | Front dimensions: Ø 36 mm |
| Feature Name | Feature Value |
|---|---|
| Number of switch positions (EF000231) | 0 |
| Type of control element (EF006976) | Key |
| Suitable for lighting (EF001142) | No |
| Colour control element (EF007167) | Other |
| Colour indicator light cap (EF007165) | Other |
| Construction type lens (EF006253) | Round |
| Hole diameter (EF000079) | 30.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Switching function latching (EF007447) | No |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
