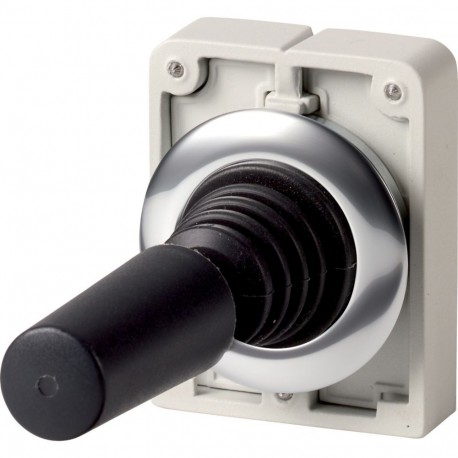

M30C-FWRJS2V 187065 Y7-187065 EATON ELECTRIC Joystick, flat front, maintained, vertical, metal shaft
M30C-FWRJS2V
187065
Y7-187065
EATON-MOELLER
Joystick, flat front, maintained, vertical, metal shaft
M30C-FWRJS2V
Eaton Moeller® series M30 Joystick, RMQ-Titan, vertically momentary, with metal shaft, 2 positions, Metal bezel
Joystick, Product range: RMQ-Titan, Single unit, Description: with one operating point per operating direction, with metal shaft, 2 positions, Degree of Protection: IP66, Metal bezel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36 mm, Function: maintained, Vertical, Standards: IEC/EN 60947, VDE 0660
Low-voltage industrial components > Control switch, Joystick
Auxiliary Control and Signalling Elements
Brand new product in its original packaging covered by the warranties and certifications provided by EATON-MOELLER
Related products
▲Best sellers
▲More info
▲General specifications
IEC/EN 60947
| Feature Name | Feature Value |
|---|---|
| Rated operation current Ie at AC-21, 400 V (EF002417) | 0 A |
| Centre mounting, hole diameter (EF002424) | 30 mm |
| Joy stick length (EF006524) | 66 mm |
| Number of actuation directions (EF002425) | 2 |
| Number of switch positions (EF000231) | 1 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| With retraction in 0-position (EF002428) | No |
| Locking in 0-position (EF006283) | No |
| Coder (EF005666) | No |
| Analogue output signal configurable (EF003236) | No |
| With front ring (EF006014) | Yes |
| Material front ring (EF005972) | Metal |
| Colour front ring (EF002429) | Chrome |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF EATON COMMAND INDICATION EN.pdf | 24 Mbytes |
|
| PDF CATALOGUE EATON EN .pdf | 38 Mbytes |
|
| M30C-FWRJS2V Y7-187065 187065 ES_182922.pdf | 3 Mbytes |
|
